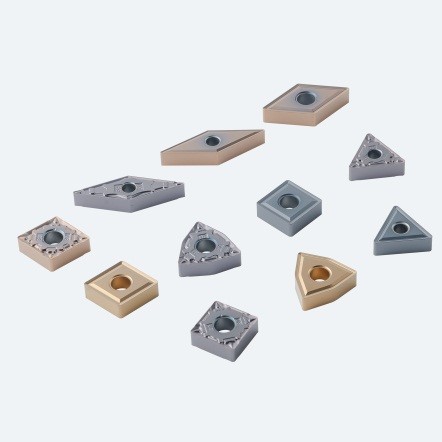

Negative S series inserts for stainless steel
S series are suitable for stainless steel processing, including SF and SM.
 |
- Feature
- Application
- Application case
Product features
 |
 |
SF- finishing
SF for finishing of stainless steel. Sharp edge due to results in low cutting forces particularly for thin wall structures and extended shafts. |
 |
 |

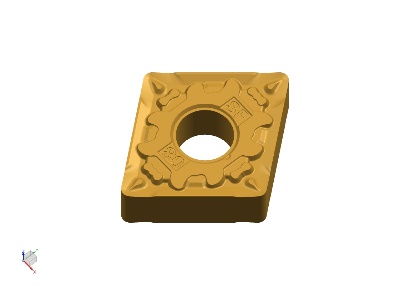

SM- semi-finishing – roughing cutting action
SM for medium cutting of stainless steel and mild steel. Sharp cutting edge. |
Matching grades
6 grades, covering the common working conditions of stainless steel processing
GM1115、GM1230、GM3215、GM3325、GM3220、GM3225、

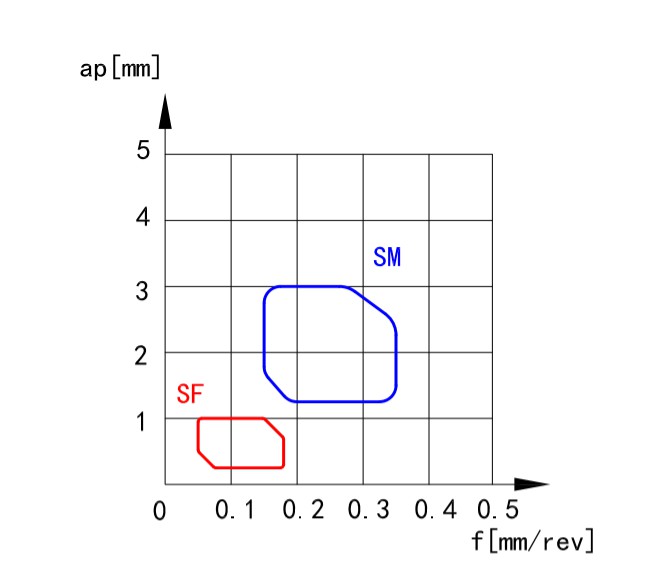

processing scope
Geometry SF is suitable for the processing of stainless steel and heat resistance super alloy (HRSA).
Geometry SM is suitable for medium cutting of stainless steel and mild steel.

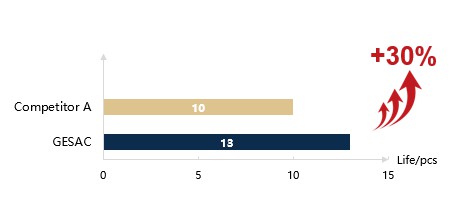

Stainless steel turning insert machining case (flange)
| Insert | CNMG120408-SM |
| Grade | GM3225 |
| Material | 304 |
| Speed | Vc=220m/min |
| Feed | fr =0.15mm/r |
| Depth | ap=2.5mm |
| Cooling | Water base emulsion |
| Machining type | Roughing of cylindrical end faces |
