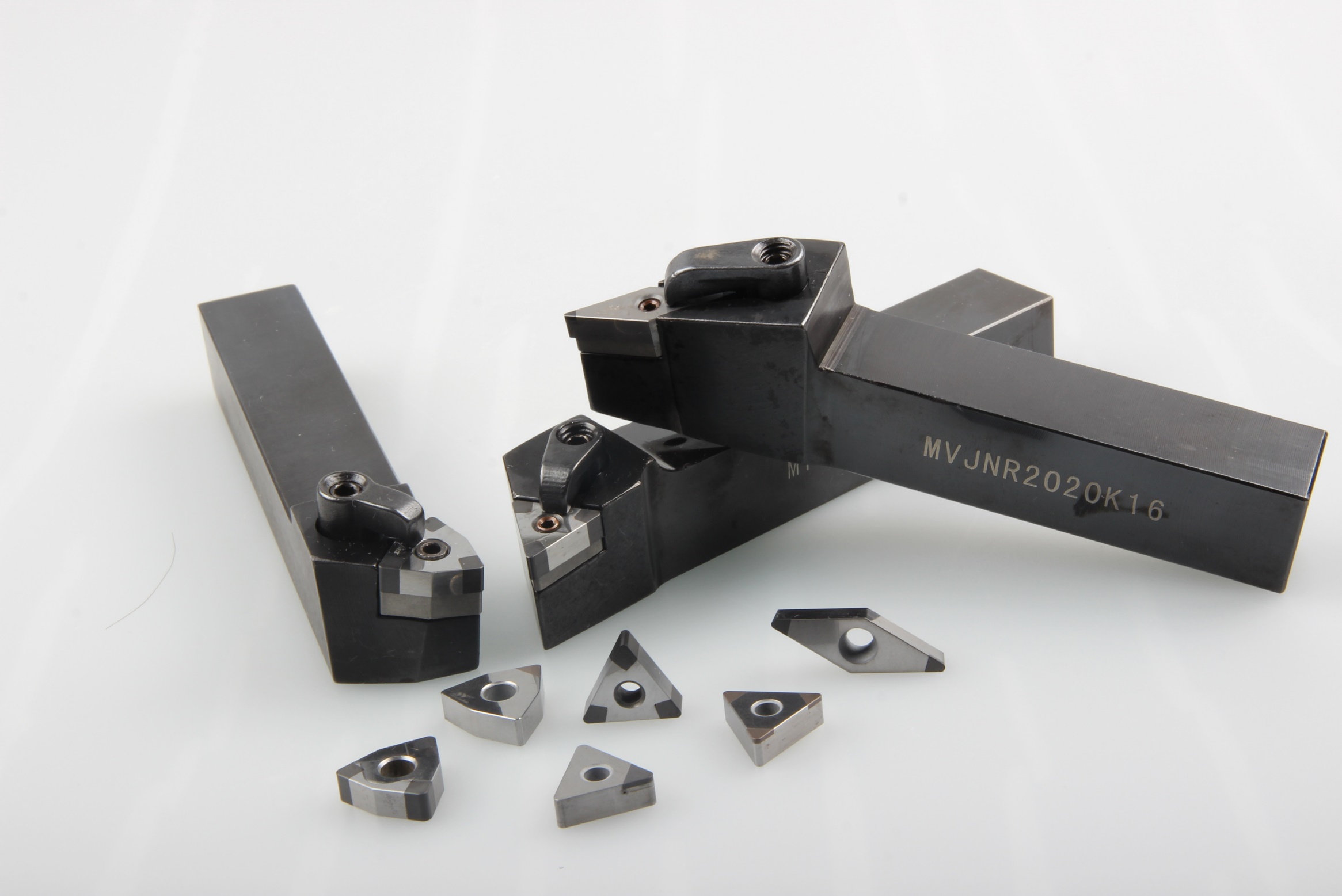

Solid welding YZ-flat
With firm welding stability, double-sided usage, and high economy.
 |
 |
- Feature
- Application
- Application case
 |
A column grade of new generation
With better stability, higher service life and a wider range of applications High toughness cemented carbide substrate It has excellent impact resistance in semi-finishing and rough machining Fully automatic vacuum welding process With strong welding stability Column-type welding structure Available on both sides, more economical |
1. Suitable for semi precision machining and rough machining;
2. Processing materials: quenched steel (>50HRC ), cast iron materials;
3. Mainly used in the automotive industry, general machinery industry, etc., typical processed components include air conditioning compressor parts, gears, bearings, etc.

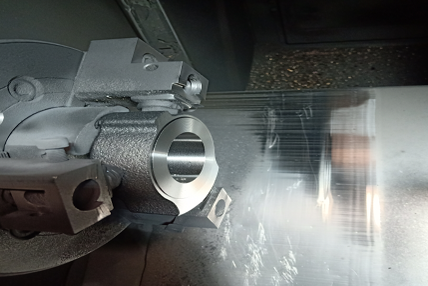

Pillar type（YZ-flat）processing cases
——Air conditioning compressor cylinder processing
| Specification | WNGA080408M-6 |
| Grade | BKN225Z |
| Materials | HT250（HB200) |

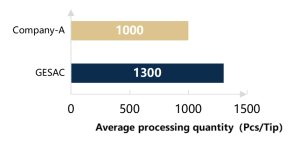

| Cutting Speed | Brand-A：352m/min
GESAC：450m/min |
| Feed rate | fr =0.3mm/r |
| cutting depth | ap=0.3-0.5mm |
| Cooling method | Water-based emulsion ，External cooling |
| Cutting method | End face （D50.5~86）
Light intermittent |
