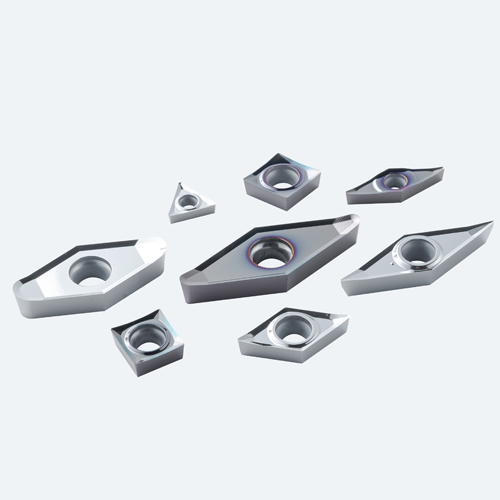

Positive N seriesinserts for non-ferrous metal
N series inserts are suitable for nonferrous metal processing, including AL series.
 |
- Feature
- Application
- Application case
Product features
 |
 |
AL
AL for aluminum alloy cutting. Large rake angle, cutting edge sharpness. |
Matching grades
4 coating grades to cover the most common applications in non-ferrous metal processing.
GN9110、GN9120、GN9130、GNT7120、

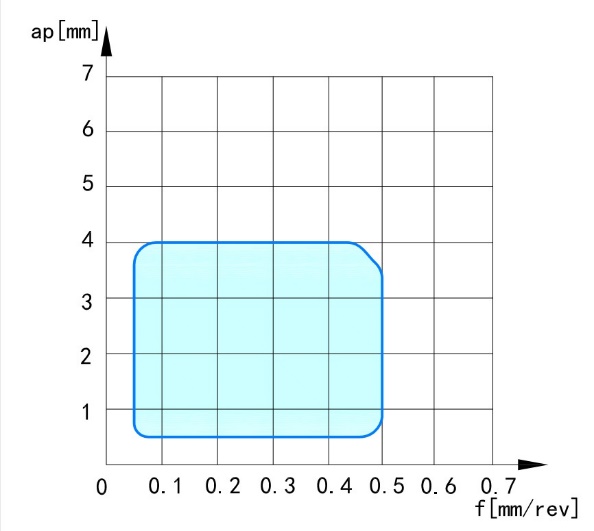

processing scope
Geometry AL is suitable for aluminum alloy cutting.

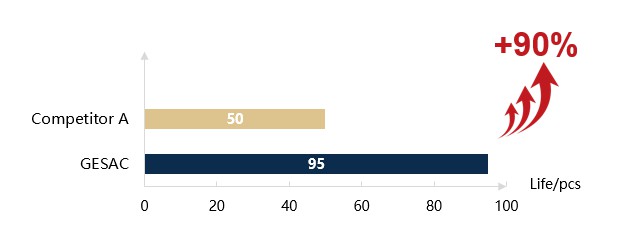

Example of non-ferrous metal turning insert machining (tooth ring)
| Insert | DCGX11T304-AL |
| Grade | GN9120 |
| Material | Copper alloy |
| Speed | Vc=234~271m/min |
| Feed | fr =0.12mm/r |
| Depth | ap=0.1mm |
| Cooling | Water base emulsion |
| Machining type | Strong interrupted turning of end faces |
