Railway industry turning inserts
Turning inserts for rail transit industry include train wheel new insert RCMX and train wheel repair insert LNMX.
 |
- Feature
- Application
- Application case
Product features
 |
 |
RR-Finishing and roughing of newly made wheels
The products have strong versatility and excellent chip breaking performance, which can meet the machining of train wheels of different grades; |
 |
 |
HF-Machining of slightly worn railway wheels
The groove type with the best chip breaking performance for wheel repair inserts; |
 |
 |
HM-Medium Wear Train Wheel Machining
The groove type with the best versatility for wheel repair inserts; |
 |
 |
HR – Severe Wear Train Wheel Machining
The strongest groove type for wheel repair inserts; |
Matching grades
4 CVD-coated grades to cover common steel processing conditions
GP1105R、GP1105H、GP1105、GP1115、

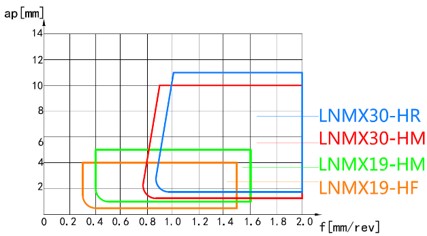

processing scope

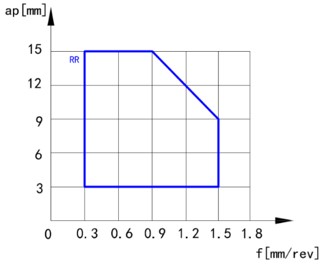

RR – for finishing and roughing of newly made wheels
HF –For finishing operations
HM – For medium/semi-finishing operations
HR – For roughing operations

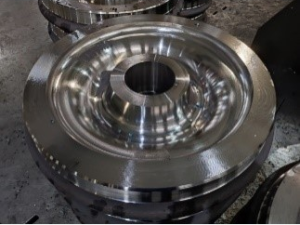

Railway industry blade processing case (train wheels)
| Insert | RCMX250700-RR1 |
| Grade | GP1105R |
| Material | CL70 |
| Speed | Vc=100m/min |
| Feed | fr =1.5mm/r |
| Depth | ap=4mm |
| Cooling | dry cut |
| Machining type | Wheel processing |
