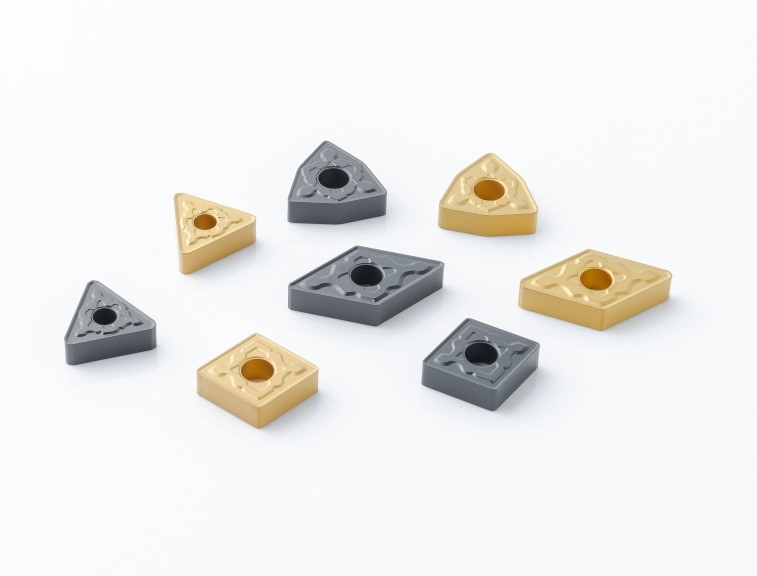

Negative wiper series inserts
Wiper series inserts for cutting of general steel, alloy steel, stainless steel and cast iron, including WMV series.
 |
 |
 |
- Feature
- Application
- Application case
Product features
 |
 |
WMV
WMV for semi-finishing of general steel, alloy steel and cast iron. Large chip breaker with low chip removal resistance. Excellent sharp cutting edge and strength. Good surface quality. |
Matching grades
8 CVD coated grades to cover a wide range of machining conditions.
GK1115、GK1120、GK1125、GP1105、GP1115、GP1120、GP1225、

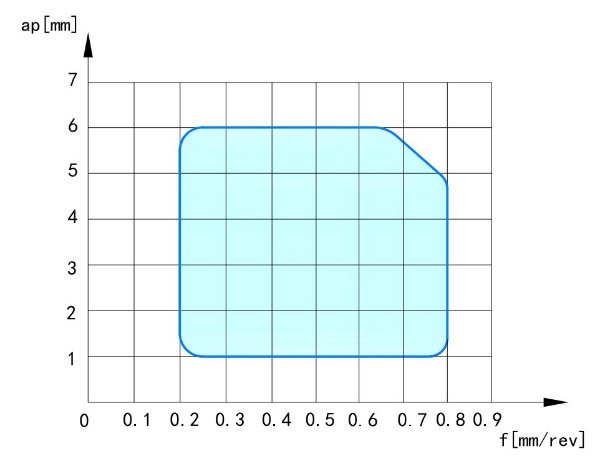

processing scope
WMV for medium cutting of general steel, alloy steel and cast iron.

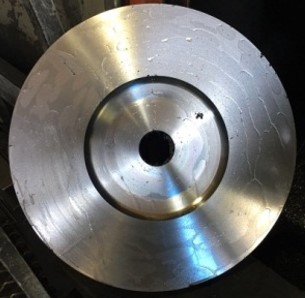

Turning insert machining case (flywheel)
| Insert | WNMG080412- WMV |
| Grade | GK1115 |
| Material | QT400 (HB190-270） |
| Speed | Vc=250m/min |
| Feed | fr =0.5mm/r |
| Depth | ap=0.5-0.7mm |
| Cooling | wet cutting |
| Machining type | Roughing of cylindrical end faces |
