Nonferrous metals Turning grade

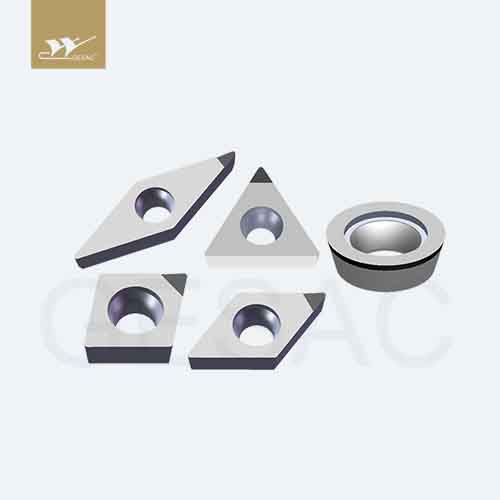

PCD Turning Inserts is for the processing of non-ferrous metals, such as casting aluminum, silicon aluminum, cemented carbide, and non-metal materials, such as glass fiber reinforced composite, carbon fiber reinforced composite, intensified plastic, graphite, wood etc.
Aerospace and Automotive industries, 3C product, general machinery, wind power, and all kinds of precision processing requirements.
- Feature

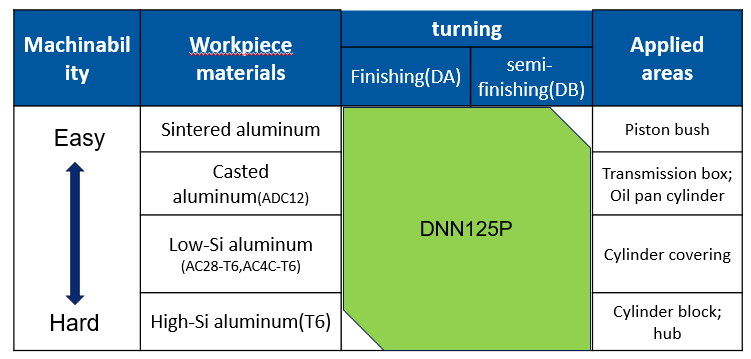

- Application
- Application case
PCD
N type Nonferrous metals Turning grade
| ISO | Grade | Grade
Color |
Grade Microstructure | Grade Feature |
| N | DNN125P | Uncoated |  |
•Medium grained diamond has excellent wear resistance and
toughness. •Recommended for high efficient finishing of aluminums, coppers, plastics and graphite materials. |
PCD
N type Nonferrous metals Turning grade
| ISO | Workpiece Material | Cutting Range | Appli-cation | Grade | Min-Optimum-Max | ||
| Vc(m/min) | ap(mm) | f(mm/rev) | |||||
| N | Aluminum Alloy | Finishing | General | DNN125P | 300-1200-3000 | 0.05-0.20-0.50 | 0.05-0.10-0.20 |
| Copper Alloy | Finishing | General | DNN125P | 200-500-1000 | 0.05-0.40-2.00 | 0.05-0.10-0.20 | |
| Plastics | Finishing | General | DNN125P | 100-600-1000 | 0.1-0.40-2.00 | 0.05-0.10-0.40 | |
| Wood and inorganic | Finishing | General | DNN125P | 200-2000-4000 | 0.1-0.50-2.00 | 0.05-0.10-0.40 | |
| Cemented Alloy | Finishing | General | DNN125P | 10-20-30 | 0.05-0.20-0.50 | 0.05-0.10-0.20 | |
| Graphite | Finishing | General | DNN125P | 100-300-600 | 0.1-0.40-2.00 | 0.1-0.25-1.00 | |
Motor commutator machining
| Specification | DCGW11T302GB-1 |
| Grade | DNN125P |
| Material | Copper aluminum alloy |
| Cutting speed | Vc=500m/min |
| Feed | fr =0.02mm/r |
| Cutting depth | ap=1~1.5mm |
| Coolant | Dry cutting |
| Cutting type | Coarse and fine turning of outer circle |
| Life | 8000PCS |
| Process requirements | The surface is bright with clear patterns, and there are no burrs in the gaps of the workpiece |
