Nonferrous metals Milling grade
PCD endmill is for the processing of non-ferrous metals, such as casting aluminum, silicon aluminum, cemented carbide, and non-metal materials, such as glass fiber reinforced composite, carbon fiber reinforced composite, intensified plastic, graphite, wood etc.
Aerospace and Automotive industries, 3C product, general machinery industry, wind power, and all kinds of precision processing requirements.
- Feature
- Application
- Application case
PCD
N type Nonferrous metals Milling grade
| ISO | Grade | Grade
Color |
Grade Microstructure | Grade Feature |
| N | DNN125P | Uncoated |  |
•Medium grained diamond has excellent wear resistance and
toughness. •Recommended for high efficient finishing of aluminums, coppers, plastics and graphite materials. |
PCD
N type Nonferrous metals Milling grade

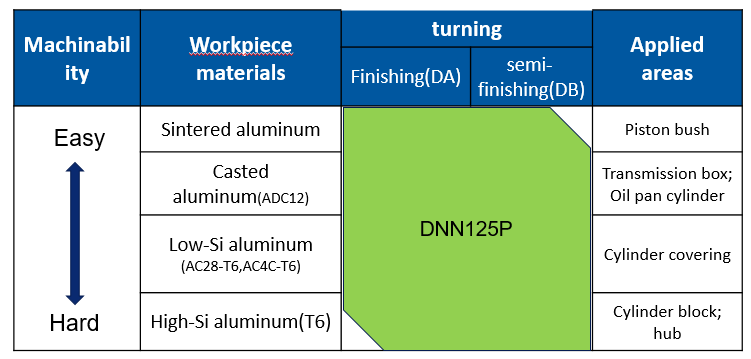

| ISO | Workpiece Material | Cutting Range | Appli-cation | Grade | Min-Optimum-Max | ||
| Vc(m/min) | ap(mm) | f(mm/rev) | |||||
| N | Aluminum Alloy | Finishing | General | DNN125P | 300-1200-3000 | 0.05-0.20-0.50 | 0.05-0.10-0.20 |
| Copper Alloy | Finishing | General | DNN125P | 200-500-1000 | 0.05-0.40-2.00 | 0.05-0.10-0.20 | |
| Plastics | Finishing | General | DNN125P | 100-600-1000 | 0.1-0.40-2.00 | 0.05-0.10-0.40 | |
| Wood and inorganic | Finishing | General | DNN125P | 200-2000-4000 | 0.1-0.50-2.00 | 0.05-0.10-0.40 | |
| Cemented Alloy | Finishing | General | DNN125P | 10-20-30 | 0.05-0.20-0.50 | 0.05-0.10-0.20 | |
| Graphite | Finishing | General | DNN125P | 100-300-600 | 0.1-0.40-2.00 | 0.1-0.25-1.00 | |

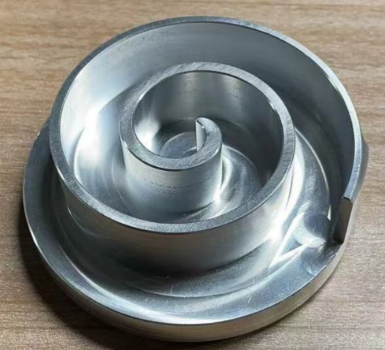

Processing of vortex shells (dynamic and static disks)
| Specification | DNM100-RS2-08002 |
| Grade | D8*R0.2*15*75*d10 |
| Material | aluminum alloy |
| Cutting speed | Vc=200m/min |
| Feed | fz =0.05mm/z |
| Cutting depth | ap=0.04mm |
| Coolant | Dry cutting |
| Cutting type | Face milling + Side milling |
| Life | 1675PCS |
| Process requirements | Straightness 0.005mm， verticality 0.008mm， No color difference on the surface 、 chatter mark |
