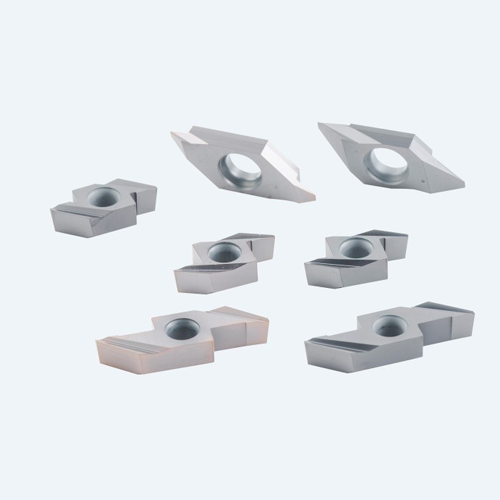

Flat fixed back turning-GSAB/GSTB
GSAB series with horizontally-installed inserts and GSTB series with vertically-installed inserts are suitable for back-turning of small parts.
 |
 |
- Feature
- Application
- Application case
Product features
 |
 |
GSTB- the horizontal installation insert
Special shape design to meet the requirements of back turning processing. Special flute design, stable control of chip flow. |
 |
 |
GSTB- the horizontal installation insert
Vertical structure design, firm clamping, stable cutting. The chute design can effectively control the direction of chip removal. |
Matching brand
Four PVD Coated Carbide for small part turning common working conditians for processing small parts of steel and stainless stell
GAT7115/GAT7120/GAT7125/GAT7120A

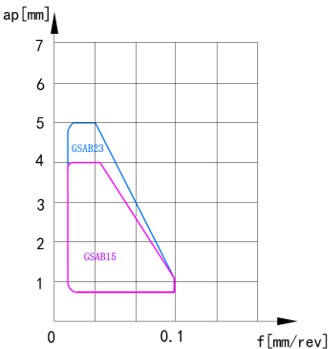

processing scope
Series GSAB belongs to the vertical installation insert, suitable for the back turning processing of small diameter workpiece.
Series GSTB belongs to the horizontal installation insert, suitable for the back turning processing of small diameter workpiece.

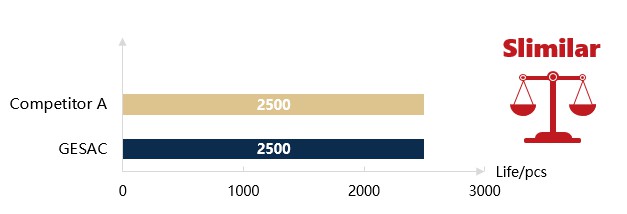

Example of small parts turning insert machining (gears)
| Insert | GSAB15R4025015M |
| Grade | GAT7115 |
| Material | 12L14 |
| Speed | Vc=80-122m/min |
| Feed | fr =0.06-0.08mm/r |
| Depth | ap=2.7mm |
| Cooling | oil cooled |
| Machining type | cylindrical finishing |
