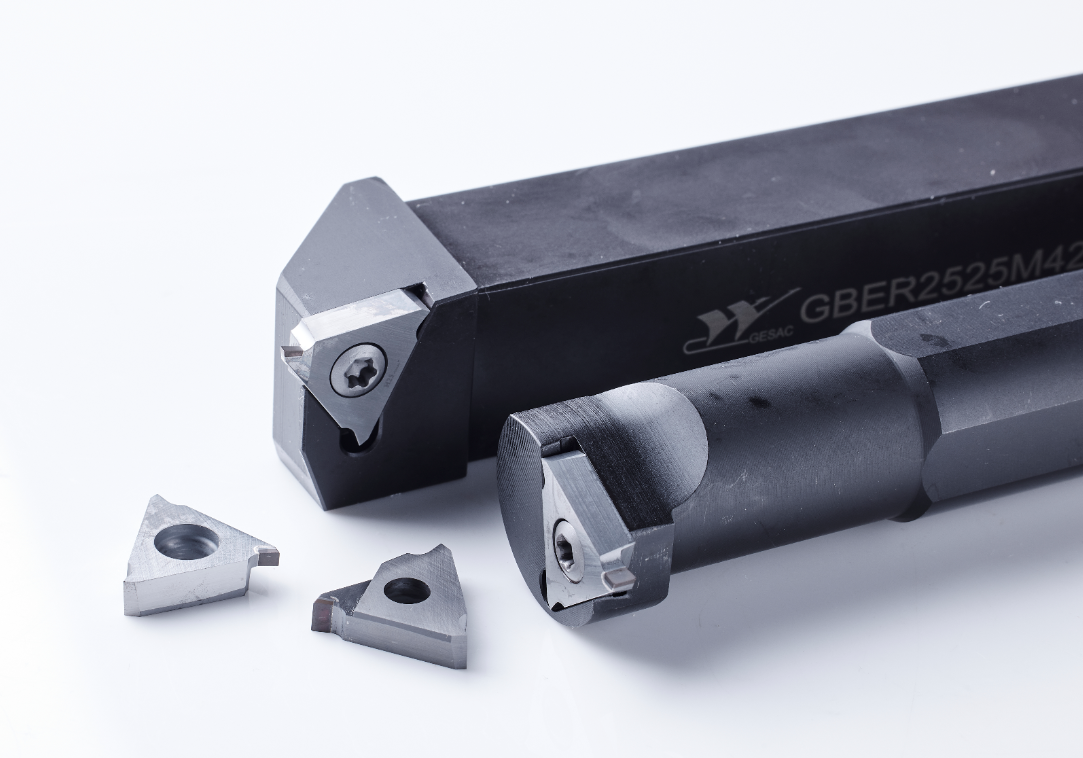

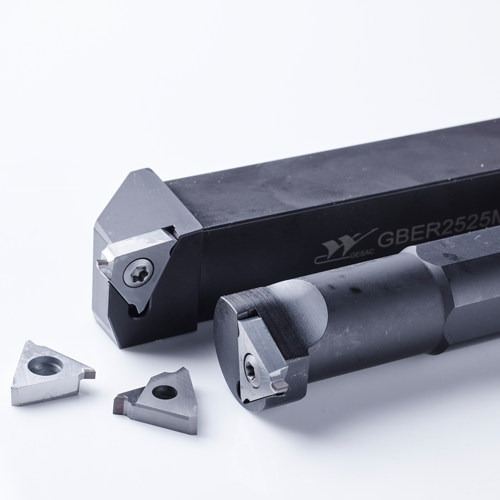

PCBN Precision shallow grooving-GB
With high accuracy and being very versatile, suitable for slotting of parts such as gears and gear shafts.
 |
 |
- Feature
- Application
- Application case
 |
|
1.Processing material: Quenched steel（>50HRC）
2.Suitable for groove cutting of quenched parts such as gears and gear shafts, it is mainly used in the automotive industry and general machinery industry.
Typical processed components include gears, transmission shafts, etc.

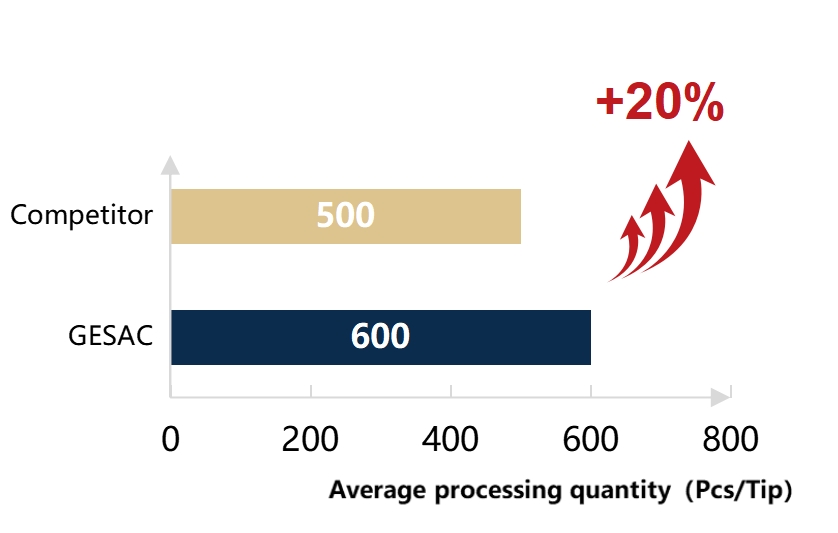

PCBN Precision shallow groove-GB processing cases

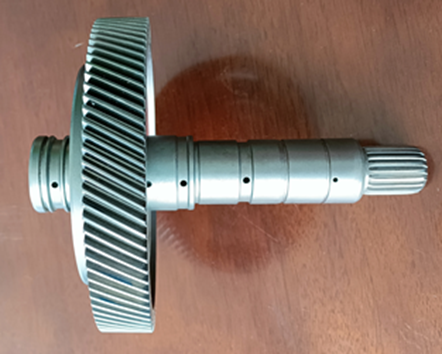

——Gear machining
| Specification | GB4150R-020LE-1 |
| Grade | BHN125P |
| Material | 20GrMnTiH(HRC58~62) |
| Cutting speed | 56.5m/min |
| Feed | fr =0.06mm/r |
| Cutting depth | ap=0.2mm |
| Coolant | Dry |
| Cutting type | Outer groove machining |
