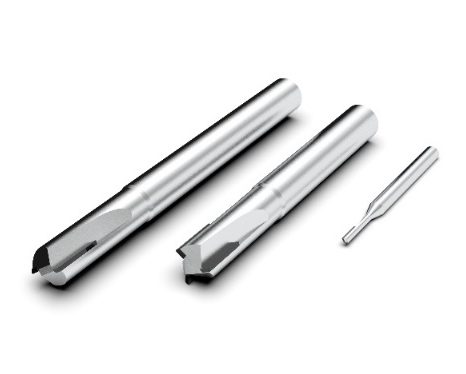

DNM100 PCD endmills

PCD endmill is for the processing of non-ferrous metals, such as casting aluminum, silicon aluminum, cemented carbide, and non-metal materials, such as glass fiber reinforced composite, carbon fiber reinforced composite, intensified plastic, graphite, wood etc.
Aerospace and Automotive industries, 3C product, general machinery industry, wind power, and all kinds of precision processing requirements.

Feature
Application
Application case

$F:\ShareCache\工具技术市场部\A-10-产品宣传\04-产品册制作\2021年样本册修订\02-铣削样本册\01-整体铣刀\1.第二稿\图片\超硬\组合图.jpg$

It is used for processing non-ferrous metal materials and non-metallic materials, such as cast aluminum, aluminum-silicon alloy, cemented carbide, glass fiber reinforced composite materials, carbon fiber reinforced composite materials, reinforced plastics, graphite, wood, etc;
It adopts diamond material with excellent wear resistance and unique edge design, so that the tool has an extremely high service life and product surface quality, ensuring cutting surface quality and high service life；

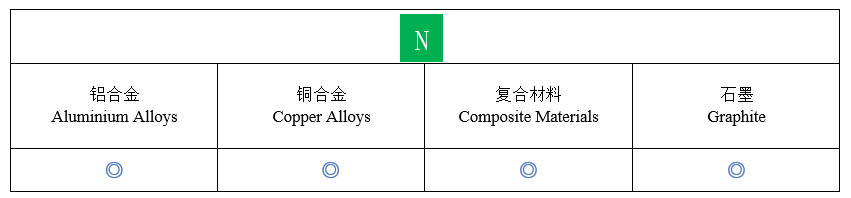

Suitable for copper, aluminum alloys, graphite, composite materials ,etc, rough, semi-fine and finishing;

DNM100 processing cases

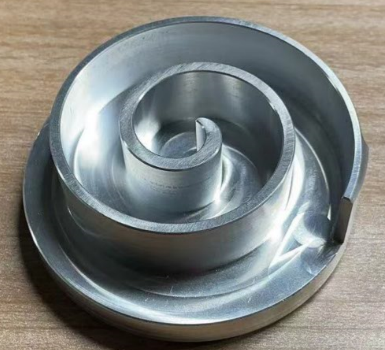

—— Vortex shell（Dynamic and static disk）

Specification	DNM100-RS2-08002
Grade	D8R0.21575d10
Materials	Aluminum alloy
Cutting Speed	Vc=200m/min
Feed rate	fz =0.05mm/z
cutting depth	ap=0.04mm
Cooling method	dry cutting
Cutting method	Face milling + Side milling
Tool life	1675PCS
Process requirements	Straightness 0.005mm， verticality 0.008mm， No color difference on the surface 、 chatter mark
