SHM200 Endmills of micro diameter for deep machining
Adopt GU ultra-fine grain substrate and TiAlSiN high performance nano coating.
Special angle and reduced neck design
High precision edge diameter precision, high precision head contour, high precision cutter Handle (H5).
Suitable for precise deep hole machining of hardened steel, pre-hardened steel and other materials (hardness HRC≤65)
 |
 |
- Feature
- Application
- Application case
SHM200 Endmills of Micro Diameter for Deep Machining
Product features
♦ Adopt GU ultra-fine grain substrate and TiAlSiN high performance nano coating.
♦ Special angle and reduced neck design
♦ High precision edge diameter precision, high precision head contour, high precision cutter Handle (H5)
♦ Suitable for precise deep hole machining of hardened steel, pre-hardened steel and other materials (hardness HRC≤65)
| Workpiece Material | |||||
|
|
||||
| 1 2 3 4 | 5 | 6 | 1 | 2 | 3 4 |
| Carbon Steel,
Alloy Steel (＜35HRC) |
Alloy Steel
(≤48HRC) |
PH,Ferrite,
Martensite Steel (＜35HRC) |
Hardened Steel (45-55HRC) | Hardened Steel (55-60HRC) | Hardened Steel (＞60HRC) |
| ○ | ○ | ◎ | ◎ | ◎ | |
◎ Most Suitable ○ Suitable

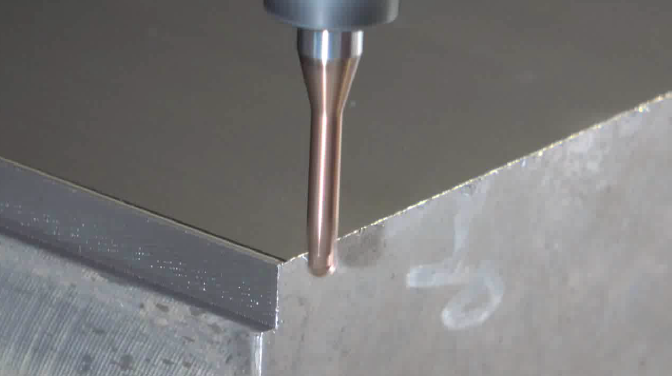

SHM200 application case（Automobile mold）
| Specification | SHM200-BN2-3-8-K |
| Dimension | R1.5*2.4*8*55*d6*D2.88 |
| Material | SKD11（60HRC） |
| Cutting speed | Vc=113m/min |
| Feed rate | fz =0.11mm/z |
| Cutting depth | ap=0.04mm，ae=0.04mm |
| Cooling method | Water-cooling |
| Cutting method | facing milling |
