Vertically Eight Flutes Square Shoulder Milling LNE(M)T insert + MVA190/MVA290 cutter holder
1.Unique stand-mounted structure design,high strength, suitable for heavy-duty milling and high machining efficiency
2.Negative 8-edged design for left and right handed tool bodies
3.Mainly used for rough machining of steel and cast iron materials
 |
 |
 |
- Feature
- Application
- Application case
Product features
Unique stand-mounted structure design, high strength, suitable for heavy-duty milling and high machining efficiency;
Negative 8-edged design for left and right handed tool bodies;
Two types of teeth are available for different cutting conditions;
V-shaped positioning structure design, more stable clamping;
Mainly used for rough machining of steel and cast iron materials

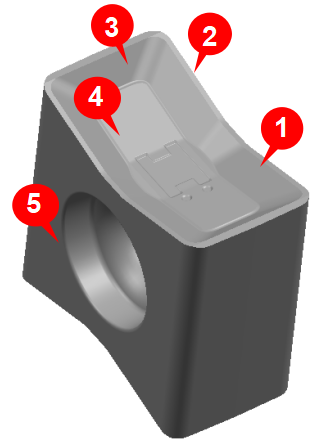

Geometry features
 |
1. Strong edge shape + large axial rake angle: reduce cutting force while ensuring strength.
2. 8-edge blade design: the left and right hand cutter use the same insert. 3.with polishing blade: to improve the quality of the processing surface. 4. V-shaped positioning surface: the clamping is more stable. 5. Vertical mounting screw: with good stability and impact resistance. |

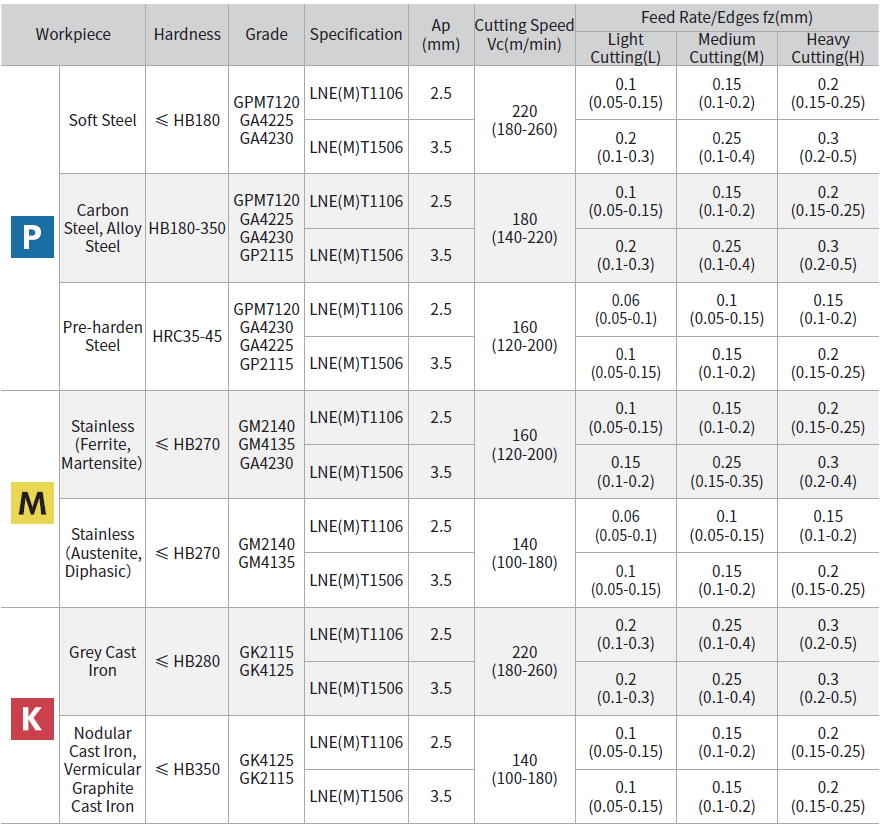

Grade matching
Paired with A, P, K, M, S milling grades, achieving comprehensive coverage of processed materials.
GA4230、GPM7120、GP2115、GK4125、GK2115、GM2140、GM4135、GS4130

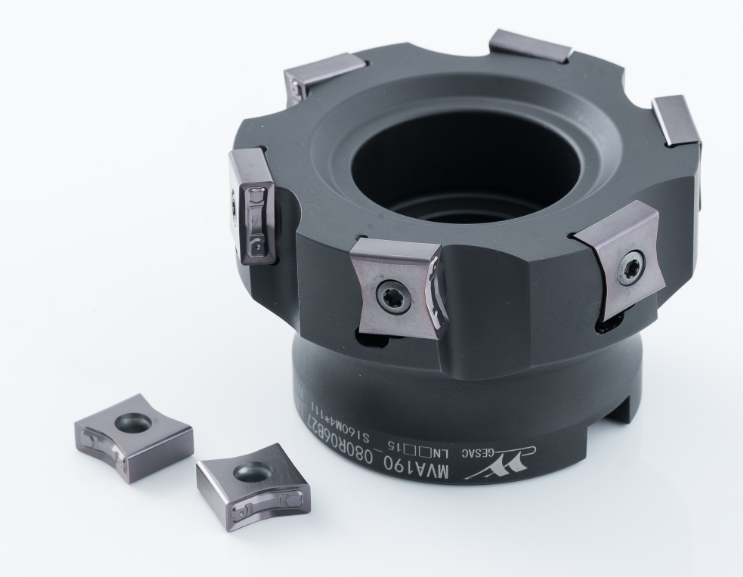

Paired with cutter body series
| Product series | Shell | Arbor |
| MVA190 | D40-D315 | |
| MVA290 | D80-250 |

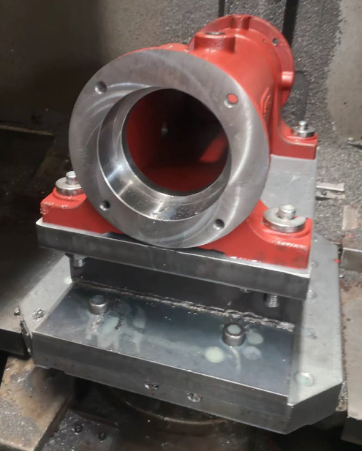

Valve body machining
| Specification | LNMT110608-GM |
| Grade | GM2140 |
| Material | HT200(HB280) |
| Cutting speed | Vc=198m/min |
| Feed rate | fz =0.17mm/z |
| Cutting depth | ap=2.5mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Face milling |
