Positive four edges shoulder milling SDKT insert+MES190 cutter holder
1.Curve edge design with small cutting resistance
2.Available for face milling, shoulder milling, grooving milling and so on
3.Suitable for semi-finishing and roughing machining of steel and cast iron
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
Curve edge design with small cutting resistance.
Multi-clearance angle design, ensure the inserts with higher strength and sharpness.
Available for face milling, shoulder milling, grooving milling and so on.
Suitable for semi-finishing and roughing machining of steel and cast iron.
Geometry features
 |
|

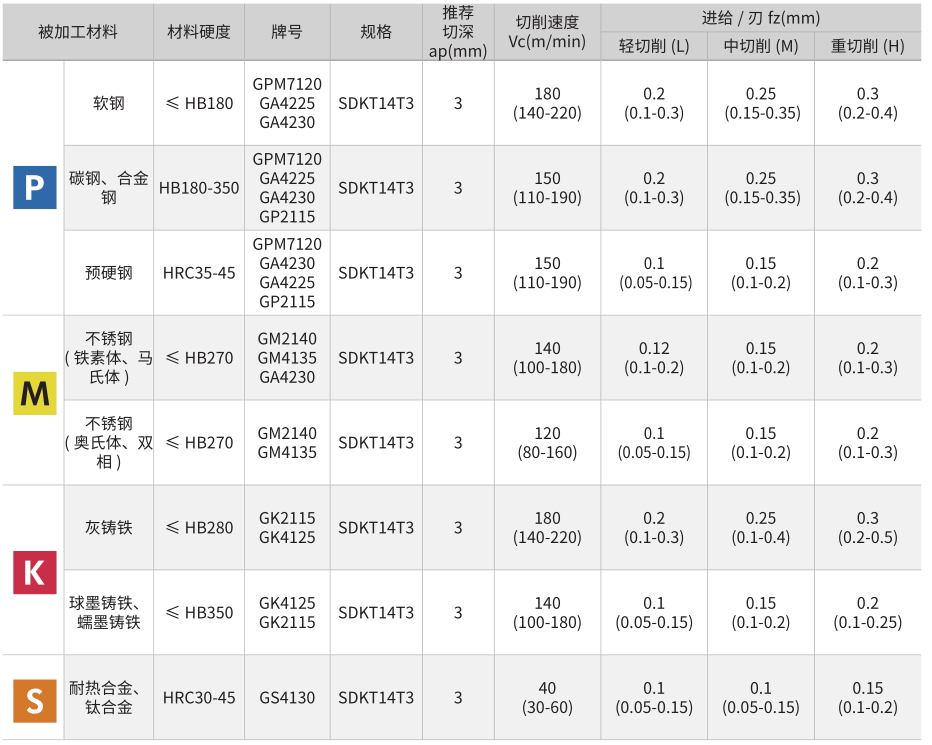

Grade matching
Paired with P, K, M and S milling grades, achieving comprehensive coverage of processed materials.
GA4225、GA4230、GPM7120、GP4225、GP2115、GK4125、GK2115、GM2140、GM4135、GS4130
Paired with cutter body series
| Product series | Cylinder straight shank | Arbor |
| MES190 | D49-D50 | D50-D315 |
Custom structural component machining
| Specification | SDKT14T3PEER-GL |
| Grade | GK4125 |
| Material | HT250（HB160） |
| Cutting speed | Vc=300m/min |
| Feed rate | fz =0.17mm/z |
| Cutting depth | ap=0.5mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Face milling |
