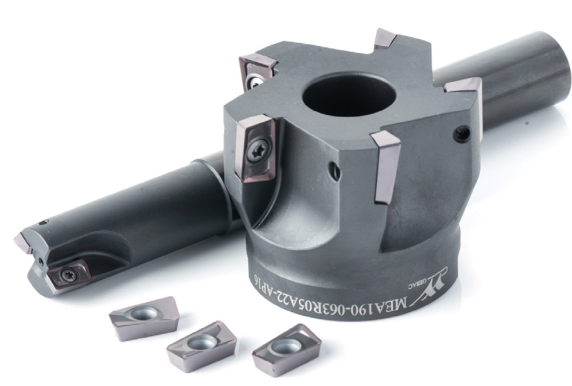

Positive two edges shoulder milling APM(G)T insert+MEA190 cutter holder
1.Several geometries available, suitable for different cutting condition
2.Special geometries for aluminum alloy, suitable for machining of aluminum alloy
3.Suitable for roughing machining of steel, stainless steel, cast iron and aluminum alloy
 |
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
There are many geometries available, suitable for different cutting condition.
There are geometries for aluminum alloy, suitable for machining of aluminum alloy.
Suitable for roughing machining of steel, stainless steel, cast iron and aluminum alloy.
Geometry features
| Light Cutting for General Material | Medium Cutting for General Materia | Medium Cutting for General Materia | Steel Workpiece Heavy Cutting | Aluminum Cutting |
 |
 |
 |
 |
 |

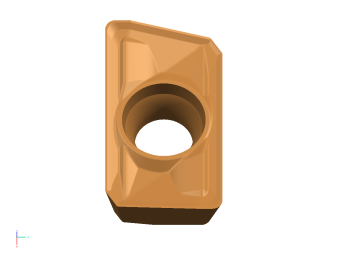

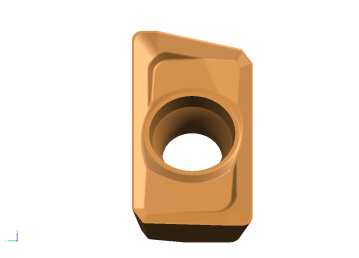

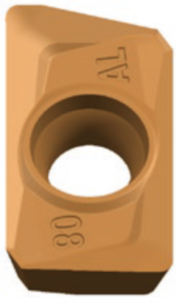

| GM | PL | PM | PR | AL |
 |
 |
 |
 |
 |
| Under normal working conditions, Achieve high stability machining. | Light load cutting with low cutting resistance, Get better processing quality. | Under normal working conditions, Achieve high stability machining. | Suitable on roughing, good edge strength. | Suitable on Al processing, sharp edge with polishing. |

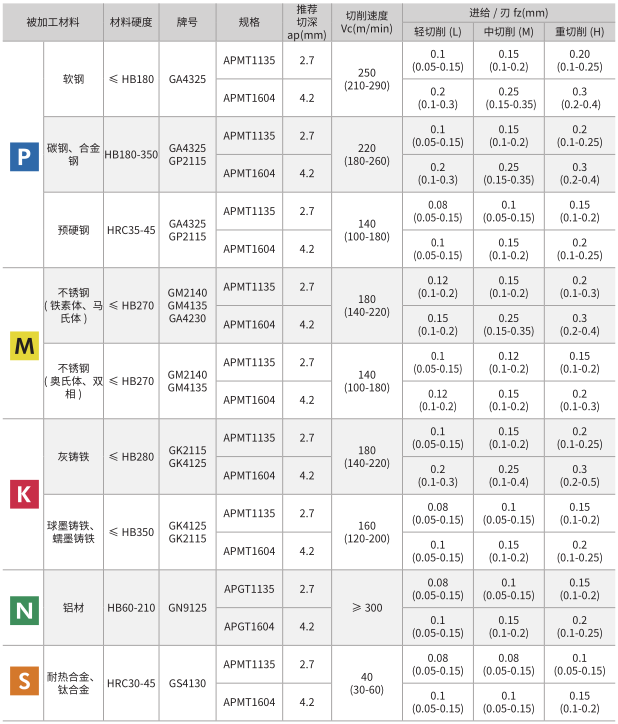

Grade matching
Paired with P, K, M, S and N milling grades, achieving comprehensive coverage of processed materials.
GA4225、GA4230、GA4325、GPM7120、GP4225、GP2115、GK4125、GK2115、GM2140、GM4135、GS4130、GN9125
Paired with cutter body series
| Product series | Side Clamp Type | Arbor |
| MEA190 | D16-D32 | D40-D250 |

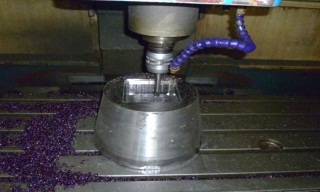

Cavity Milling
| Specification | APMT1604PDER-PL |
| Grade | GA4230 |
| Material | P20（ HBC37） |
| Cutting speed | Vc=150m/min |
| Feed rate | fz =0.1mm/z |
| Cutting depth | ap=0.5mm |
| Cooling method | Air Cooling |
| Cutting method | Cavity Milling |
