Positive two edges shoulder milling APK(E)T insert+MEB190/MHB190 cutter holder
1.The edge is with curve type design to decrease the cutting resistance.
2.Match with corn milling cutter holder, with high milling efficiency.
3.Suitable for semi-finishing and roughing machining of steel, stainless steel, cast iron and aluminum alloy.
 |
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
The edge is with curve type design to decrease the cutting resistance.
Match with corn milling cutter holder, with high milling efficiency.
There are geometries for aluminum alloy, suitable for machining of aluminum alloy.
Suitable for semi-finishing and roughing machining of steel, stainless steel, cast iron and aluminum alloy.

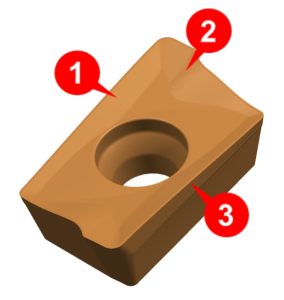

Geometry features
 |
|
Grade matching
Paired with P, K, M, S and N milling grades, achieving comprehensive coverage of processed materials.
GA4225、GA4230、GA4325、GPM7120、GP4225、GP2115、GK4125、GK2115、GM2140、GM4135、GS4130、GN9125

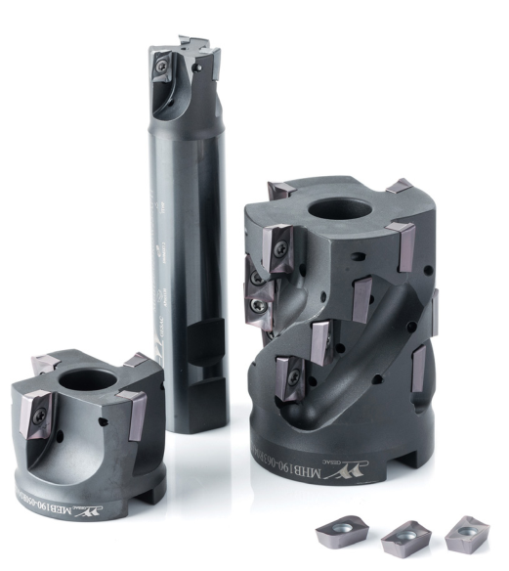

Paired with cutter body series
| Product series | Replaceable tool head | Cylinder straight shank | Arbor | Corn milling Cutter |
| MEB190 | D16-D35 | D16-D40 | D40-D200 | D32-D80 |

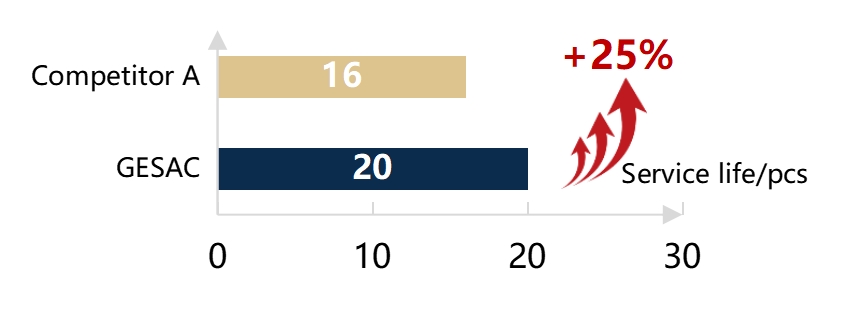

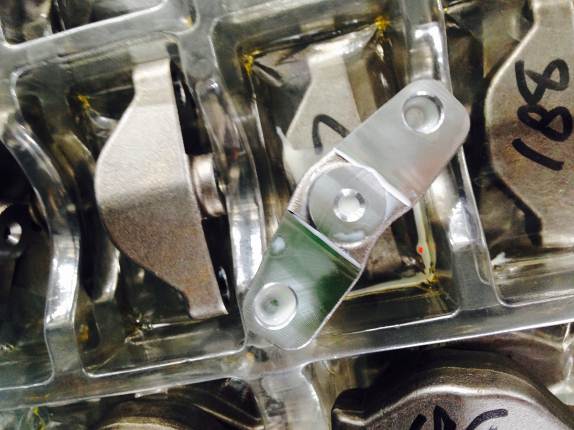

Bridge Frame Processing
| Specification | APKT160408R-GM |
| Grade | GA4230 |
| Material | P20（ HB320） |
| Cutting speed | Vc=150m/min |
| Feed rate | fz =0.15mm/z |
| Cutting depth | ap=6mm |
| Cooling method | Air cooling |
| Cutting method | Shoulder milling+face milling |
