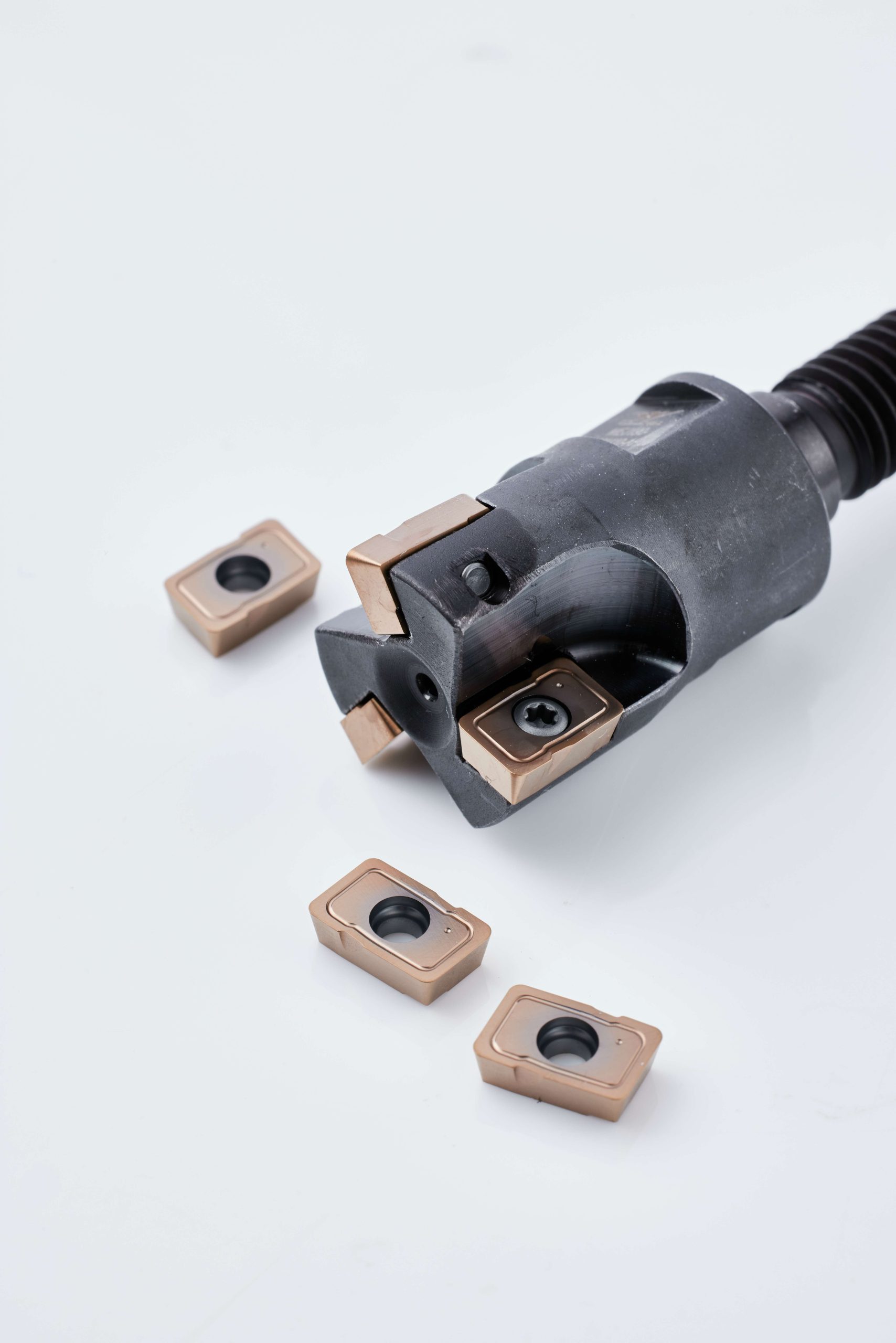

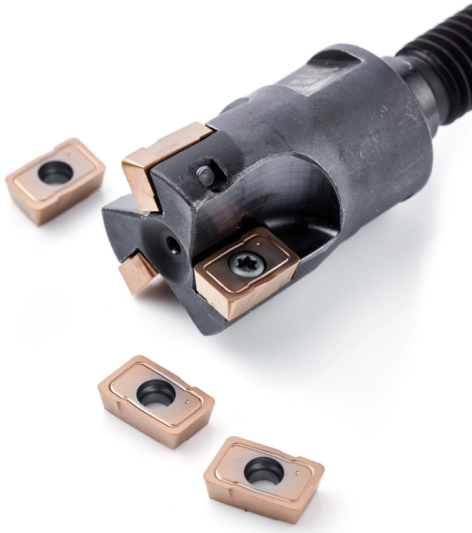

Square-shoulder milling with positive two- edged finish grinding APEW insert + MEJ190 tool body
1.Spiral edge design for improved sidewall machining accuracy
2.Special cutting edge design for reciprocating fine insert milling
3.Finely ground surface for high precision machining
 |
- Feature
- Application

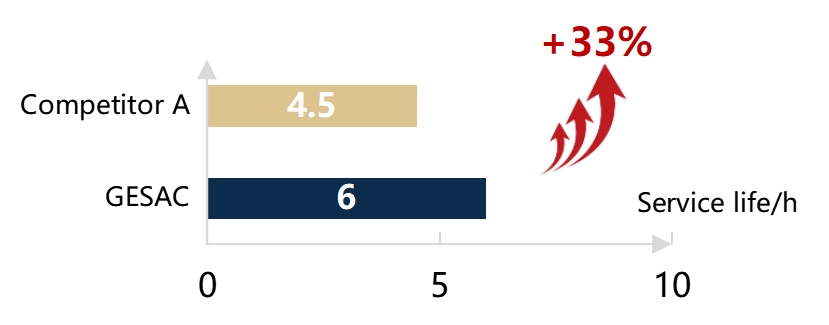

- Application case
Product features
Spiral edge design for improved sidewall machining accuracy.
Special cutting edge design for reciprocating fine insert milling.
Finely ground surface for high precision machining.

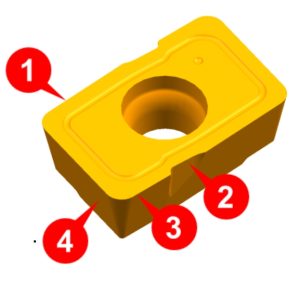

Geometry features
 |
|

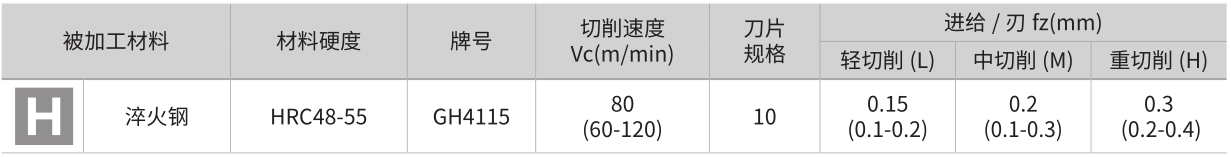

Grade matching
Compatible with high-hardness material grade GH4115.
Paired with cutter body series
| Product series | Replaceable tool |
| MEJ190 | D17-D26 |
Daily necessities mold machining
| Specification | APEW100308-GH |
| Grade | GH4115 |
| Material | P20（HRC38） |
| Cutting speed | Vc=250m/min |
| Feed rate | fz =0.29mm/z |
| Cutting depth | ap=0.5mm
ae=0.5mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Shoulder milling + profiling milling |
