Positive two edges shoulder milling ADGT inserts+MET190 cutter holder
1.The edge with spatial curve Cutting Tooldesign to decrease the cutting resistance
2.The special dedicated geometry for machining of Ti alloy
3.Suitable for semi-finishing and roughing machining of Ti alloy
 |
 |
- Feature

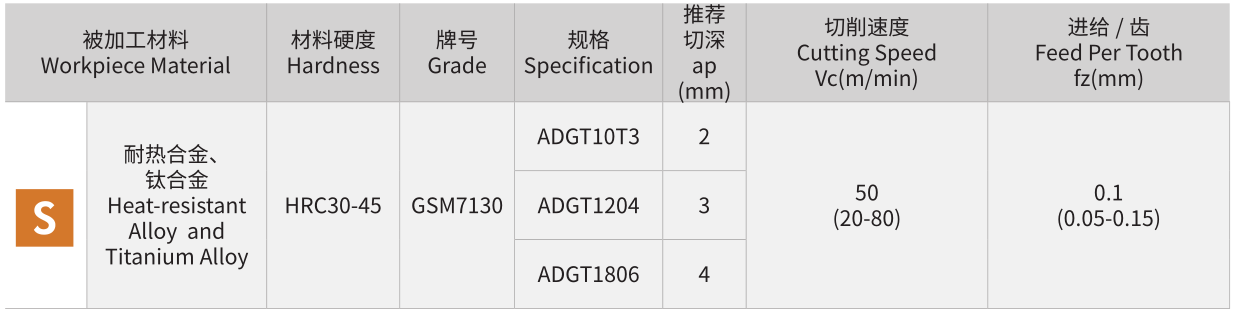

- Application
- Application case
Product features
The edge with spatial curve Cutting Tooldesign to decrease the cutting resistance .
The blade geometry with variable edge width, increased tool life.
The special dedicated geometry for machining of Ti alloy.
Suitable for semi-finishing and roughing machining of Ti alloy.
Geometry features
 |
|
Grade matching
Compatible with titanium alloy grade GSM7130 and new stainless steel grade GM4240.
Paired with cutter body series
| Product series | Replaceable tool head | Cylinder straight shank | Arbor |
| MET190 | D20-D40 | D16-D40 | D50-D160 |
Titanium alloy structural components machining
| Specification | ADGT180630R-SM |
| Grade | GSM7130 |
| Material | TC18(HRC40-45) |
| Cutting speed | Vc=35m/min |
| Feed rate | fz =0.11mm/z |
| Cutting depth | ap=1mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Slotting |
