Positive double edges shoulder milling for aluminum XDHT insert +MEH190 cutter holder
1.Long cutting edge design, suitable for big cutting depth
2.Curve edge design, ensure to achive a 90° step in shoulder milling
3.Suitable for semi-finishing and roughing of aluminum alloy
 |
- Feature
- Application
- Application case
Product features
Big rake angle design, ensures small cutting resistance.
Positive double clearance angle design, improve the strength of the edge.
Long cutting edge design, suitable for big cutting depth.
Curve edge design, ensure to achive a 90° step in shoulder milling.
Suitable for semi-finishing and roughing of aluminum alloy.
Geometry features
 |
|

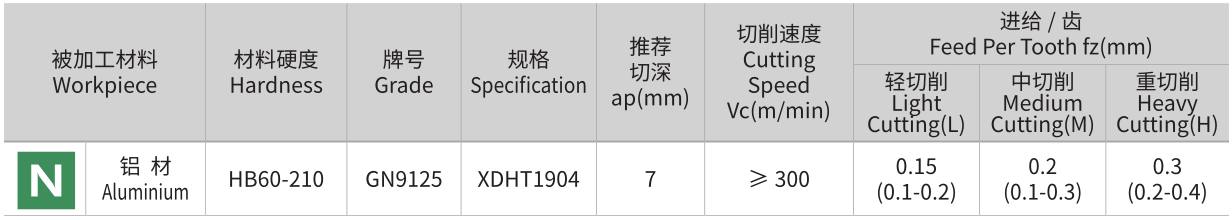

Grade matching
Matched with special grades for aluminum alloy materials GN9125 and GNT7120.
Paired with cutter body series
| Product series | Replaceable tool head | Cylinder straight shank | Arbor |
| MEH190 | D25-D40 | D25-D32 | D40-D125 |
Rib cavity machining
| Specification | XDHT190432FR-AL |
| Grade | GN9125 |
| Material | 7050 |
| Cutting speed | Vc=1670m/min |
| Feed rate | fz =0.26mm/z |
| Cutting depth | ap=3mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Cavity maching |
