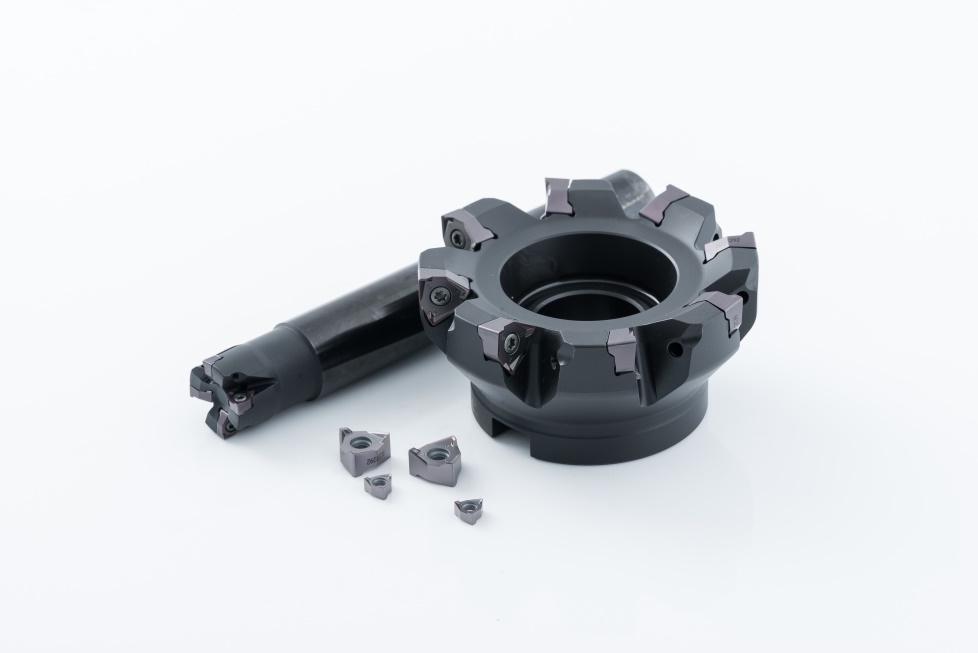

Negative six edges shoulder milling WNGU insert+MEE190 cutter holder
1.Negative six edges design, with high economical efficiency
2.Available for face milling, shoulder milling, grooving milling and so on
3.Suitable for semi-finishing and roughing machining of steel and cast iron
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
● Negative six edges design, with high economical efficiency
● Negative double face and big rake angle design , improve strength and ensure sharpness
● The bottom edge is wipe edge, ensure the cutting surface with good quality
● Available for face milling, shoulder milling, grooving milling and so on
● Suitable for semi-finishing and roughing machining of steel and cast iron
Geometry features
 |
|

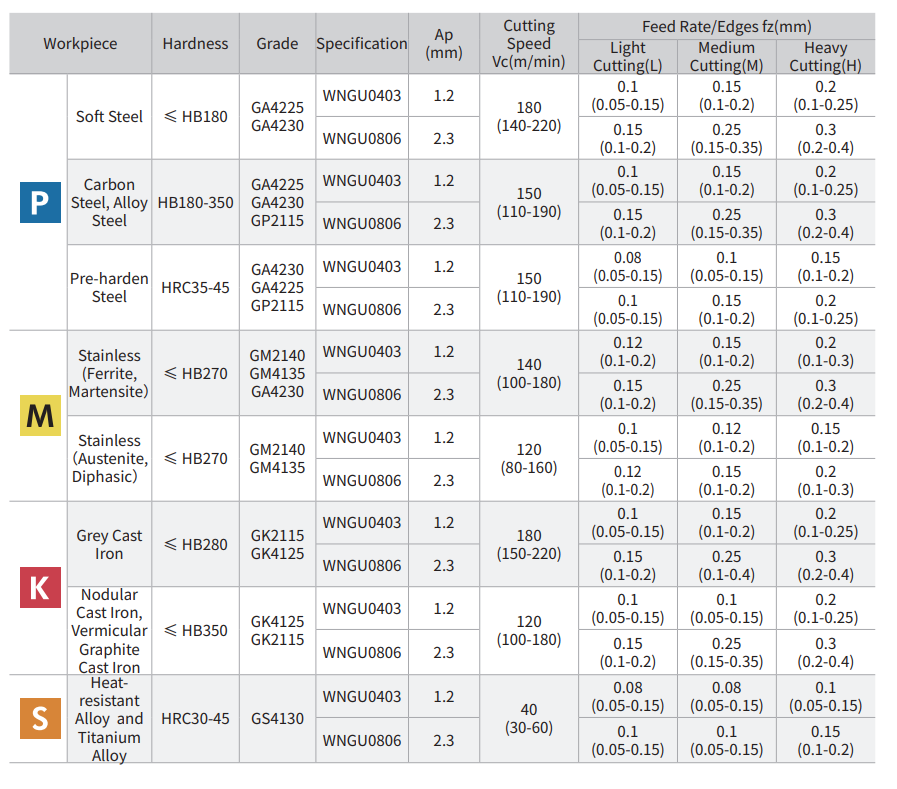

Grade matching
Paired with A,P, K, M, S milling grades, achieving comprehensive coverage of processed materials.
GA4230，GA4325，GP4225，GP2115，GPM7120，GK4125，GK2115，GM2140，GM4135，GS4130
Paired with cutter body series
| Product series | Cylindrical Straight Type | Arbor |
| MEE190 | D20-D40 | D40-D200 |

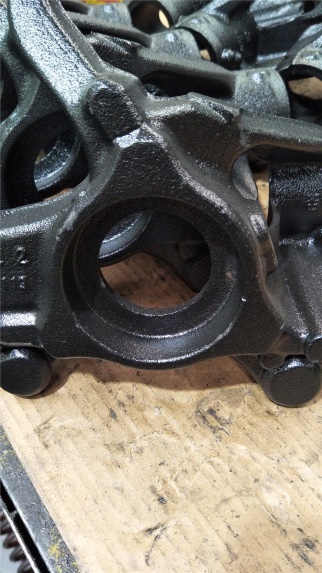

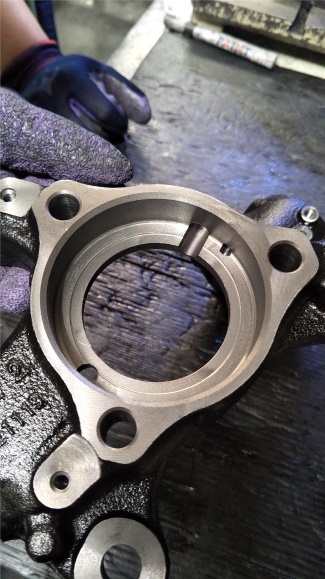

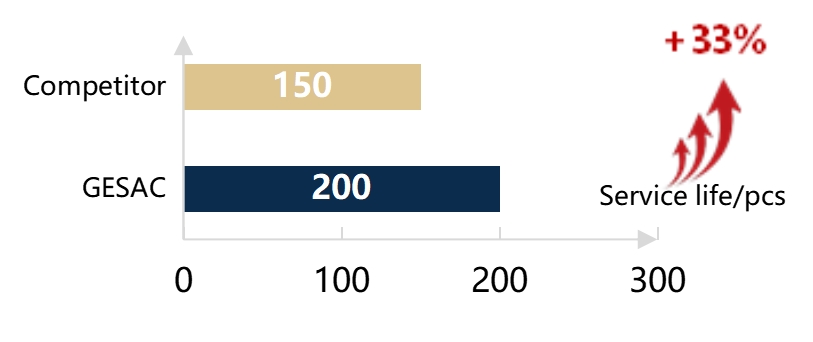

Steering knuckle Machining
| Specification | WNGU080608-GH |
| Grade | GK4125 |
| Material | cast iron GJS450 |
| Cutting speed | Vc=200m/min |
| Feed rate | fz =0.2mm/z |
| Cutting depth | ap=2mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Shoulder milling |
