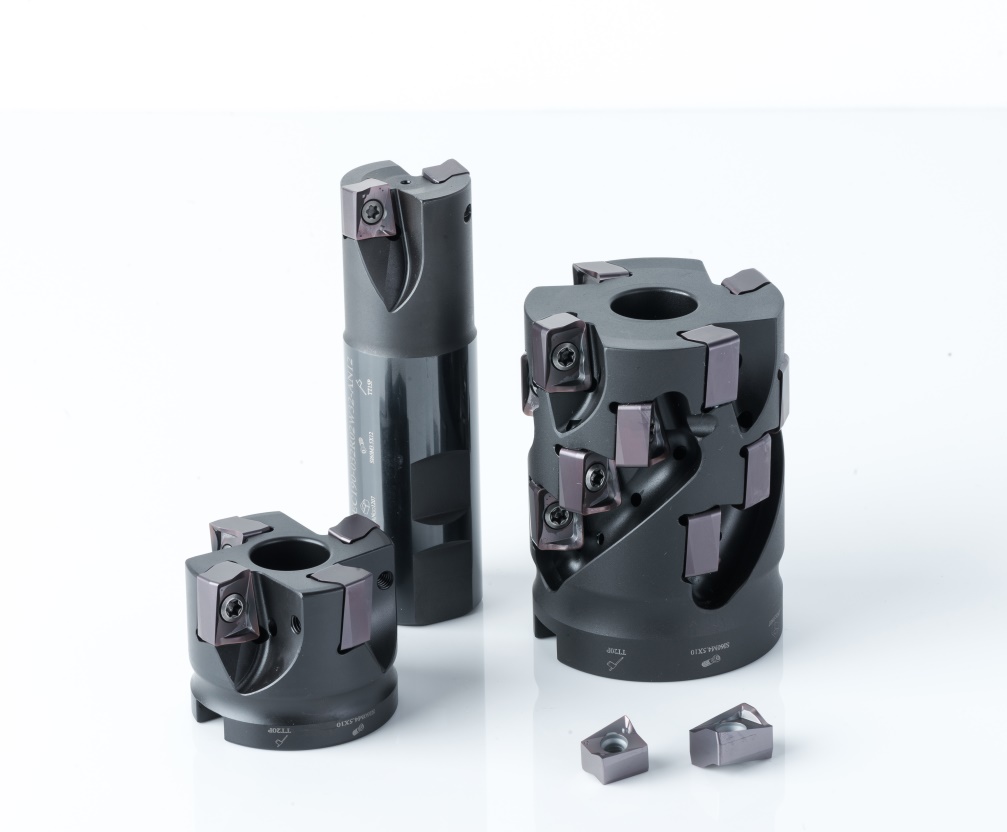

Negative four edges shoulder milling ANKX insert+MEC190/MHC190 cutter holder
1.Negative type thickening design, with high strength, suitable for heavy cutting
2.Match with corn milling cutter holder, suitable for high efficiency heavy cutting
3.Suitable for semi-finishing and roughing machining of steel, cast iron
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
● Negative type thickening design, with high strength, suitable for heavy cutting
● The edge is grinding type and with curve design, suitable for vertical wall machining
● Match with corn milling cutter holder, suitable for high efficiency heavy cutting
● Suitable for semi-finishing and roughing machining of steel, cast iron

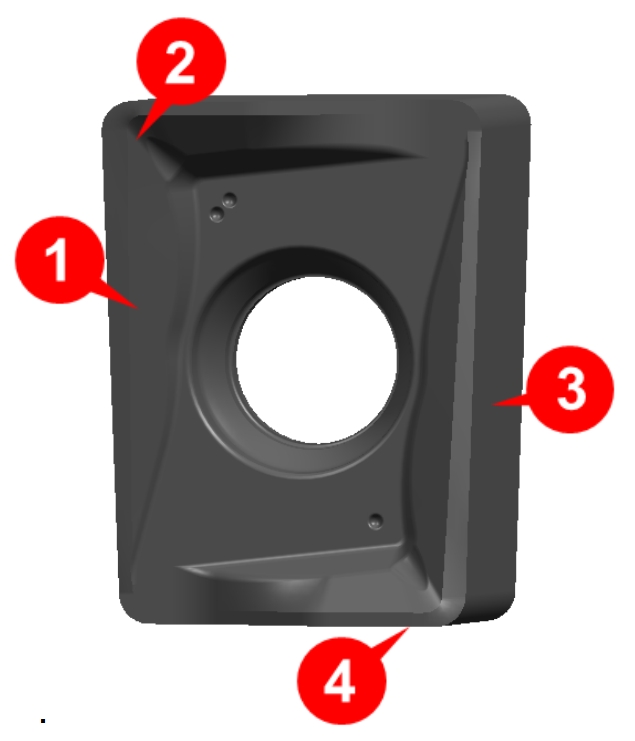

Geometry features
 |
|

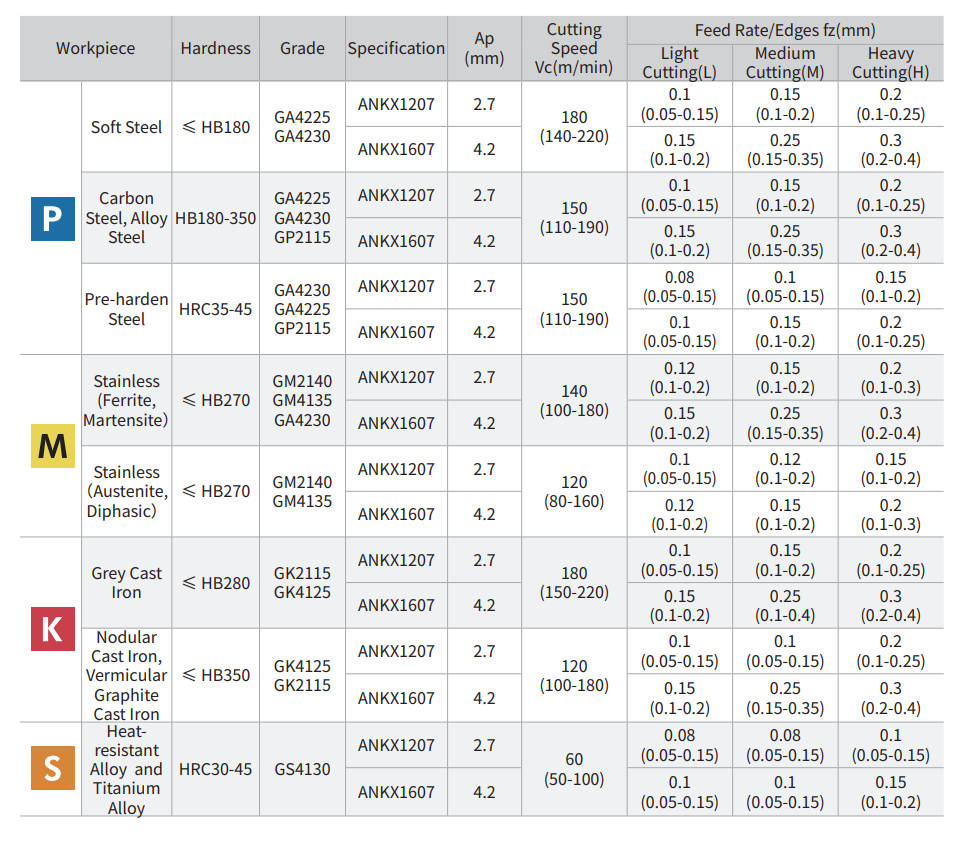

Grade matching
Paired with A,P, K, M, S milling grades, achieving comprehensive coverage of processed materials.
GA4225，GA4230，GP4225，GP2115，GPM7120，GK4125，GK2115，GM2140，GM4135，GS4130
Paired with cutter body series
| Product series | Side Clamp Type | Arbor |
| MEC190 | D32-D40 | D50-D200 |
| MHC190 | D32 | D50-D80 |

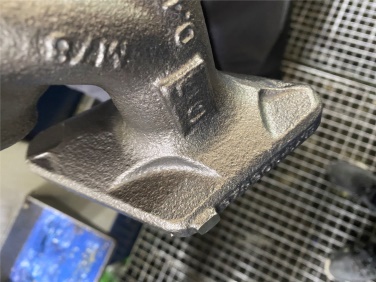

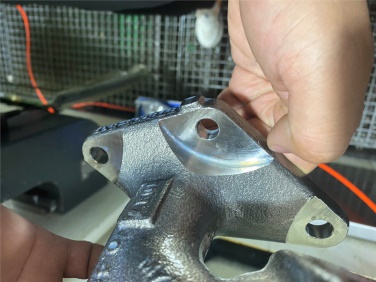

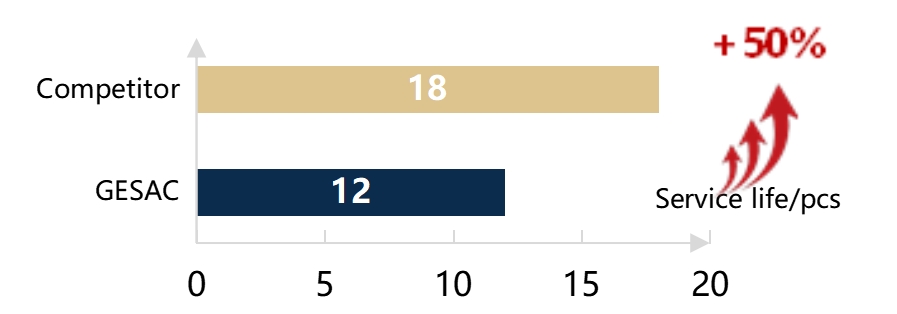

Turbocharged housing assembly machining
| Specification | ANKX160716R-GM |
| Grade | GM2140 |
| Material | K1.4837 |
| Cutting speed | Vc=73m/min |
| Feed rate | fz =0.06mm/z |
| Cutting depth | ap=2.5mm |
| Cooling method | Water based emulsion， External cooling |
| Cutting method | Shoulder milling |
