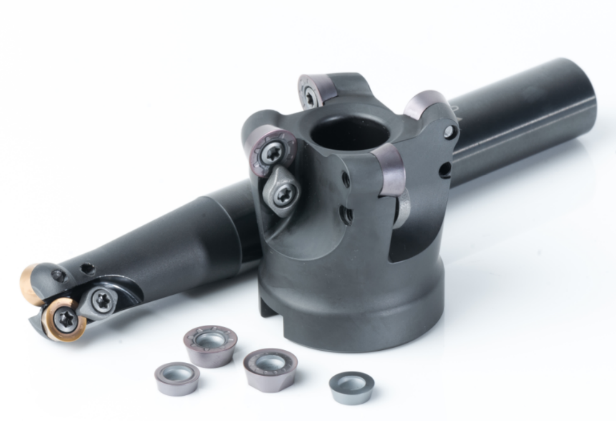

Positive profile milling RP insert+MPA100 cutter holder
1.With economical and high effciency,suitable for the profile milling of mould industry
2.With a full range of geometry,available from light cutting to heavy cutting
3.Suitable for semi-finish and roughing machining of steel
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
Cost-effective and efficient, ideal for mold industry’s contour roughing.
Comprehensive groove types, suitable for light to heavy-duty machining.
Economic and precision blade options are available to meet various customer needs.
Mainly used for roughing to semi-finish machining of steel.

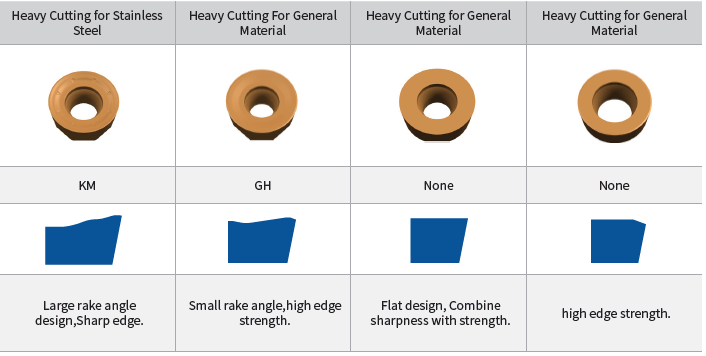

Geometry features

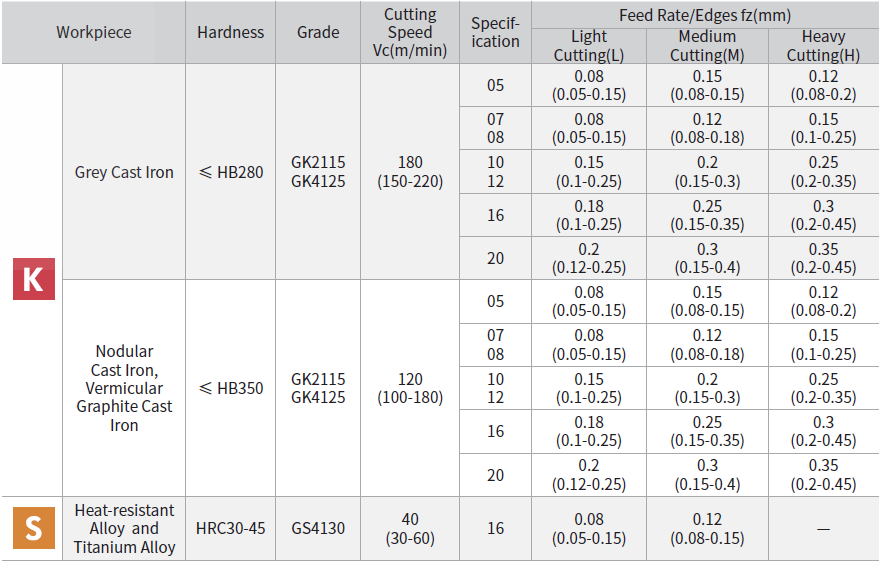

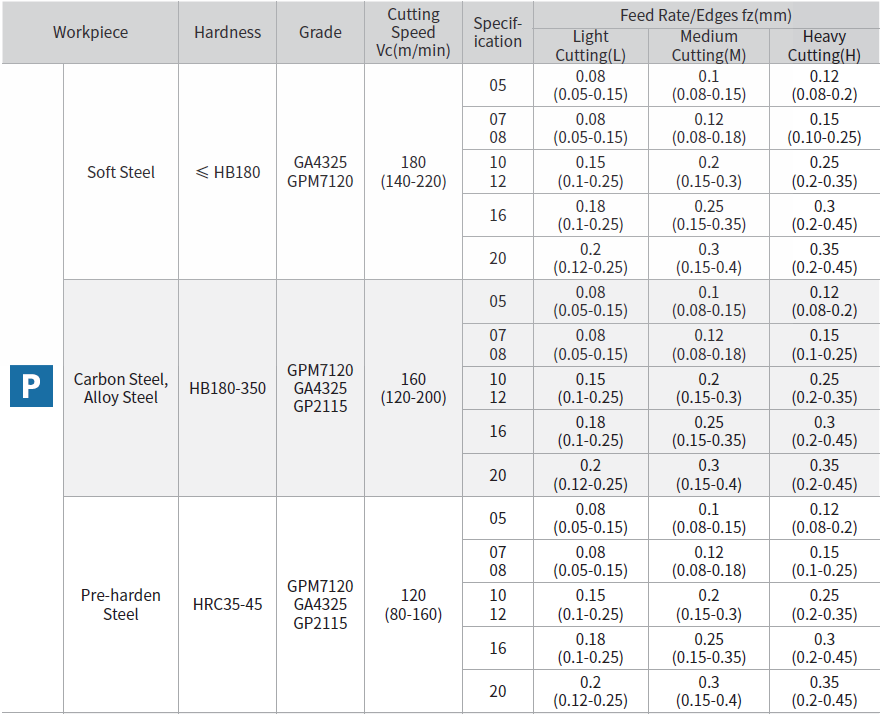

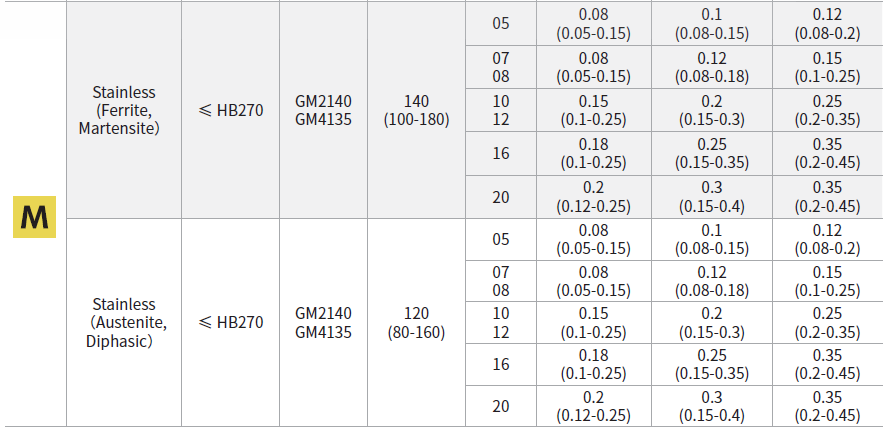

Grade matching
Paired with the general grades GA4325 and GA4230, stainless steel grade GM2140, cast iron grade GK4125, steel and high hardness grades GP2115, GH4115, and GPM7120
Paired with cutter body series
| Product series | Cylindrical Straight Type | Arbor |
| MPB100 | D16-D40 | D40-D125 |

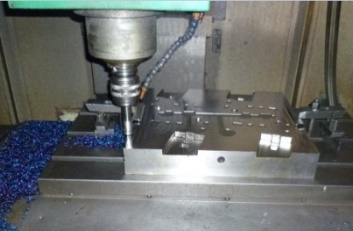

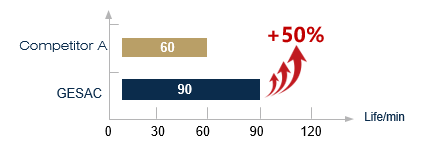

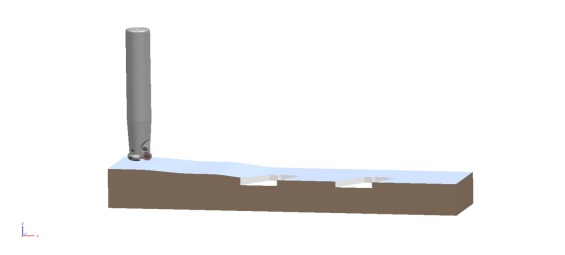

Mold Components Rough Machining
| Specification | RPEW1003M0T |
| Grade | GA4230 |
| Material | 50#Steel(HRC22-23) |
| Cutting speed | Vc=170m/min |
| Feed rate | fz =0.56mm/z |
| Cutting depth | ap=0.5mm |
| Cooling method | Air Cooling |
| Cutting method | Profile Rough Milling |
