Positive profile milling RC insert+MPA100 cutter holder
1.With economical and high effciency,suitable for the profile milling of mould industry
2.Anti-rotation design,ensure stable cutting
3.Suitable for semi-finish and roughing machining of steel
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
Cost-effective and efficient, ideal for mold industry’s contour roughing.
Comprehensive groove types, suitable for light to heavy-duty machining.
RC+MPC100 series products feature anti-rotation system design for more stable cutting process.
Economic and precision blade options are available to meet various customer needs.
Mainly used for roughing to semi-finish machining of steel.
Geometry features
Grade matching

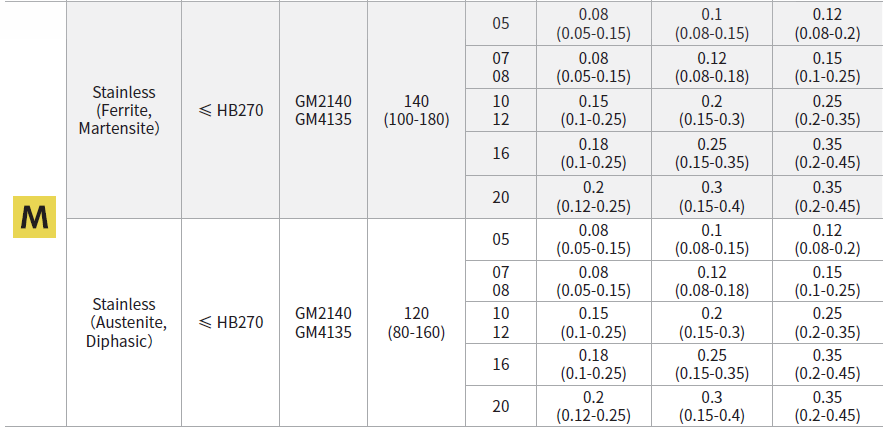

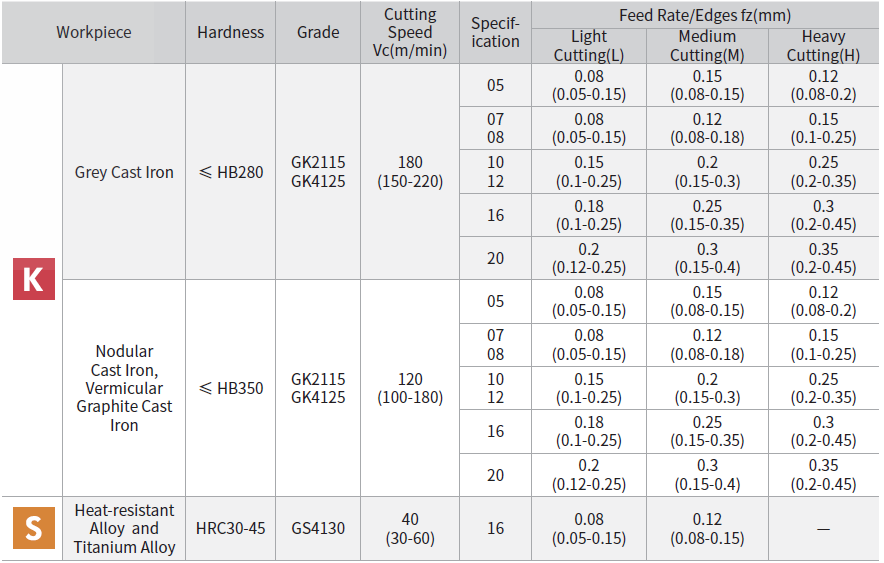

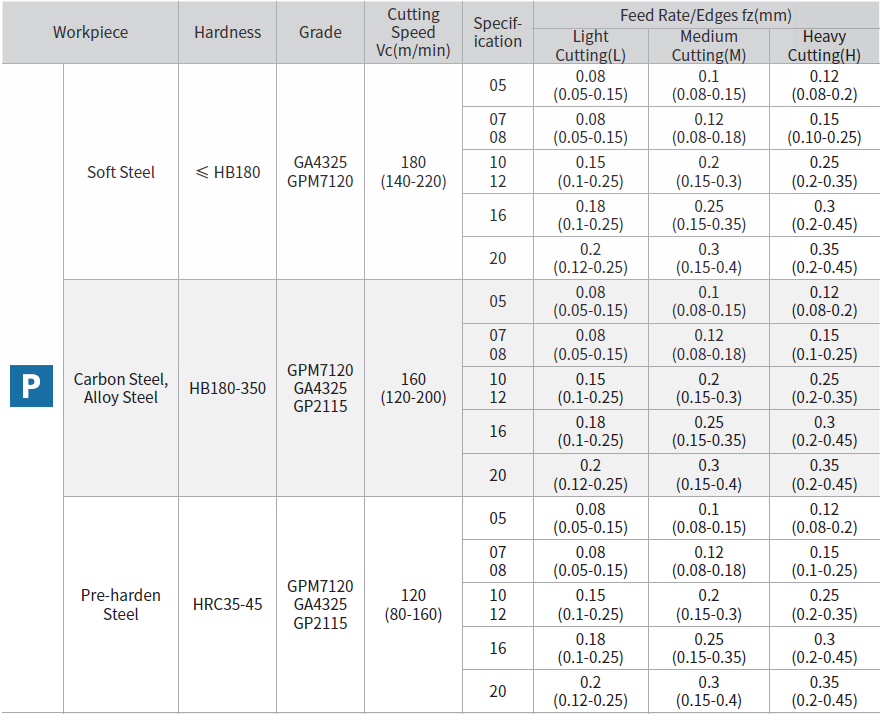

Paired with the general grades GA4325 and GA4230, stainless steel grade GM2140, cast iron grade GK4125, steel and high hardness grades GP2115, GH4115, and GPM7120
Paired with cutter body series
| Product series | Cylindrical Straight Type | Arbor |
| MPC100 | D20-D40 | D50-D160 |
Mold Parts Rough Machining
| Specification | RCET1204M0-EM |
| Grade | GA4230 |
| Material | P20(HRC26-28) |
| Cutting speed | Vc=148m/min |
| Feed rate | fz =1.17mm/z |
| Cutting depth | ap=0.7mm |
| Cooling method | Air Cooling |
| Cutting method | Rough Milling |
