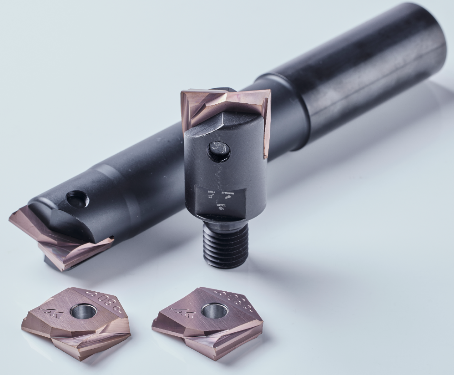

Radius Precision tools ZCEA(G) insert+MRA100/200 cutter holder
1.Suitable for efficient processing of high hardness materials
2.Two types of tool tip design combined with multi specification circular arc transition structure design meet the processing of different profiles
3.Anti reverse loading structure design, bringing intimate experience to users
 |
 |
- Feature
- Application
- Application case
Product features
Helical groove design effectively reduces cutting resistance.
The addition of a back rake design ensures strength while increasing the clearance space at the rear.
V-shaped positioning surface and patented guide rail structure provide a more secure installation and high machining accuracy.
Seven size specifications from D10 to D32, with fillet radii ranging from R0.3 to R3.0, and two groove types, SG and SV, cater to various working conditions.
Suitable for rough, semi-finish, and finish machining of steel (up to 60HRC) and cast iron.
Geometry features
 |
ZCEG*SG Groove：
|
 |
ZCEG*SV Groove：
1. Small helical groove design: Effectively reduces cutting resistance, suitable for efficient semi-finish to finish machining of vertical walls. 2. Double GASH design: Ensures rigidity while increasing chip removal space. 3. V-shaped positioning surface and patented guide rail structure design: Prevents installation accuracy degradation caused by incorrect blade installation.
|
Grade matching
Paired with H milling grades
GH4115、GHM7120
Paired with cutter body series
| Product series | Replaceable Tool Head | Cylindrical Straight Type | Alloy Welding Type |
| MRA100/200 | D10-D32 | D10-D32 | D10-D32 |

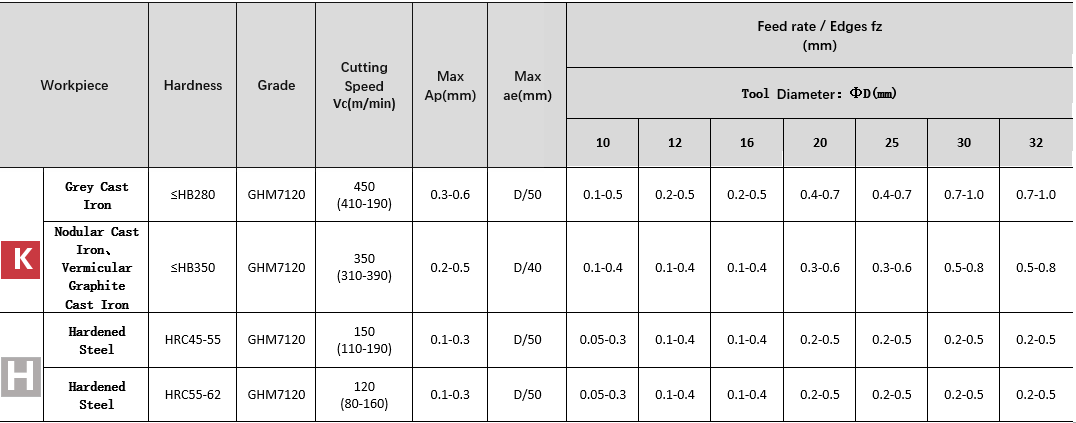

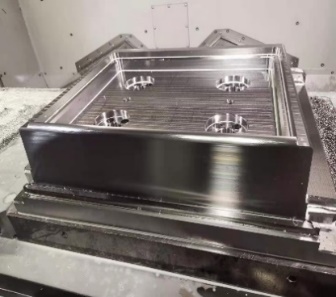

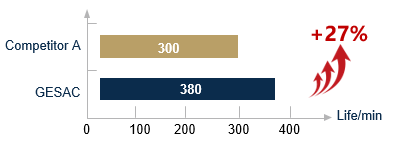

Plastic Mold Parts Machining
| Specification | ZCEG200R10-SV |
| Grade | GHM7120 |
| Material | 738(HRC28) |
| Cutting speed | Vc=345m/min |
| Feed rate | fz =0.25mm/z |
| Cutting depth | ap=0.18mm |
| Cooling method | Water-based Emulsion, External Cooling |
| Cutting method | Spiral downcut climb milling |
