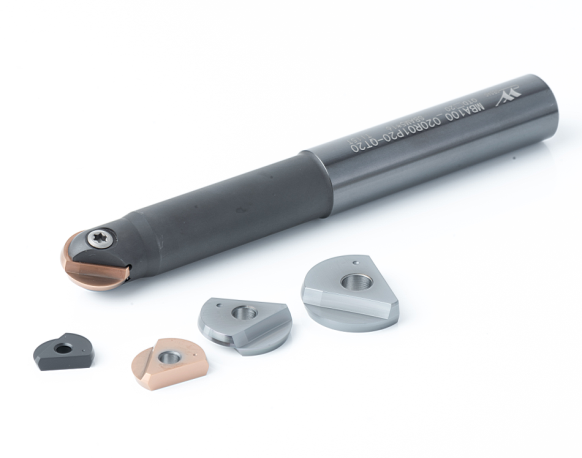

QTD+MBA100
1.Full Rshape design,there are edges available even in the cutting for straight wall face
2.Special edge design,ensure the edge with higher strength
3.Suitable for finishing machining of steel,cast iron and hardened steel
 |
 |
 |
- Feature
- Application
- Application case
Product features
Full R-shaped construction, even when processing straight wall surfaces, there is a corresponding cutting edge.
The design of the small straight section on the back rake face has high edge strength.
The cutting edge is formed in one go, with high R precision.
Mainly used for finishing of high-hardness steel and cast iron materials.
Covers sizes D12-D32, meeting various machining needs.
Geometry features
QTD：
1. R-shaped cutting edge design: Small cutting force, high machining accuracy.
2. Two-sided double-edged design: Improves machining efficiency.
3. Small straight segment design on the back edge: High edge strength.

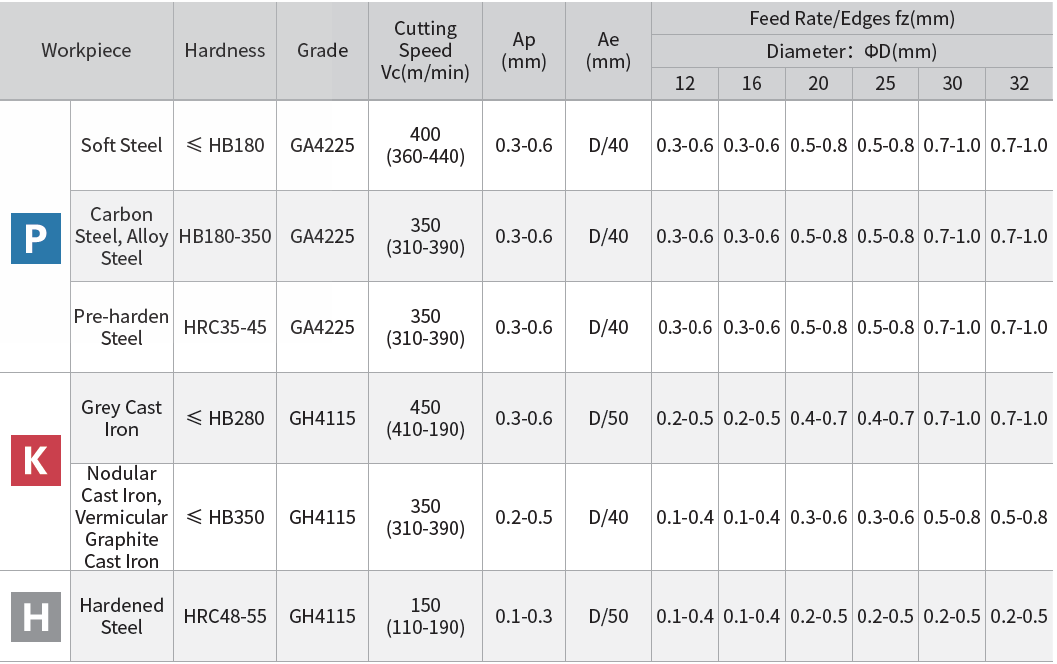

Grade matching
Paired milling grades for general materials and high-hardness steel.
GA4225、GH4115
Paired with cutter body series
| Product series | Replaceable Tool Head | Cylindrical Straight Type | Taper Joint Cylindrical Straight Shank |
| MBA100 | D12-D32 | D12-D32 | D12-D32 |

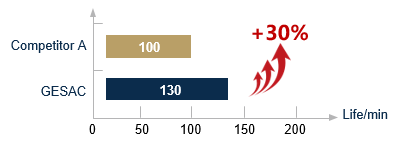

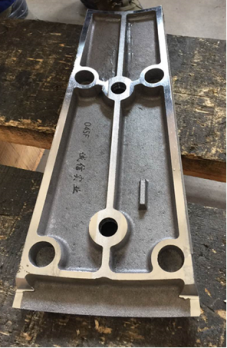

Split cone molds machining
| Specification | QTD2005 |
| Grade | GH4115 |
| Material | Steel(HRC40) |
| Cutting speed | Vc=188.4m/min |
| Feed rate | fz =0.5mm/z |
| Cutting depth | ap=0.3mm |
| Cooling method | Air Cooling |
| Cutting method | Finish Milling |
