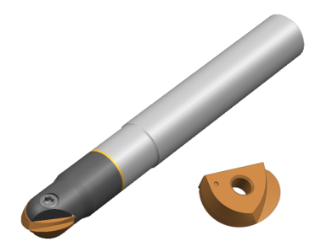

Finishing ballnose milling QTD-S-T insert+MBA100/200 cutter holder
1.Full Rshape design,there are edges available even in the cutting for straight wall face
2.Curve edge design,ensuring small resistance
3.Suitable for finishing machining of steel,cast iron and hardened steel
 |
 |
 |
- Feature
- Application
- Application case
Product features
Full R-shaped construction, with corresponding cutting edge for straight wall machining.
Unique cutting edge design, providing higher blade edge strength.
QTD-S-T combined with curved edge design, effectively reduces cutting resistance.
Primarily used for precision machining of steel, cast iron, and hardened steel materials.
Covers sizes D12-D32, meeting various machining needs.
Geometry features
QTD*S-T：
1. R-shaped cutting edge design: Corresponding cutting edge for straight wall machining.
2. Unique cutting edge design: Higher blade edge strength.
3. Curved edge design: Effectively reduces cutting resistance.

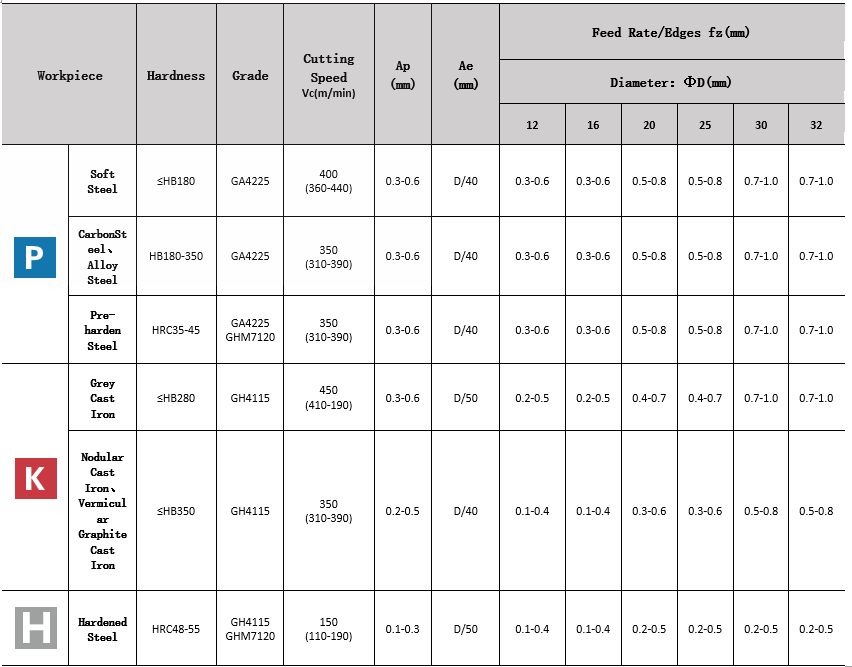

Grade matching
Paired milling grades for general materials and high-hardness steel.
GA4225、GH4115、GHM7120
Paired with cutter body series
| Product series | Replaceable Tool Head | Cylindrical Straight Type | Taper Joint Cylindrical Straight Shank |
| MBA100 | D12-D32 | D12-D32 | D12-D32 |

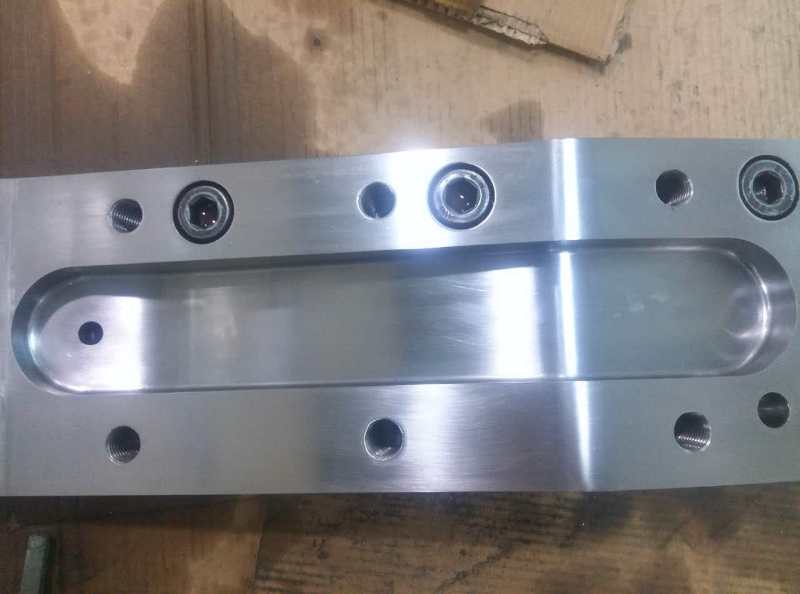

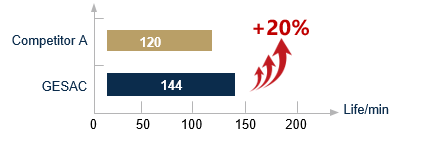

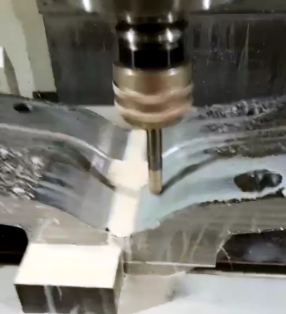

Mold Steel Parts machining
| Specification | QTD1604-S-T |
| Grade | GHM7120 |
| Material | Cr12(HRC58) |
| Cutting speed | Vc=200m/min |
| Feed rate | fz =0.25mm/z |
| Cutting depth | ap=0.5mm |
| Cooling method | Air Cooling |
| Cutting method | Profile Milling |
