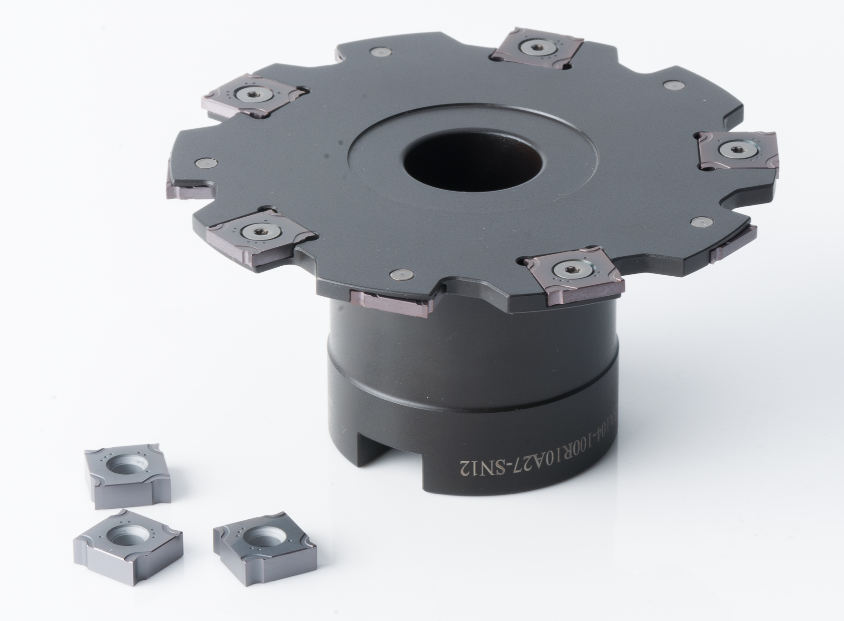

Narrow slot three face edges slot milling SNEX insert + MSA104-108 cutter holder
1.Sharp edge design,ensure reduce cutting resistance
2.There are 5 different widths of slot available
3.Suitable for semi-finishing and roughing machining of steel and cast iron
 |
 |
 |
- Feature
- Application
- Application case
Product features
Sharp edge design, ensure reduce cutting resistance;
There are 5 different widths of slot available;
Suitable for semi-finishing and roughing machining of steel and cast iron

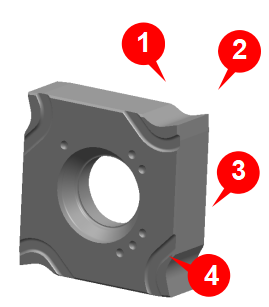

Geometry features
 |
1. Special chip return groove design: control the flow direction of chips.
2.sharp tip: reduce cutting resistance, brisk cutting. 3. Fully ground blade: good processing accuracy and positioning accuracy. 4. Avoidance groove design: reduce blade friction. |
Grade matching
Paired with P, K milling grades,.
GA4230、GK4215
Paired with cutter body series
| Product series | Arbor |
| MSA(104-108) | D100 |

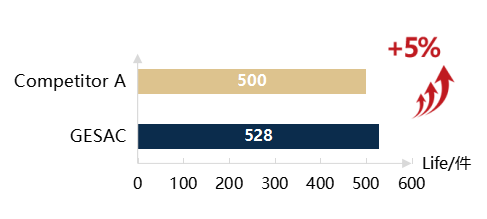

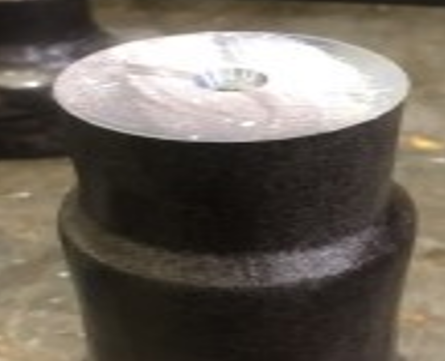

Spindle nose machining
| Specification | SNEX1203-GM |
| Grade | GA4230 |
| Material | 20Mn |
| Cutting speed | Vc=250m/min |
| Feed rate | fz =0.025mm/z |
| Cutting depth | ap=60mm,ae=2mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Cut off |
