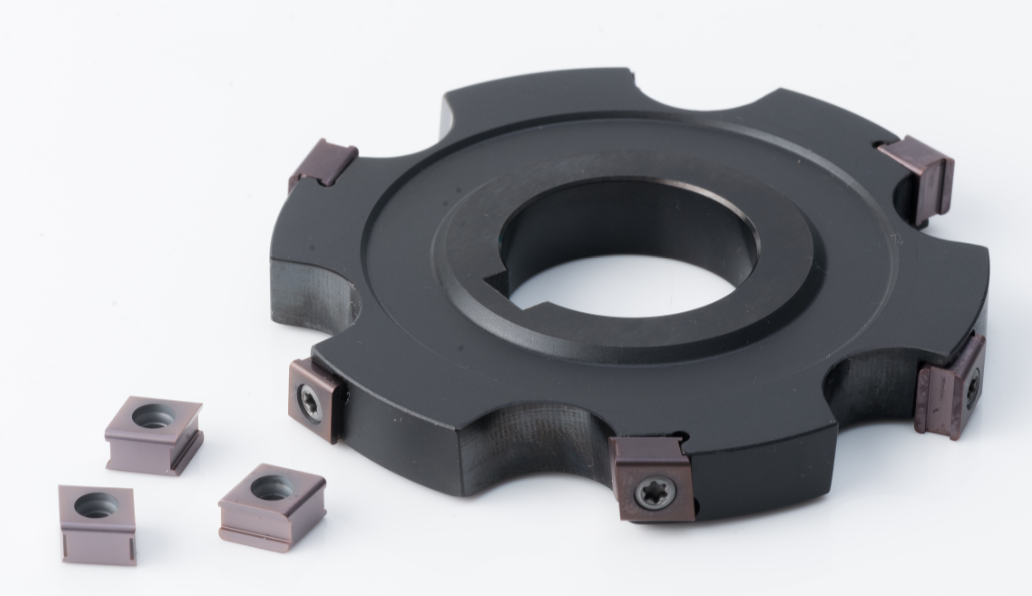

Medium slot three face edges slot milling CNEU insert + MSA110-113 cutter holder
1.Positive cutting performance,the cutting is light and fast
2.Grinding type changing rake angle design, Ensures reduced cutting resistance
3.Suitable for semi-finishing and roughing machining of steel and cast iron
 |
 |
 |
- Feature
- Application
- Application case
Product features
Positive cutting performance, the cutting is light and fast;
Grinding type changing rake angle design, Ensures reduced cutting resistance;
Suitable for semi-finishing and roughing machining of steel and cast iron

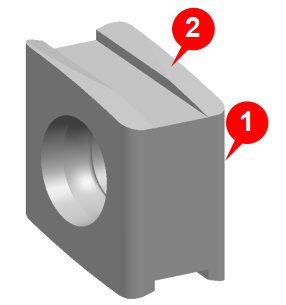

Geometry features
 |
1. Fully ground insert: good processing accuracy and positioning accuracy.
2. Two-section rake angle design: reduce cutting resistance and cut briskly. |

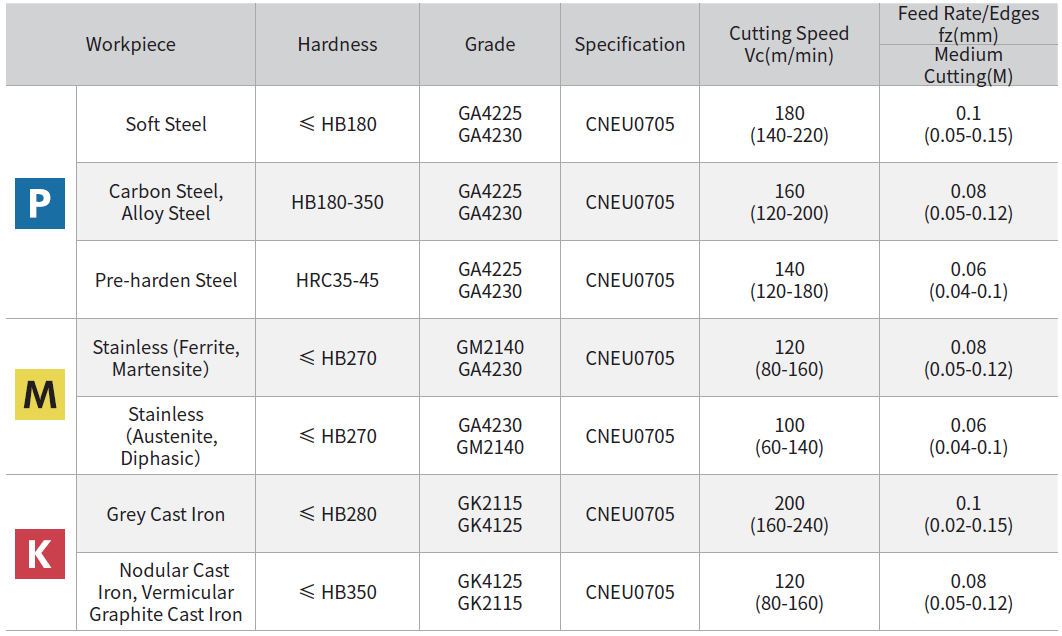

Grade matching
Paired with P, K, milling grades.
GA4225、GA4230、GK4215、GK2115
Paired with cutter body series
| Product series | Shell | Arbor |
| MSA(110~113) | D80-D160 | D80-D160 |

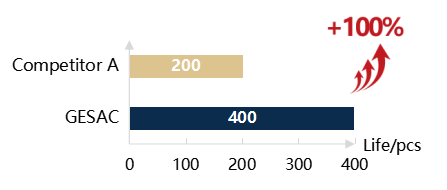

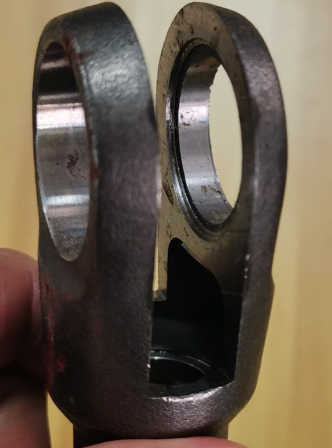

Link support sleeve machining
| Specification | CNEU070508-PM |
| Grade | GA4225 |
| Material | 42CrMo(HRC40-45) |
| Cutting speed | Vc=132m/min |
| Feed rate | fz =0.025mm/z |
| Cutting depth | ap=1mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Slot milling |
