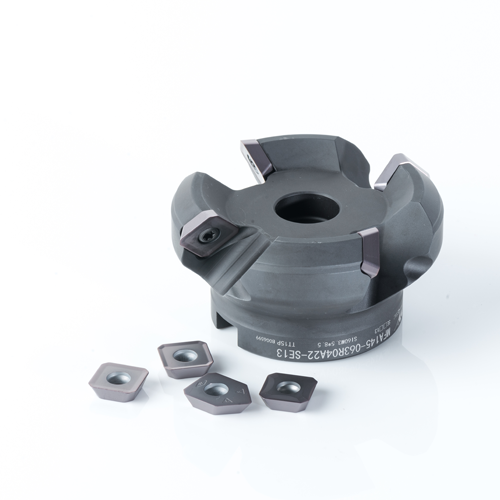

Positive four edges 45°face milling SEE(M)T insert+MFA145 cutter holder
1.Single-face positive insert with four edges various breaker designs
2.Suitalbe for finishing and semi-finishing machining of steel,cast iron and stainless steel
 |
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
Single-face positive insert with four edges various breaker designs ;
The insert is with wiper design, suitable for finishing machining ;
Suitable for finishing and semi-finishing machining of steel, cast iron and stainless steel.
Geometry features
| Light Cutting for General Material | Medium Cutting for General Material | Heavy Cutting for General Material | Medium Cutting for Cast iron | Rough Cutting for Cast iron | General cutting for Aluminum alloys | Wiper |
 |
 |
 |
 |
 |
 |
 |
| PL | PM | PH | KM | KH | AL | WB |
 |
 |
 |
 |
 |
 |
 |
| Large rake angle with Narrow edge width. Suit for light milling with low cutting speed and low feed. | Large rake angle design, easy cutting High stability milling can be achieved under general cutting conditions. | Strong cutting edge for interrupted cutting condition. Excellent performance when removing black skin. | The chipbreaker specially for cast iron. Suitable for medium cutting. | Special chipbreaker for cast iron. Suitable for interrupted cutting condition and excellent performance when removing black skin under rough machining. | Large rake angle, Sharp cutting edge,mirror polished, smoothly chip removal. | With big circle wiper edge,improve the surface quality. |
Grade matching
Match with general milling grades
GA4225、GA4230、GA4325、GPM7120、GP4225、GM2140、GK4125、GK2115、GS4130、GN9125、GP01TM
Paired with cutter body series
| Product series | Cylinder straight shank | Arbor |
| MFA145 | D50-63 | D50-D200 |
Flameproof plate machining
| Specification | SEET13T3AGEN-PM |
| Grade | GM2140 |
| Material | 45# |
| Cutting speed | Vc=297m/min |
| Feed rate | fz =0.08mm/z |
| Cutting depth | ap=0.15mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Face milling |
| Result | Compared with Competitior A, the insert life is improved by 100%, and the processing surface has no machining marks, the processing surface is bright. |
