Positive eight edges 43°face milling ODK(M)T insert+MFA143 cutter holder
1.Positive insert with eight edges,high economical efficiency
2.Suitable for finishing and semi-finishing machning of steel,cast iron and aluminum alloy
 |
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
Positive insert with eight edges, high economical efficiency
The insert is with wiper design, suitable for finishing machining
Suitable for finishing and semi-finishing machining of steel, cast iron and aluminum alloy
Geometry features
| Light Cutting for General Material | Medium Cutting for General Material | Heavy Cutting for General Material | General cutting for Aluminum Alloys | Wiper |
 |
 |
 |
 |
 |
| GL | GM | GH | AL | WB |
 |
 |
 |
 |
 |
| Large rake angle with narrow edge width. Suitable for light milling with low cutting speed and low feed | Large rake angle smoothly cutting. High stability milling can be achieved under general cutting conditions. | Wide chip pocket with strong cutting edge for Rough cutting. | Large rake angle,sharp cutting edge,good polishment and good chip control. | Wiper design to improve the surface quality. |
Grade matching
Match with general milling grades
GA4225、GA4230、GPM7120、GP4225、GM2140、GK4125、GK2115、GS4130、GN9125
Paired with cutter body series
| Product series | Arbor |
| MFA143 | D40-D200 |

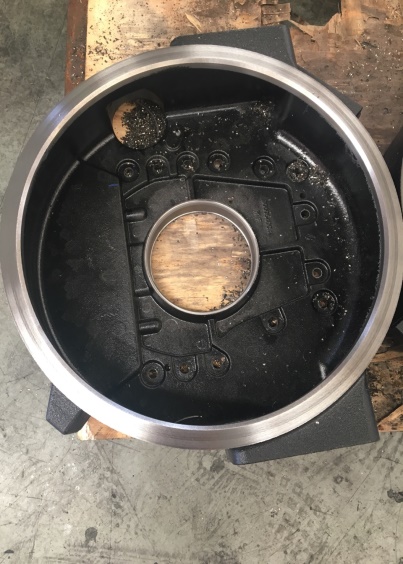

Car flywheel machining
| Specification | ODKT060508-GM |
| Grade | GK4125 |
| Material | HT300 |
| Cutting speed | Vc=220m/min |
| Feed rate | fz =0.2mm/z |
| Cutting depth | ap=0.2mm |
| Cooling method | Water based emulsion/outer cooling |
| Cutting method | Face milling |

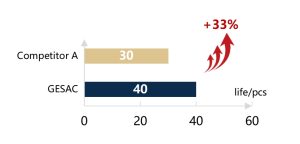

| Result | The machining surface quality is better than Competitor A, and the life is increased by 33% |
