Negative eight edges 45°/75°/88° face milling SNE(M)U insert+MFB145/245/275/288 cutter holder
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
 |
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
●The insert is with thickening double face negative eight edges design, good strength, stable processing
● There are different cutting edge angles of 45°/75°/88°/ R radius
● There are sparse teeth,dense teeth and super dense teeth for choice. Suitable for different cutting conditions
● MFB145 series is with Shim to protect the cutter holder
● Suitable for the semi-finishing and roughing face milling of steel and cast iron

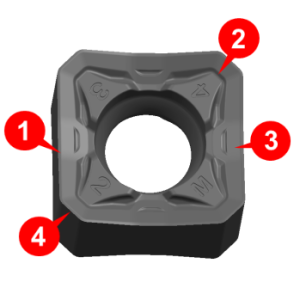

Geometry features
 |
1.Curved edge design: reduce cutting resistance, and process more quickly 2.Special positioning surface design: The special positioning surface design ensures stable clamping, and special knife pads can be installed to protect the tool body. 3.Variable rake angle design: sharp rake angle of the cutting tip to reduce cutting resistance; The rake angle of the main cutting edge is reduced to ensure the strength of the cutting edge. 4Wiper design: Good surface quality can be achieved in face milling. |

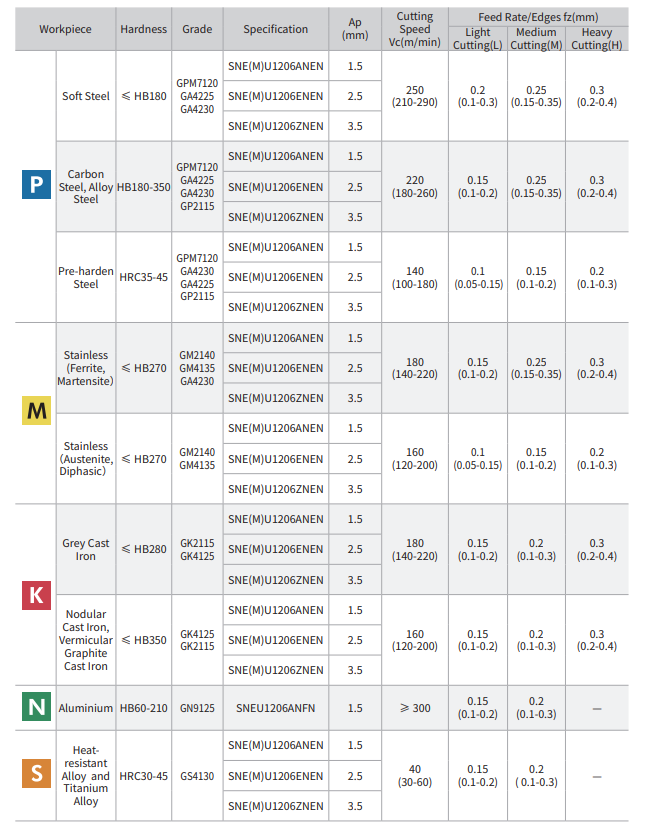

Grade matching
Paired with A,P, K, M, S and N milling grades, achieving comprehensive coverage of processed materials.
GA4225，GA4230，GA4325，GPM7120，GP4225，GP2115，GK4125，GK2115，GM2140，GS4130，GN9125

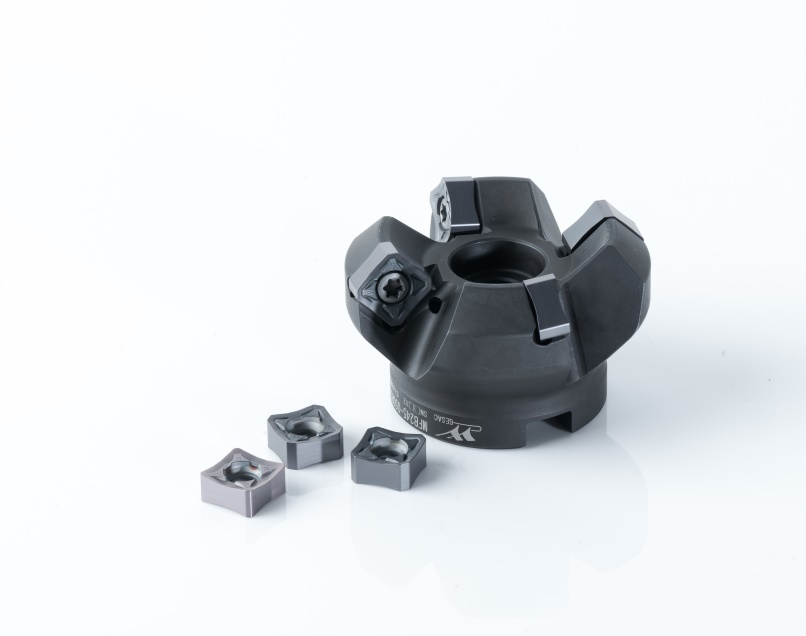

Paired with cutter body series
| Product series | Arbor | Cylindrical Straight Type |
| MFB145 | D50-D315 | / |
| MFB245 | D50-D315 | / |
| MFB275 | D50-D315 | / |
| MFB288 | D50-D315 | D40 |

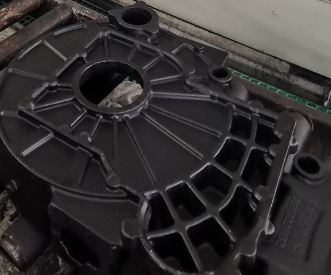

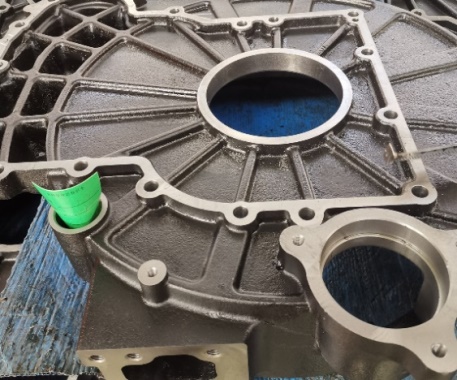

Flywheel housing machining
| Specification | SNEU1206ZNEN-GM |
| Grade | GK2115 |
| Material | HT250 |
| Cutting speed | Vc=148m/min |
| Feed rate | fz =0.12mm/z |
| Cutting depth | ap=5mm |
| Cooling method | Dry cut |
| Cutting method | Face milling |
