Negative twelve Edges 15°/45°/60° face Milling HNGU inserts + MFC115/ MFC145/ MFC160 / Cutter Holders
1.Double-side with 12 cutting edges achieving cost effective
2.The sectional cutting edge design for the inserts which make the insert is matched with 3 different entering angle holders
3.Suitable for roughing and semi-finishing of steel, stainless steel and cast iron
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
●Double-side with 12 cutting edges achieving cost effective.
● The sectional cutting edge design for the inserts which make the insert is matched with 3 different entering angle holders.
● Have both Sparse pitch and dense pitch available, suitable for all kinds of machining requirement.
● Suitable for roughing and semi-finishing of steel, stainless steel and cast iron.

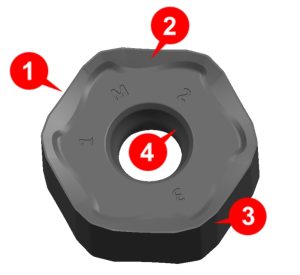

Geometry features
 |
|
Grade matching
Paired with P, K, M, S milling grades, achieving comprehensive coverage of processed materials.
GPM7120，GP2115，GK4125，GK2115，GM2140，GM4135，GS4130

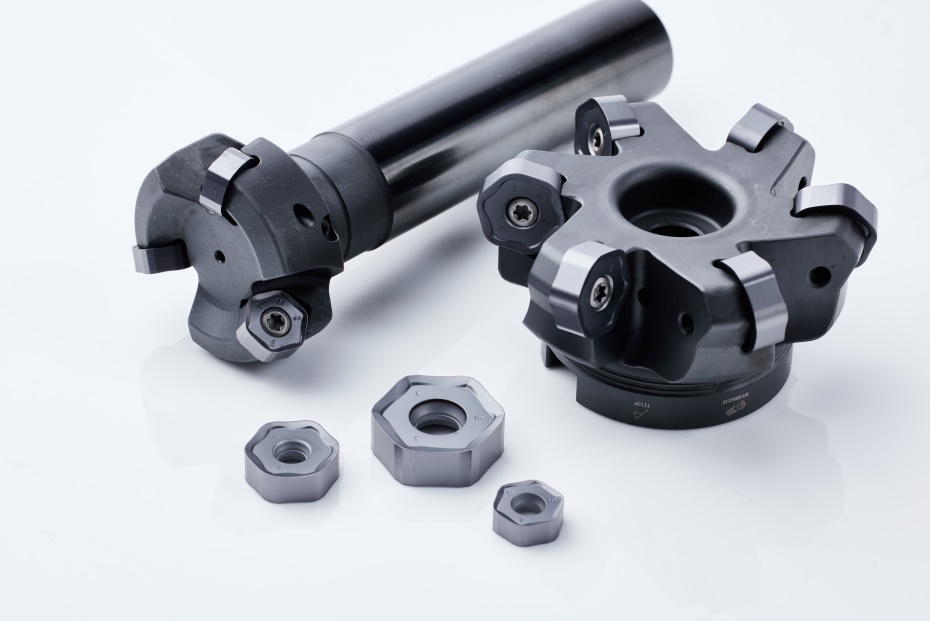

Paired with cutter body series
| Product series | Arbor | Cylindrical Straight Type | Replaceable Tool Head | Side Clamp Type |
| MFC115 | D40-D160 | D25-D32 | D25-D32 | / |
| MFC145 | D40-D315 | D25-D40 | D25-D32 | D25-D40 |
| MFC160 | D40-D250 | / | / | / |

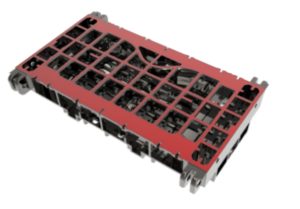

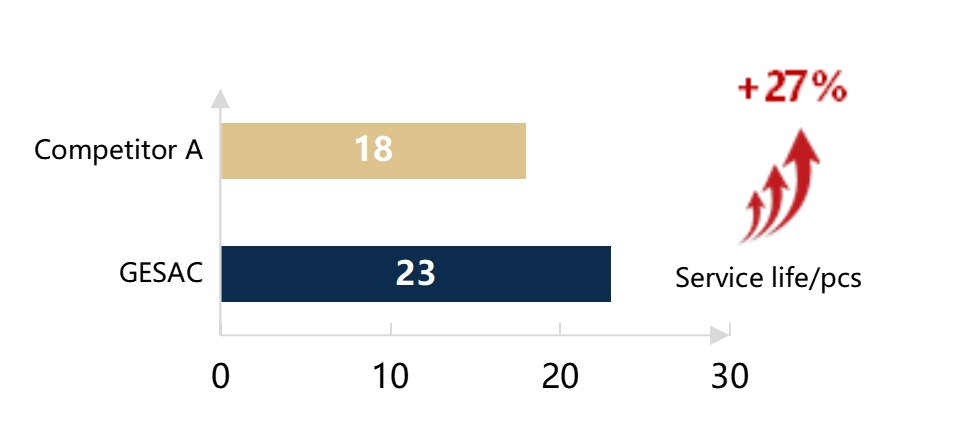

Mold baseplate machining
| Specification | HNGU0905ANEN-GM |
| Grade | GK4125 |
| Material | HT250 |
| Cutting speed | Vc=160m/min |
| Feed rate | fz =1.48mm/z |
| Cutting depth | ap=1.2mm |
| Cooling method | Dry cut |
| Cutting method | Face milling |
