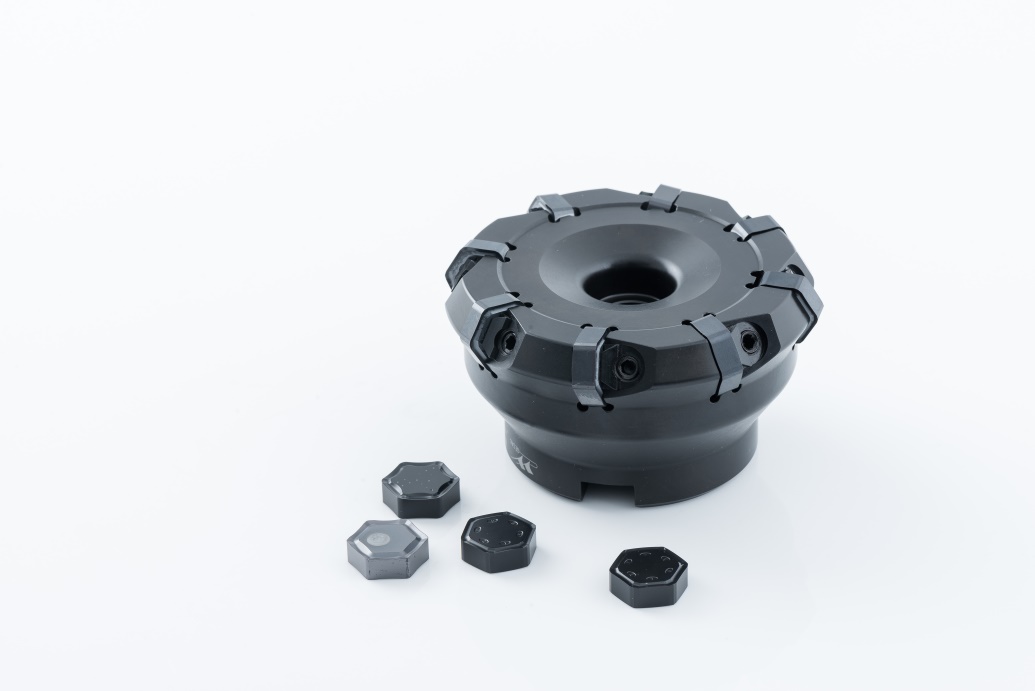

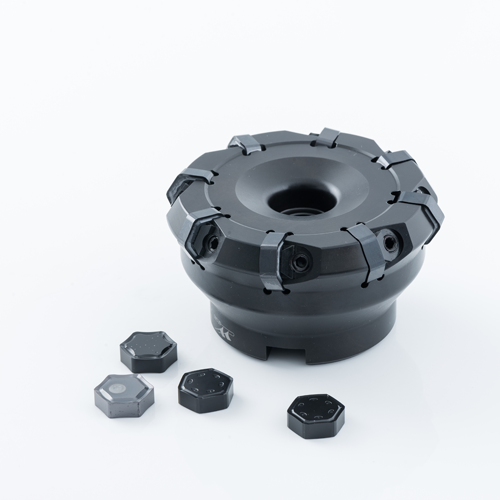

Negative twelve edges 60° face milling HNE(M)X insert + MFB160/MFB260 Cutter Holder
1.Double-sided negative 12-edged insert design for cost effective and strength, for machining cast iron materials
2.The MFB160 has an adjustable mechanism to ensure surface quality
3.Mainly used for roughing to finish machining of cast iron materials
 |
- Feature

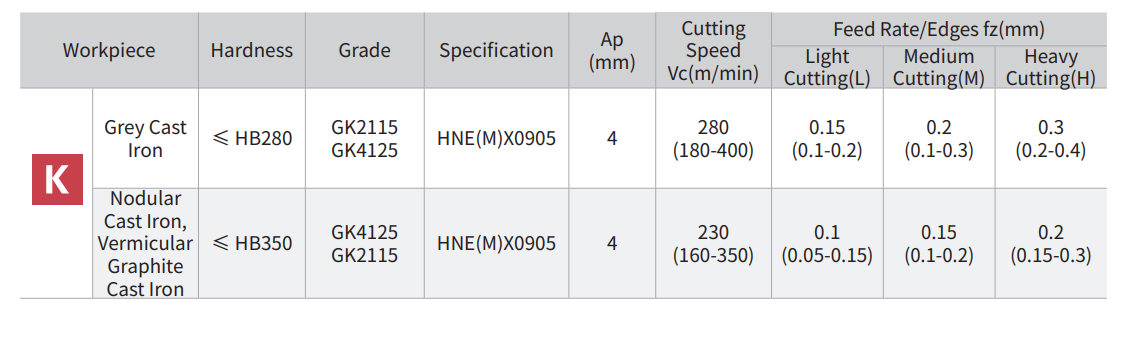

- Application
- Application case
Product features
● Double-sided negative 12-edged insert design for cost effective and strength, for machining cast iron materials
● The MFB160 has an adjustable mechanism to ensure surface quality
● The MFB160 is available with a choice of sparse and dense teeth to cope with different cutting conditions
● Mainly used for roughing to finish machining of cast iron materials

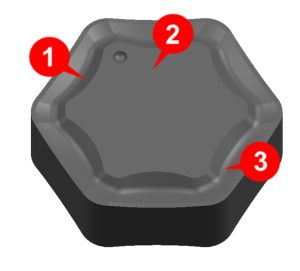

Geometry features
 |
|
Grade matching
With the special grades of cast iron materials GK4125 and GK2115, it covers common cast iron processing conditions
Paired with cutter body series
| Product series | Arbor |
| MFB160 | D125-D315 |
| MFB260 | D63-D315 |

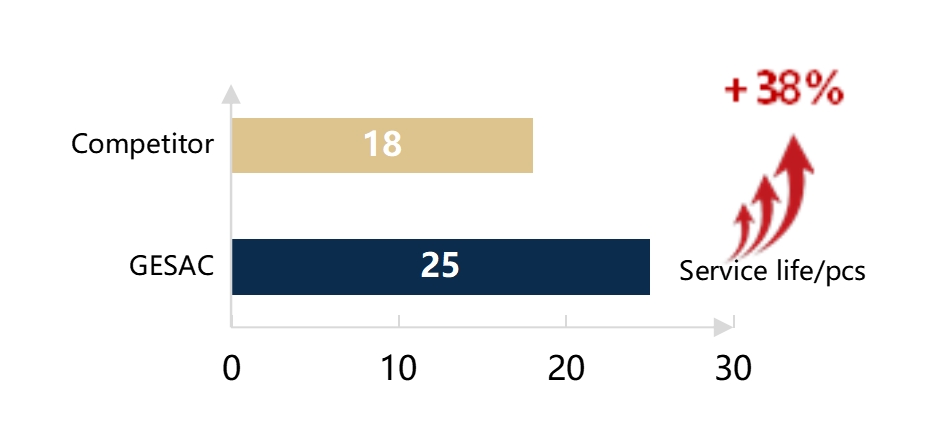

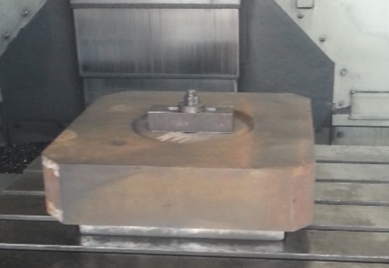

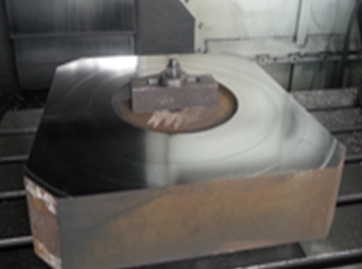

Tool table machining
| Specification | HNEX090520-KM |
| Grade | GK4125 |
| Material | QT500 |
| Cutting speed | Vc=200m/min |
| Feed rate | fz =0.25mm/z |
| Cutting depth | ap=1.5mm |
| Cooling method | Dry cut |
| Cutting method | Face milling |
