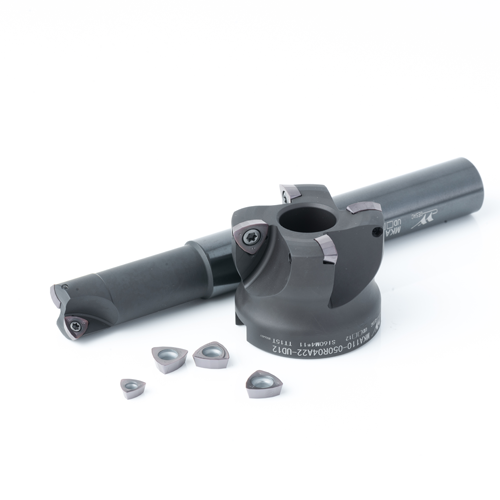

Positive triple edges high feed milling UD/UP insert + MKA110 cutter holder
1.Multi segments line edge design,Improves cutting effect in different cutting depth
2.There are 3 size inserts with different geometries,available for cutting in most of the Available for the majority of cutting conditions
3.Suitable for roughing machining of steel, cast iron and stainless steel
 |
 |
 |
 |
- Feature
- Application
- Application case
Product features
Multi segments line edge design,Improves cutting effect in different cutting depth.
With resistance-reduce groove design,ensure to reduce the cutting
temperature.
There are 3 size inserts with different geometries,available for cutting
in most of the Available for the majority of cutting conditions.
Suitable for roughing machining of steel, cast iron and stainless steel.
Geometry features
 |
|

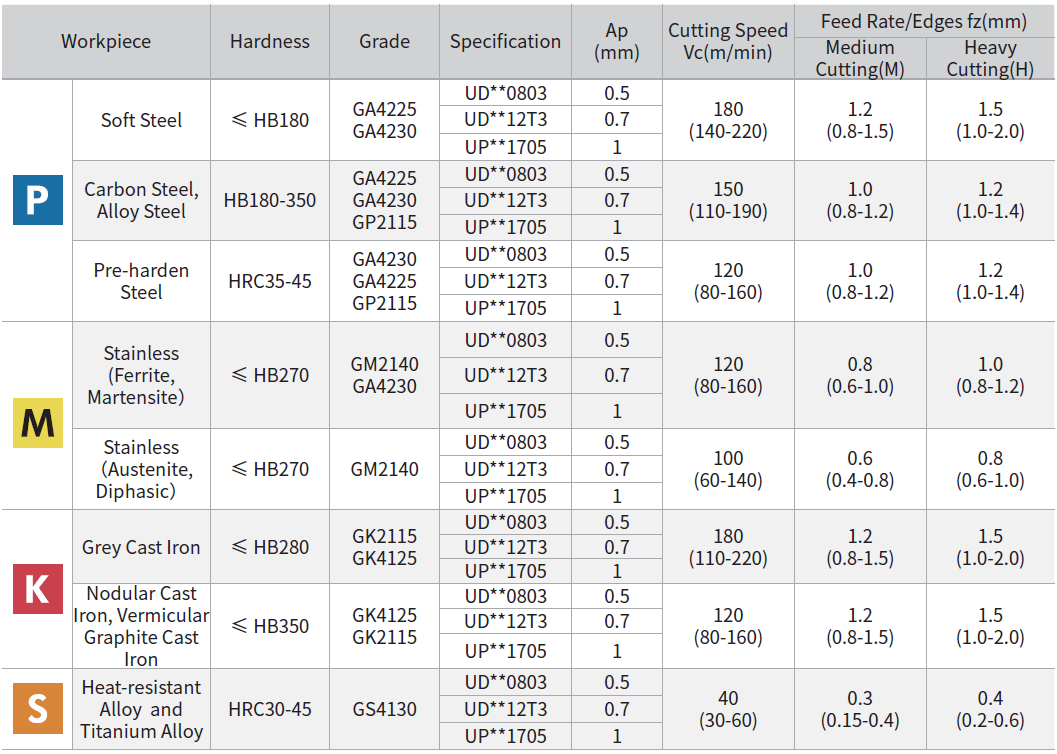

Grade matching
Paired with P, K, M, and S milling grades, achieving comprehensive coverage of processed materials.
GA4225、GA4230、GP2115、GK4125、GK2115、GM2140、GS4130
Paired with cutter body series
| Product series | Replaceable tool head | Cylinder straight shank | Arbor |
| MKA110 | D20-D35 | D20-D35 | D40-D100 |
Mounting plate machining
| Specification | UDMT12T312T-MH |
| Grade | GA4225 |
| Material | Q345R(HB180) |
| Cutting speed | Vc=188m/min |
| Feed rate | fz =0.5mm/z |
| Cutting depth | ap=0.7mm |
| Cooling method | Dry |
| Cutting method | Face milling |
