With the proliferation of 5G technology and the demand for lightweight consumer electronics, aluminum alloy Mobilephone mid-frames have become the mainstream material choice for mobile devices, owing to their high strength, superior thermal conductivity, and aesthetic appeal.
Aluminum alloy machining is prone to issues such as built-up edge, burrs, and deformation, posing stringent challenges to cutting tools in terms of wear resistance, cutting performance, and stability.

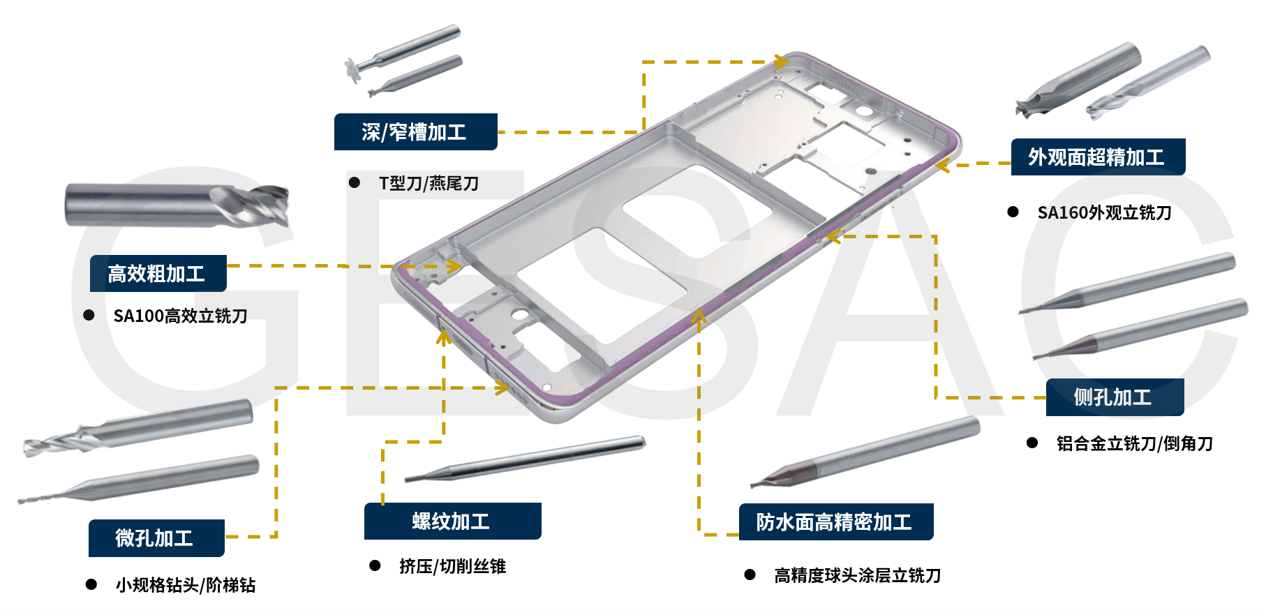

Aluminum Alloy Smartphone Mid-Frame
♦ Key Products
| Tool Type | Sketch Map | Product Features |
| High-Efficiency Roughing End Mill for Aluminum Alloys |
 |
1.U-Shaped Flute Design Delivers Maximum Chip Evacuation Capacity High-Efficiency Roughing End Mill for Aluminum Alloys Aesthetic-Finish End Mill for Aluminum Alloys 2. Mirror-Polished Flutes Ensure Uninterrupted Chip Flow 3. Wiper Edge Technology for Enhanced Surface Integrity 4.DLC Chromatic CoatingTechnology-Ultra-Low Friction Coefficient Effectively Suppresses Built-Up Edge (BUE), While Surface Hardness Enhancement Significantlylmproves Tool Wear Resistance |
| Aesthetic-Finish End Mill for Aluminum Alloys |
 |
1.Proprietary High-Gloss Mirror Finishing Tool- Eliminates Centerless Grinding Marks and Prevents Cutting Edge Defects 2.Proprietary Peripheral Land Geometry-Effectively Suppresses Machining Vibration and Eliminates Dimensional Discrepancy(High/Low Spots) 3.Proprietary Grinding& Edge Honing Process-Superior Chip Evacuation, Minimizes Rake Face Adhesion and BUE Formation Ultra-Precise Edge Preparation Eliminates Tool Mark Defects |

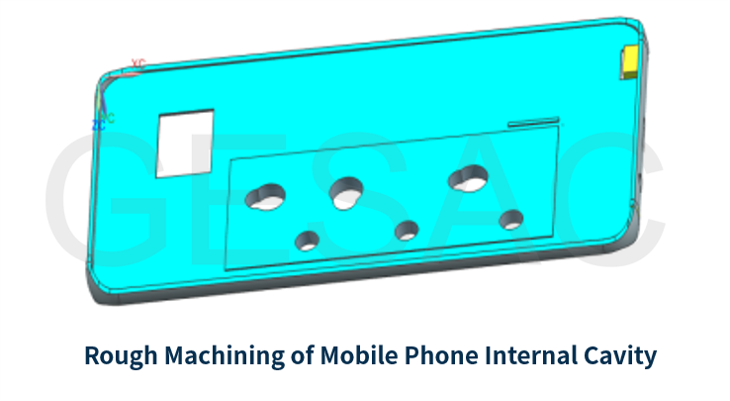

Case1:Rough Machining of Mobile Phone Internal Cavity
| Tool Name | Aluminum Alloy High-Efficiency End Mil! |
| Tool specification | D10*25*75*d10*3E |
| Processing Materials | AI6063(HV80) |
| Cutting speed | 12000rpm(376.8m/min) |
| Feed speed | 8500mm/min (0.71mm/z) |
| Cutting Mode | Face Milling |
| Cutting Depth | ap=1.0mm,ae=8.0mm |
| Cooling Mode | Water-based emulsion |

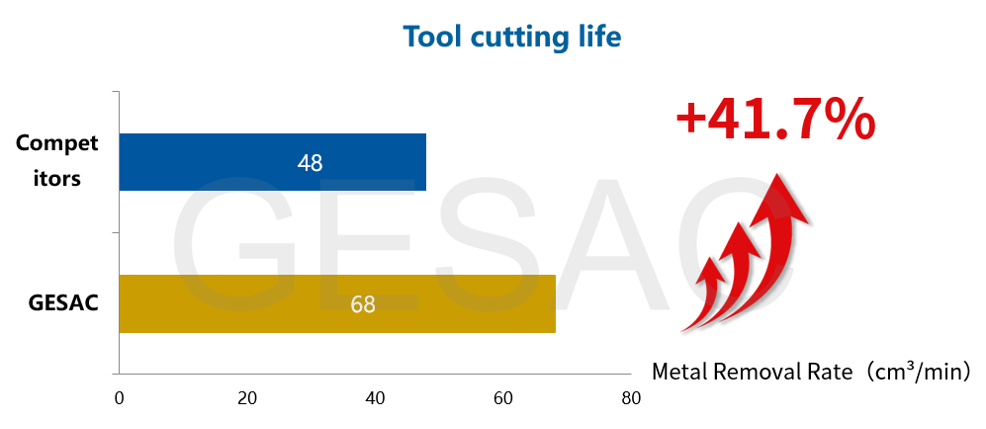

| Cutting Effect | Our Tooling Achieves 41.7% Higher Efficiency,Reduces Cycle Time by 4min/Part, Increasing Customer's Daily Output by ~500 Units |

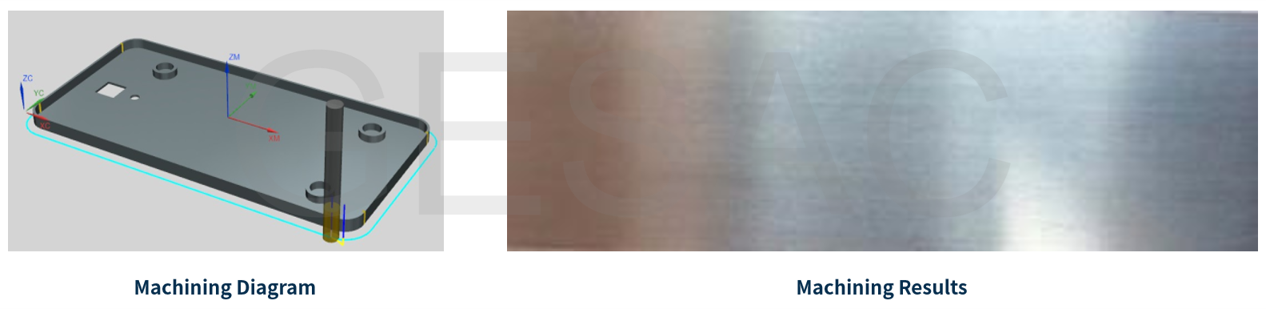

Case2:Smartphone Aluminum Frame Contour Machining
| Tool Name | Aesthetic-Finish End Mill for Aluminum Alloys |
| Tool Specification | D6*12*50*d6*3E |
| Processing Materials |
AI6063(HV80) |
| Cutting speed | 12000rpm (226.08m/min) |
| Feed Speed | 840mm/min (0.07mm/z) |
| Cutting Mode | Side milling |
| Cutting Depth | ap=7.2mm，ae=0.05mm |
| Cooling Mode | Water-based emulsion |

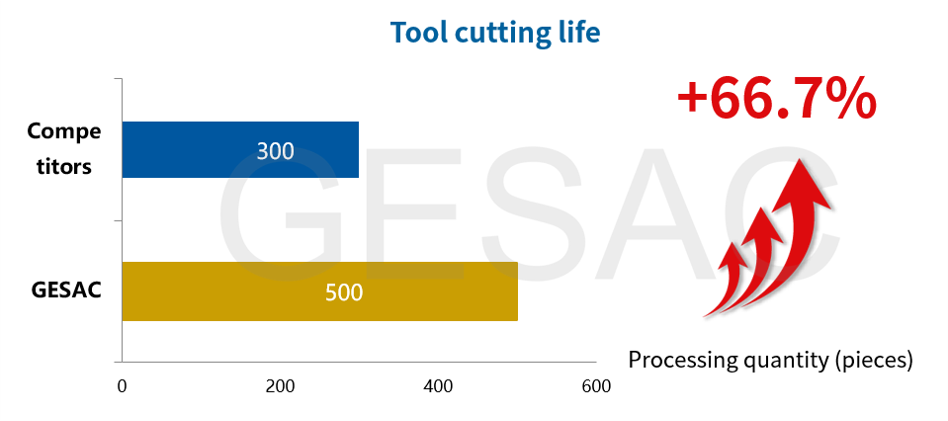

| Cutting Effect | Specially designed for smartphone aluminum frame contour machining, our cutting tools deliver exceptionally glossy surfaces ,free of feed marks or dimensional inconsistency while outperforming competitors in tool longevity. |
