High-Efficiency Steam Turbine Blade Machining Solutions

Introduction to Steam Turbines and Blade Machining

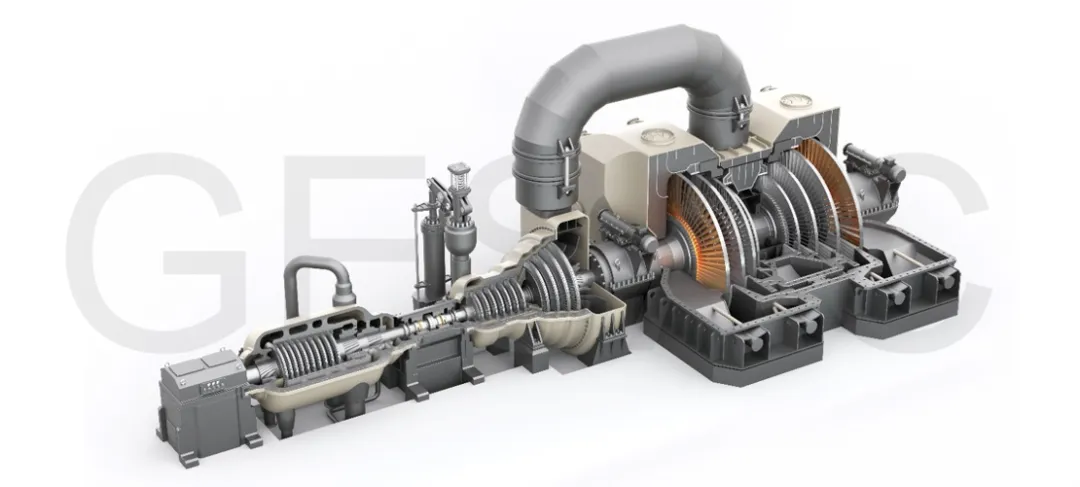

Steam turbines, also known as steam turbine engines, are hailed as the heart of power plants. Their main components can be categorized into blades, rotor shafts, cylinders, partition plates, steam seals, etc. Blades are the critical components of steam turbines—among the most intricate and vital parts, and also the most numerous type of component within the turbine.

Steam turbine blades operate under extreme conditions—enduring combined effects of high temperature, high pressure, centrifugal forces, corrosion, and vibration. This necessitates exceptional strength, superior high-temperature mechanical properties, and corrosion resistance. Blade materials typically include difficult-to-machine alloys such as high-strength stainless steels, superalloys, and titanium alloys. With the turbine industry currently at peak production capacity, Industrial chains are prioritizing efficiency gains, demanding cutting tools with high machining efficiency, extended longevity, and multi-material versatility—imposing increasingly stringent requirements on tooling performance.

⸻

Challenges in Steam Turbine Blade Machining

Turbine blades are typically made from difficult-to-machine materials such as:
• High-strength stainless steels
• Nickel-based superalloys
• Titanium alloys

These materials demand cutting tools with:
• High machining efficiency
• Extended tool life
• Multi-material versatility
• Stable performance under vibration-prone conditions

Steam turbine blades are responsible for transforming high-pressure steam energy into rotational power, making their design, material selection, and machining accuracy essential for overall turbine performance. Due to their critical role, these blades require precise manufacturing techniques and high-performance cutting tools to ensure optimal efficiency and reliability.

GESAC’s Steam Turbine Blade Solutions

To meet these challenges, GESAC offers a comprehensive range of cutting tools engineered for superior performance in steam turbine blade manufacturing.

GESAC offers a comprehensive range of cutting tools engineered for superior performance in steam turbine blade manufacturing.

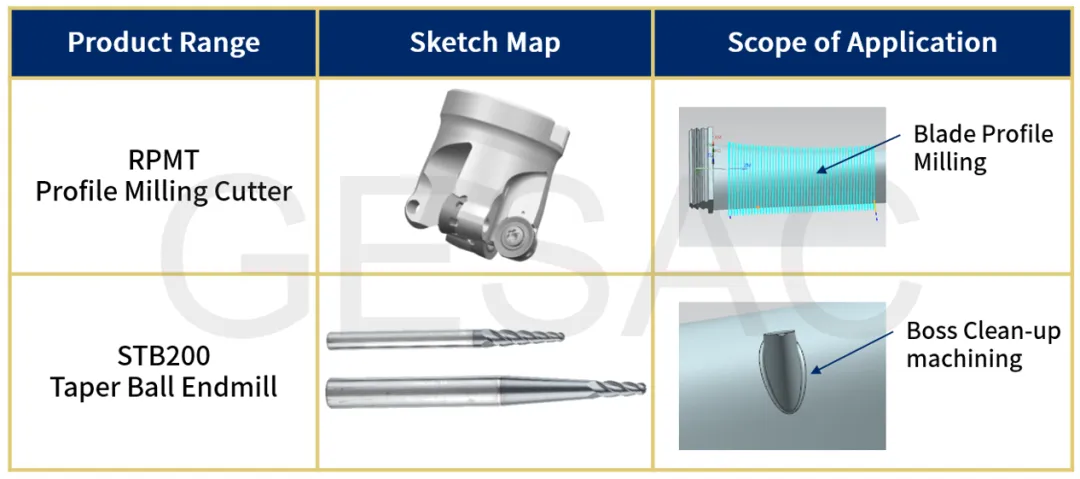

Key Products

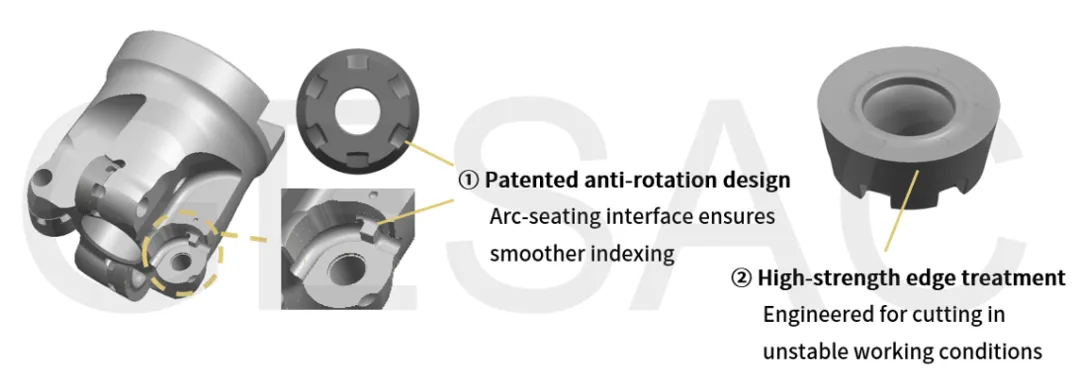

1. RPMT Profile Milling Cutter

Primarily used for semi-finishing and rough machining of stainless steel, titanium alloys, and superalloys. Typical components include: steam turbine blades, aero-engine casings, and aerospace structural components. It has the following design features:

Ideal for semi-finishing and rough machining of stainless steel, titanium alloys, and superalloys. Commonly used in turbine blades, aero-engine casings, and aerospace structural components.

Core Technical Merits

Paired with the newly developed Grade GMM7130, this single grade covers machining of superalloys, titanium alloys, and various stainless steels, delivering high versatility that reduces customers' tool change time and enhances machining efficiency.

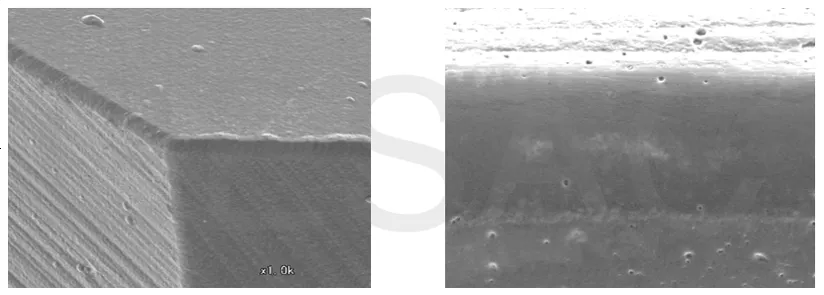

A wear-toughness balanced coating design coupled with a fracture-resistant carbide substrate ensures stable machining even in vibration-prone working conditions.

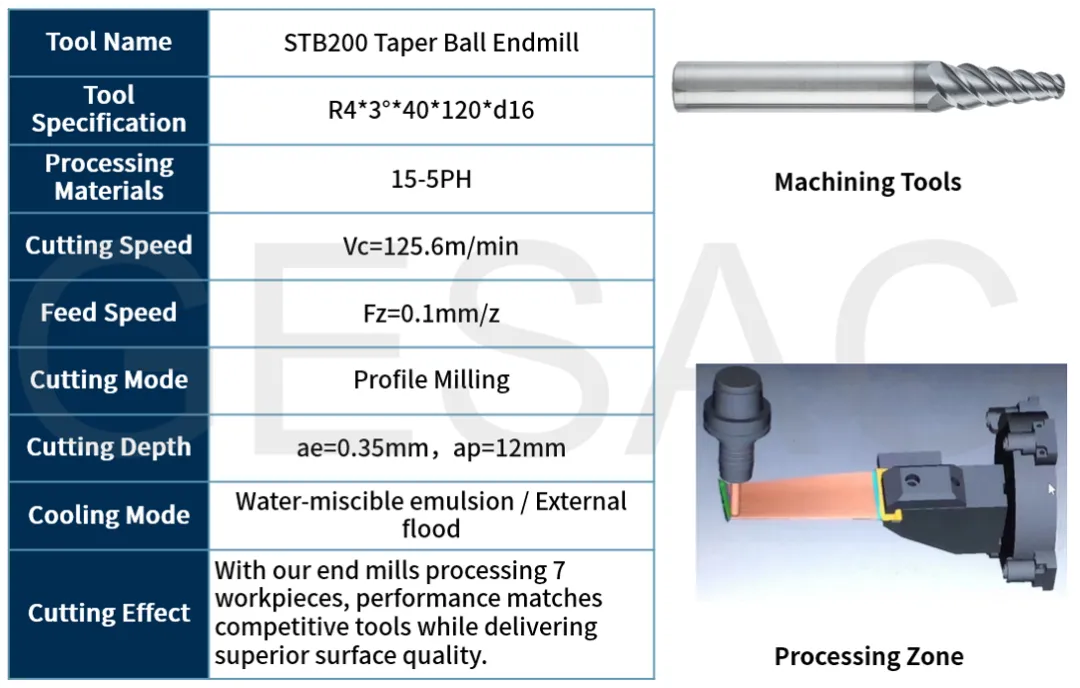

STB200 Taper Ball End Mill

Primarily used for semi-finishing and finishing of curved profiles, delivering superior surface quality while maintaining high efficiency. It has the following design features:

Applications

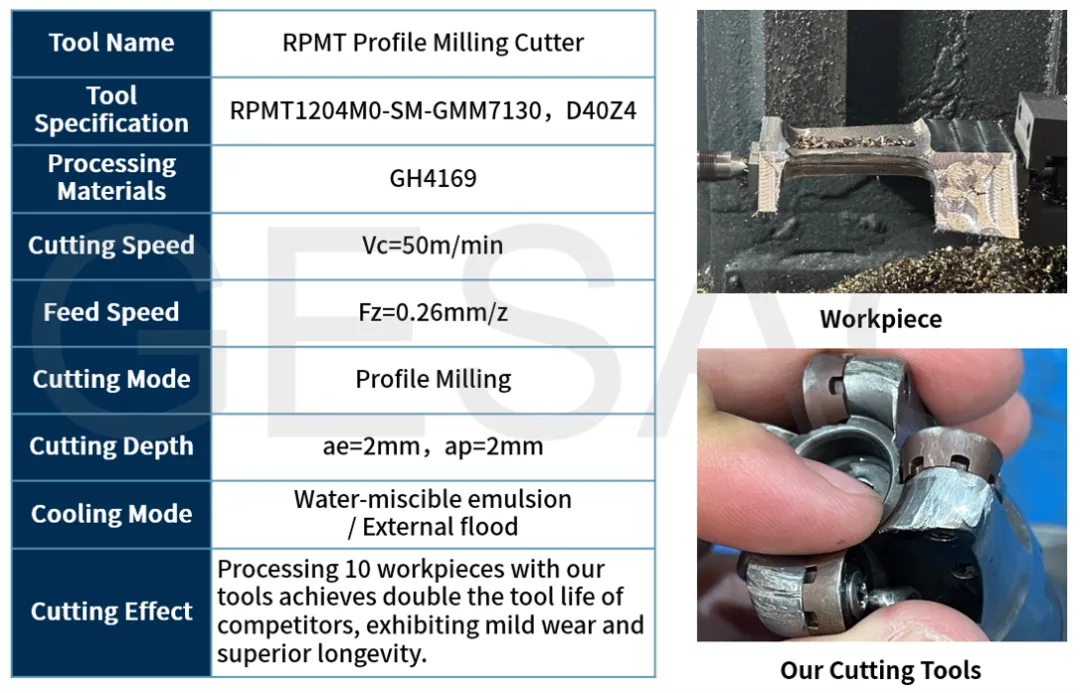

In this steam turbine blade machining application, our RPMT-SM series demonstrates exceptional tool life in superalloy processing, while the STB200 tapered ball-nose end mill delivers superior longevity and surface quality. This combination ensures machining efficiency and stability for turbine blades. This turbine blade machining solution from GESAC adds another powerful tool to the industry chain for achieving high-efficiency machining.

Why Choose GESAC for Turbine Blade Machining

By combining the RPMT-SM series and the STB200 tapered ball end mill, GESAC provides a high-efficiency turbine blade machining solution that delivers:
• Extended tool life in superalloy machining
• Improved surface finish quality
• Reduced production costs
• Enhanced process stability

Post time: Sep-08-2025
