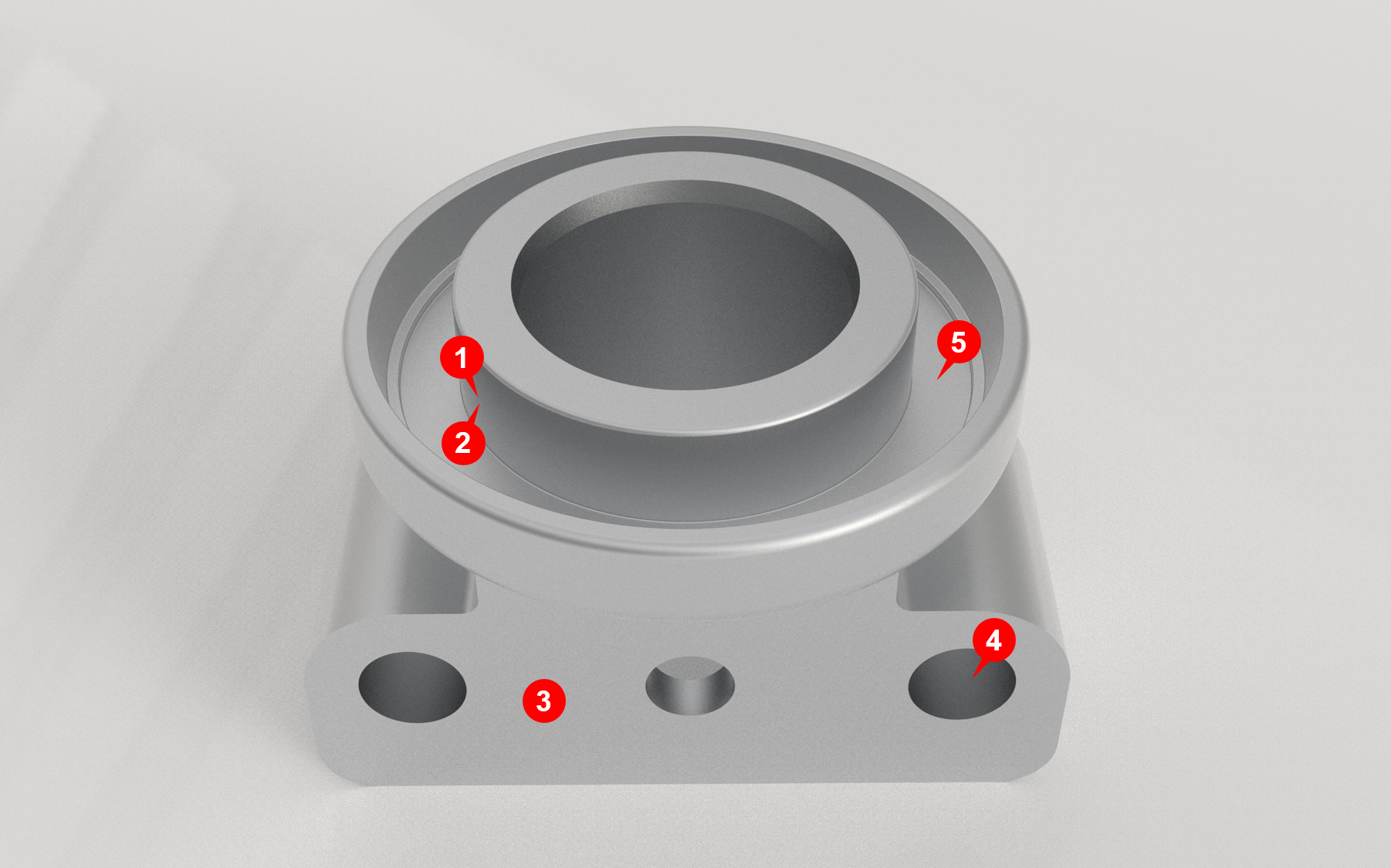

Track Roller End Cover
The supporting wheel end cover belongs to the walking device of the excavator, the material is mainly cast iron, such as QT500, and the main tools are turning inserts, indexable milling tools, drilling tools and grooving inserts;
- 1. Rough Turning
- 2. Finish Turning
- 3. Side Face Milling
- 4. Drilling
- 5. Grooving
Negative K series
K series inserts for cast iron, including UK, HK, and NMA.
 |
Negative K series
K series inserts for cast iron, including UK, HK, and NMA.
|
SNE(M)U+MFB145&245&275&288
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
 |
 |
|
 |
 |
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
|
|
|
|
GT series
GT series cover FC, MC, RC, FG, MG, FT, MT, OR and MR geometries. Equipped with complete tool holders, they can achieve parting, slotting, turning, and profile machining; and with multiple grades, they can meet the machining needs of materials such as steel, stainless steel, cast iron, and high-temperature alloy.
|
|
|
|
