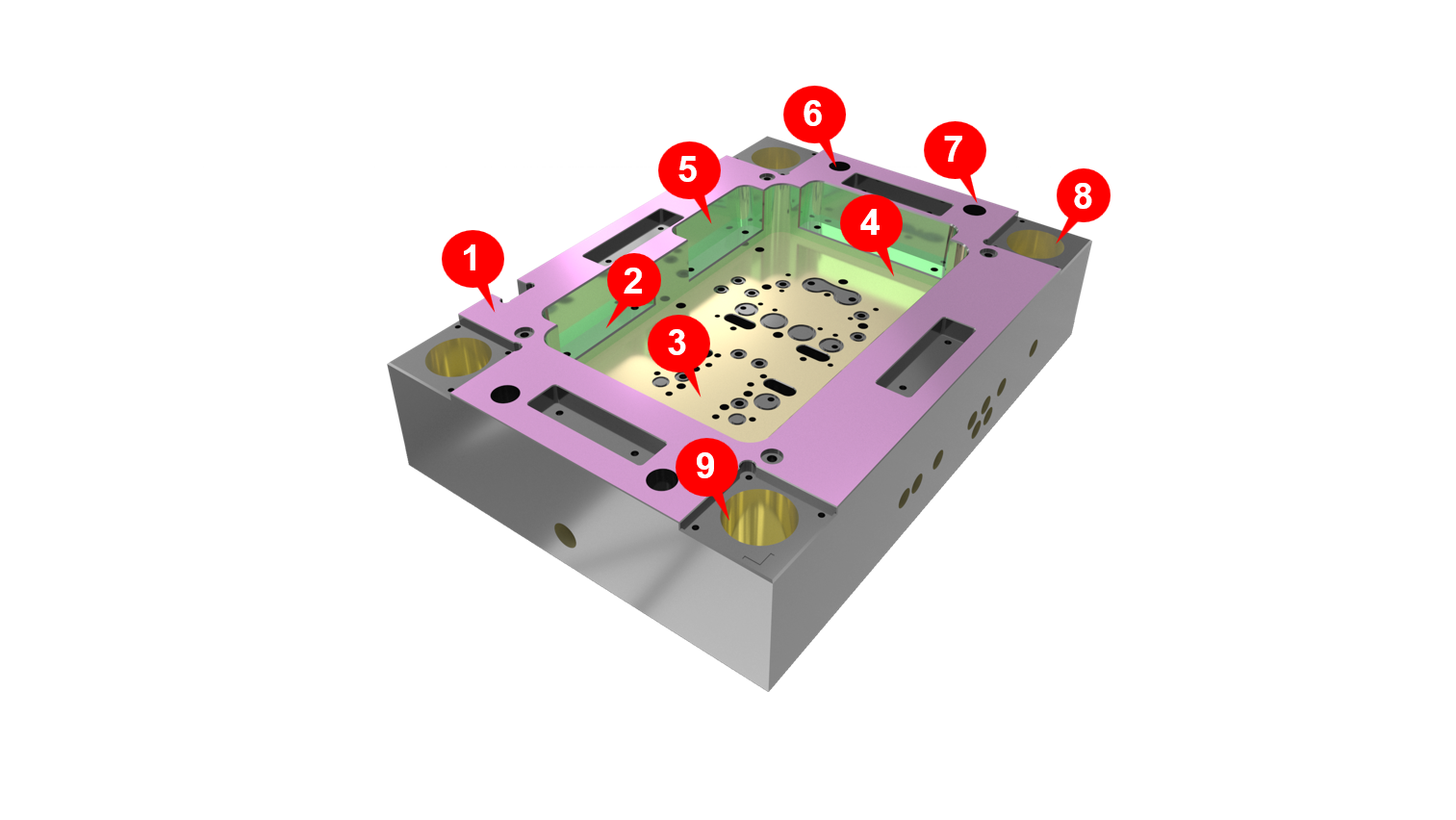

Small Electric Appliance Mold Base
A mold frame, also known as a mold body, is the framework and substrate of an injection mold. Each part of the mold is parasitic within it, and it is also a combination of unprocessed cavities. Except for the concave mold and core depending on the plastic part, the rest of the mold base is extremely similar, making standardization of the mold base possible. GESAC has a comprehensive processing solution for mold frames.
- 1. Cost-effective Face Milling
- 2. Rough Finishing Pocket Milling
- 3. High-feed Rough Milling
- 4. Semi-finishing Shoulder Milling
- 5. Finishing of Boring Milling
- 6. Machining
- 7. Boring Process
SNE(M)U+MFB145&245&275&288
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
 |
 |
 |
 |
 |
RD+MPA100
1.With economical and high effciency,suitable for the profile milling of mould industry
2.With a full range of geometry,available from light cutting to heavy cutting
3.Suitable for semi-finish and roughing machining of steel
|
|
|
|
RP+MPB100
1.With economical and high effciency,suitable for the profile milling of mould industry
2.With a full range of geometry,available from light cutting to heavy cutting
3.Suitable for semi-finish and roughing machining of steel
|
|
|
|
SDMT+MKB113
1.With A big arc curve edge design,improve the strength of The R angle
2.Suitable for roughing machining of steel, cast iron, stainless steel and difficult-to-cut material
|
|
|
|

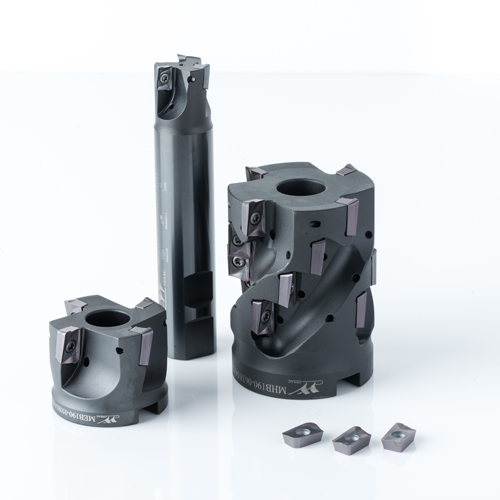

APK(E)T+MEB190
1.The edge is with curve type design to decrease the cutting resistance.
2.Match with corn milling cutter holder, with high milling efficiency.
3.Suitable for semi-finishing and roughing machining of steel, stainless steel, cast iron and aluminum alloy.
|
|
|
|
|
UP210
Suitable for steels﹠cast iron(≤48HRC)
High performance AlCr series coating, high temperature resistance and high wear resistance.
Adapt to several kinds of cooling conditions, for example oil mist, water, oil, air cooling.
|
|
|
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
|
|
|
|
D938
Suitable for efficient Drilling of Steel, Cast Iron and Stainless steel
|
|
|
