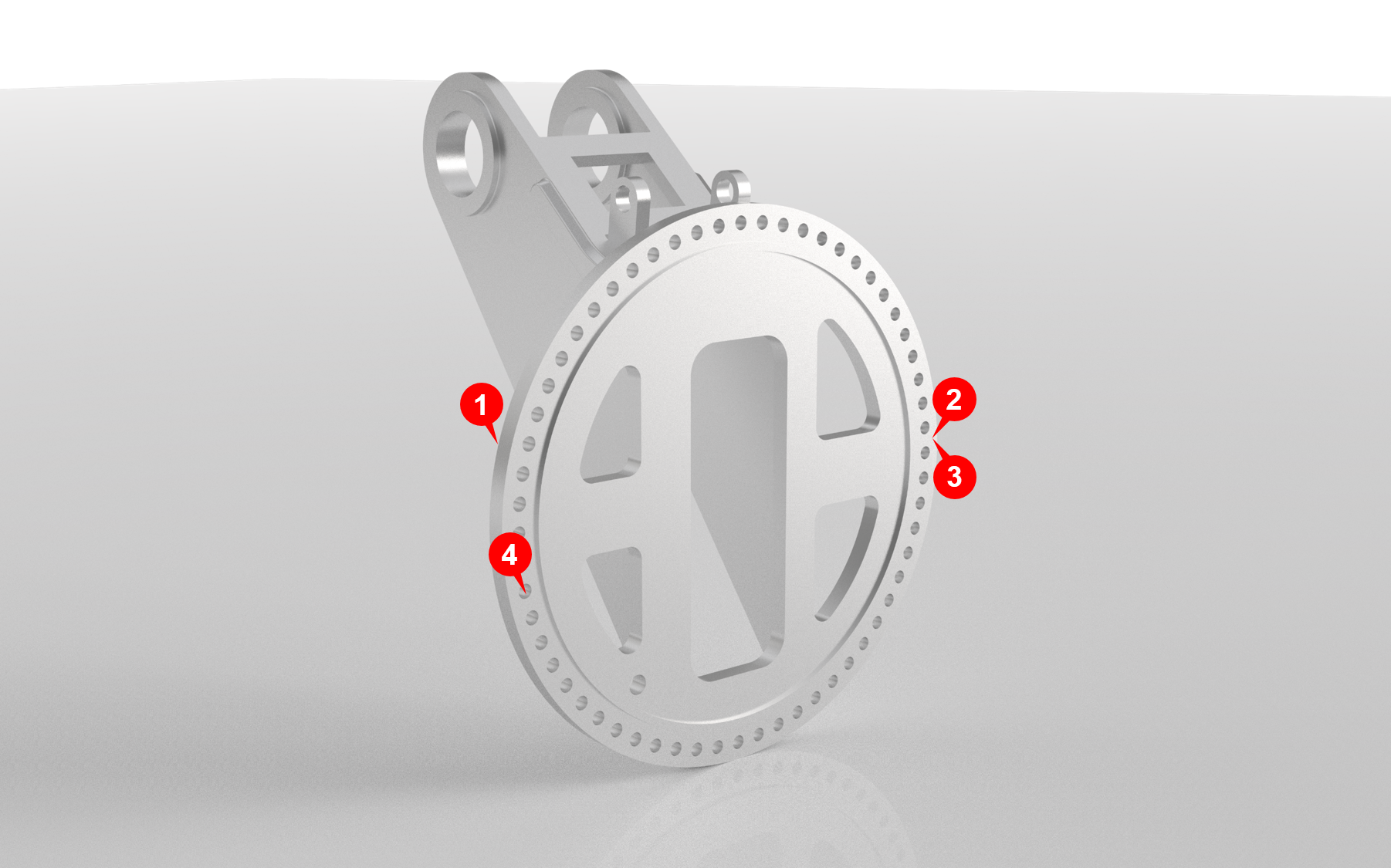

Rotary Table
The rotary table belongs to the rotary mechanism of construction machinery, the main material is high-strength steel, such as SG1000, HG785, etc., the main demand for indexable milling tools, drilling tools and so on;
- 1. Back Milling of Inner Face
- 2. Rough Face Milling
- 3. Finish Face Milling
- 4. Drilling of End Face Hole

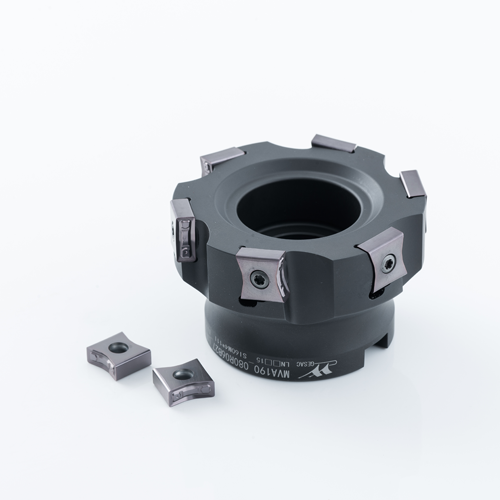

LNE(M)T+MVA190&290
1.Unique stand-mounted structure design,high strength, suitable for heavy-duty milling and high machining efficiency
2.Negative 8-edged design for left and right handed tool bodies
3.Mainly used for rough machining of steel and cast iron materials
 |
 |
 |
HNG(K)U+MFC115&145&160
1.Double-side with 12 cutting edges achieving cost effective
2.The sectional cutting edge design for the inserts which make the insert is matched with 3 different entering angle holders
3.Suitable for roughing and semi-finishing of steel, stainless steel and cast iron
|
|
|
 |
SNE(M)U+MFB145&245&275&288
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
|
|
|
 |
|
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
|
|
|
|
