Q series inserts for steel cutting, include QF, QM, QR and QH.

1.Double-side with 12 cutting edges achieving cost effective
2.The sectional cutting edge design for the inserts which make the insert is matched with 3 different entering angle holders
3.Suitable for roughing and semi-finishing of steel, stainless steel and cast iron

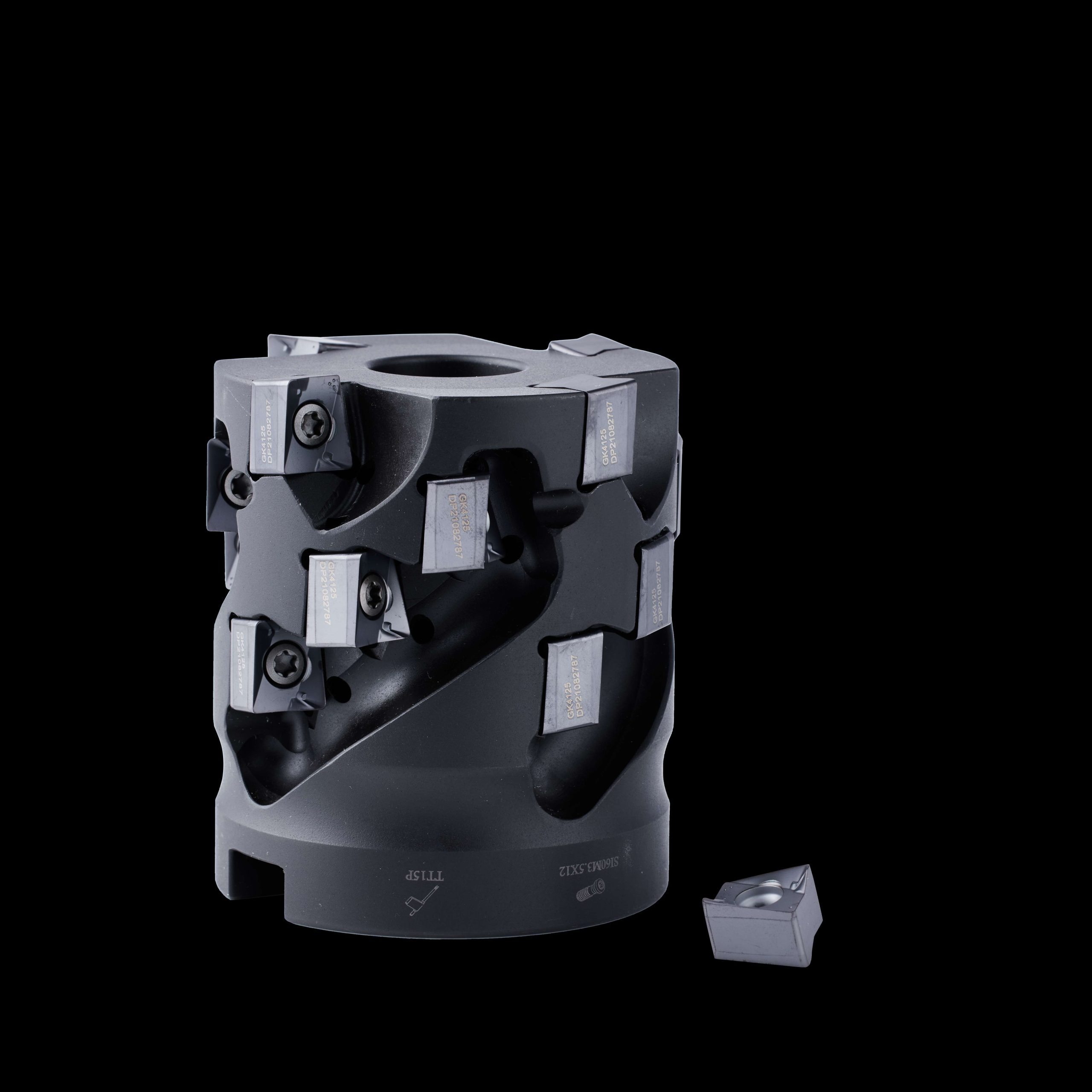

High Strength Corn Milling

Suitable for side milling, slot milling, helical interpolation milling, and cycloidal milling of steel and cast iron (≤48HRC), with a high rate of metal removal
Unequal tooth pitch and spiral design, effectively suppress high frequency vibrations and provide superior anti-vibration capability, allowing efficient and stable machining of large depths and widths.
Variable gash depth design makes sure the tool has more than enough rigidity and chip evacuation space.

Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D

Suitable for drilling of steel, cast iron, and stainless steel with a hole depth of φ10.0mm-φ21.9mm and a hole depth within 5D

Suitable for Drilling mild Steel, Interrupted cutting, defective Coolant condition and other severe working conditions

Suitable for machining low carbon steels, medium carbon steels, high carbon steels, and alloy steels with hardness below 30HRC

1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron

Suitable for rough boring and fine boring of φ2.0mm-φ3300.0mm steel, cast iron and stainless steel
