Pump – Housing
The pump casing is the main pressure-containing component, typically made of cast iron, cast steel, or engineering plastic. It forms the fluid passage with impeller chamber and inlet/outlet ports, guiding flow and withstanding pressure. Precision machining ensures accurate fit with impeller and cover. Its hydraulic design and manufacturing quality directly affect pump efficiency, reliability, and service life, making it a critical element for stable fluid transfer.

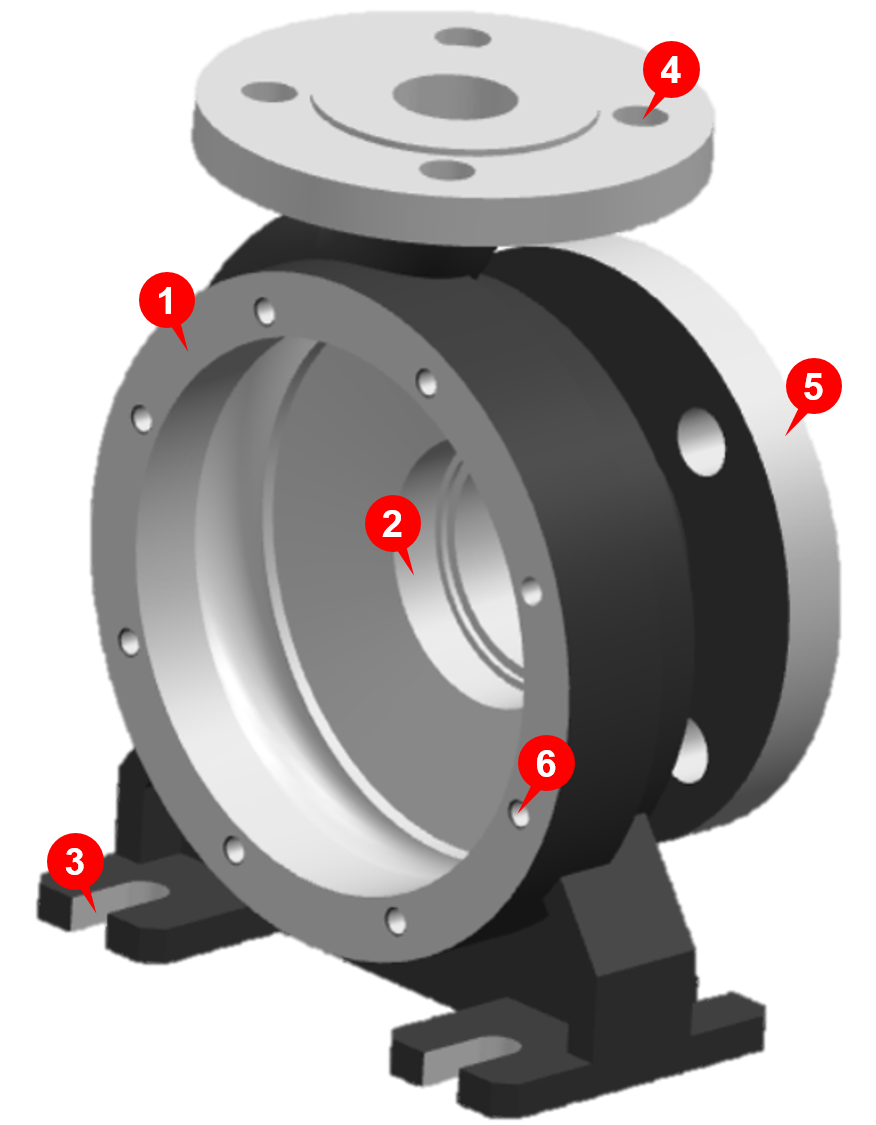

- 1. Face Milling
- 2. Boring
- 3. U-groove machining
- 4. Bolt hole machining
- 5. External,Face and Internal Turning
- 6. Thread Hole Machining
HNG(K)U+MFC115&145&160
1.Double-side with 12 cutting edges achieving cost effective
2.The sectional cutting edge design for the inserts which make the insert is matched with 3 different entering angle holders
3.Suitable for roughing and semi-finishing of steel, stainless steel and cast iron
 |
 |
 |
 |
GBR series
Suitable for rough boring and fine boring of φ2.0mm-φ3300.0mm steel, cast iron and stainless steel
|
|
|
 |
UP300
The UP300 series features a nano-composite PVD coating with high hardness and oxidation resistance, ensuring superior wear and heat resistance. Suitable for steel, stainless steel, cast iron, and pre-hardened steel (≤52 HRC)；
Introduces high-precision and long-neck models to meet the demands of high-speed, high-precision machining in mold applications；
Enables efficient machining, accommodating high-efficiency machining methods such as ramp milling and keyway milling.
|
|
|
 |
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
Negative K series
K series inserts for cast iron, including UK, HK, and NMA.
|
