Machine Tool – Spindle

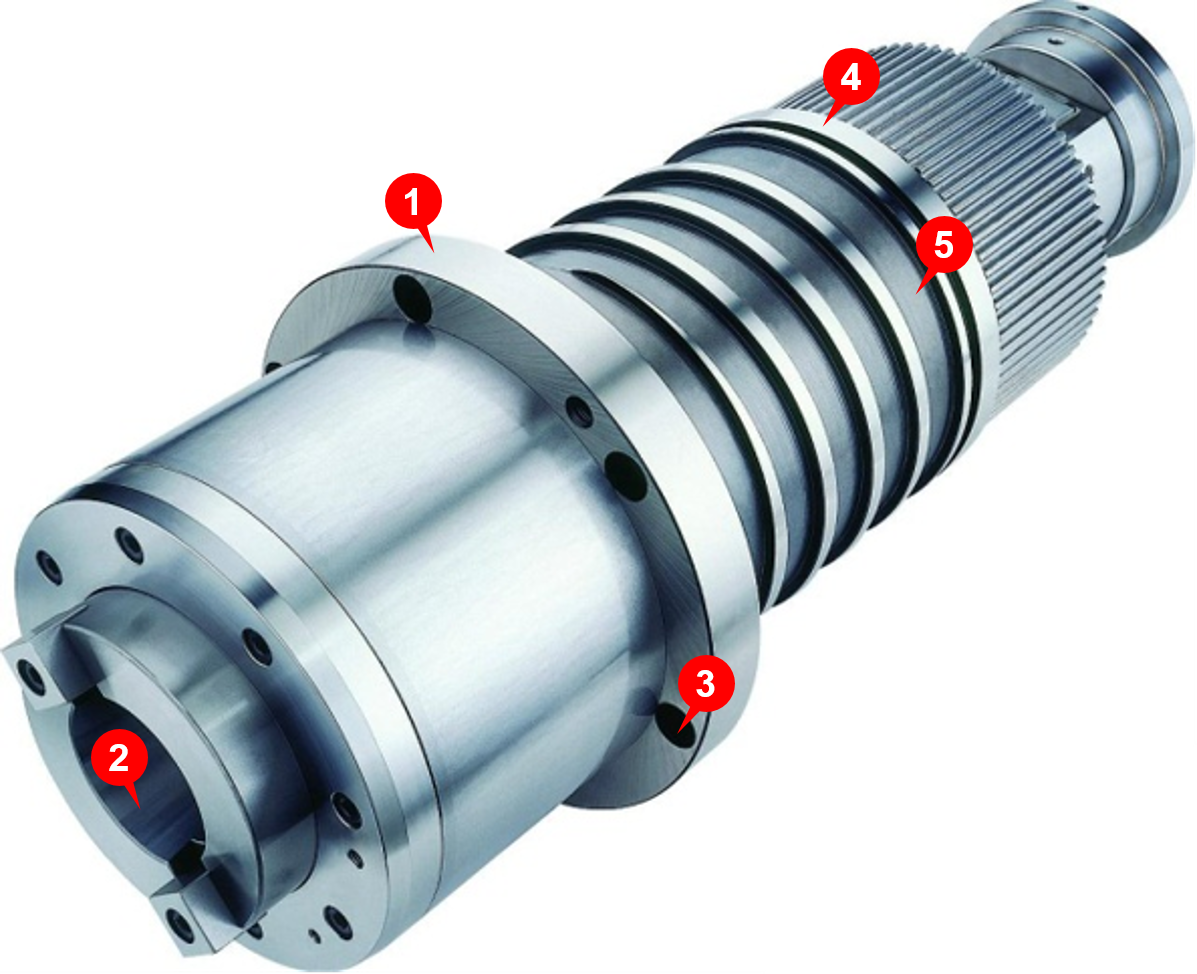

The spindle is the core functional component that directly drives the cutting tool rotation. Comprising a spindle shaft, precision bearings, drive unit, and cooling-lubrication system, it must deliver high speed, high rigidity, low vibration, and excellent thermal stability. Its rotational accuracy critically affects surface finish and dimensional precision of the workpiece. Typically made from high-quality alloy steel, the spindle undergoes heat treatment and precision grinding to ensure sup...
- 1. External Surface Turning
- 2. Internal Turning
- 3. Hole Making
- 4. Turning (After Annealing)
- 5. Groove Machining
Negative Q series
Q series inserts for steel cutting, include QF, QM, QR and QH.
 |
Positive general purpose series
PKM for cutting of general steel, alloy steel, stainless steel and cast iron, including MM series, GP series, KM series
|
 |
 |
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
D918S
Suitable for Drilling mild Steel, Interrupted cutting, defective Coolant condition and other severe working conditions
|
|
|
Welded type YP-geometry
With BHF and BHM special geometries, stable chip breaking can still be achieved with different cutting depths.
 |
GT series
GT series cover FC, MC, RC, FG, MG, FT, MT, OR and MR geometries. Equipped with complete tool holders, they can achieve parting, slotting, turning, and profile machining; and with multiple grades, they can meet the machining needs of materials such as steel, stainless steel, cast iron, and high-temperature alloy.
|
|
|
|
