Machine Tool – Column

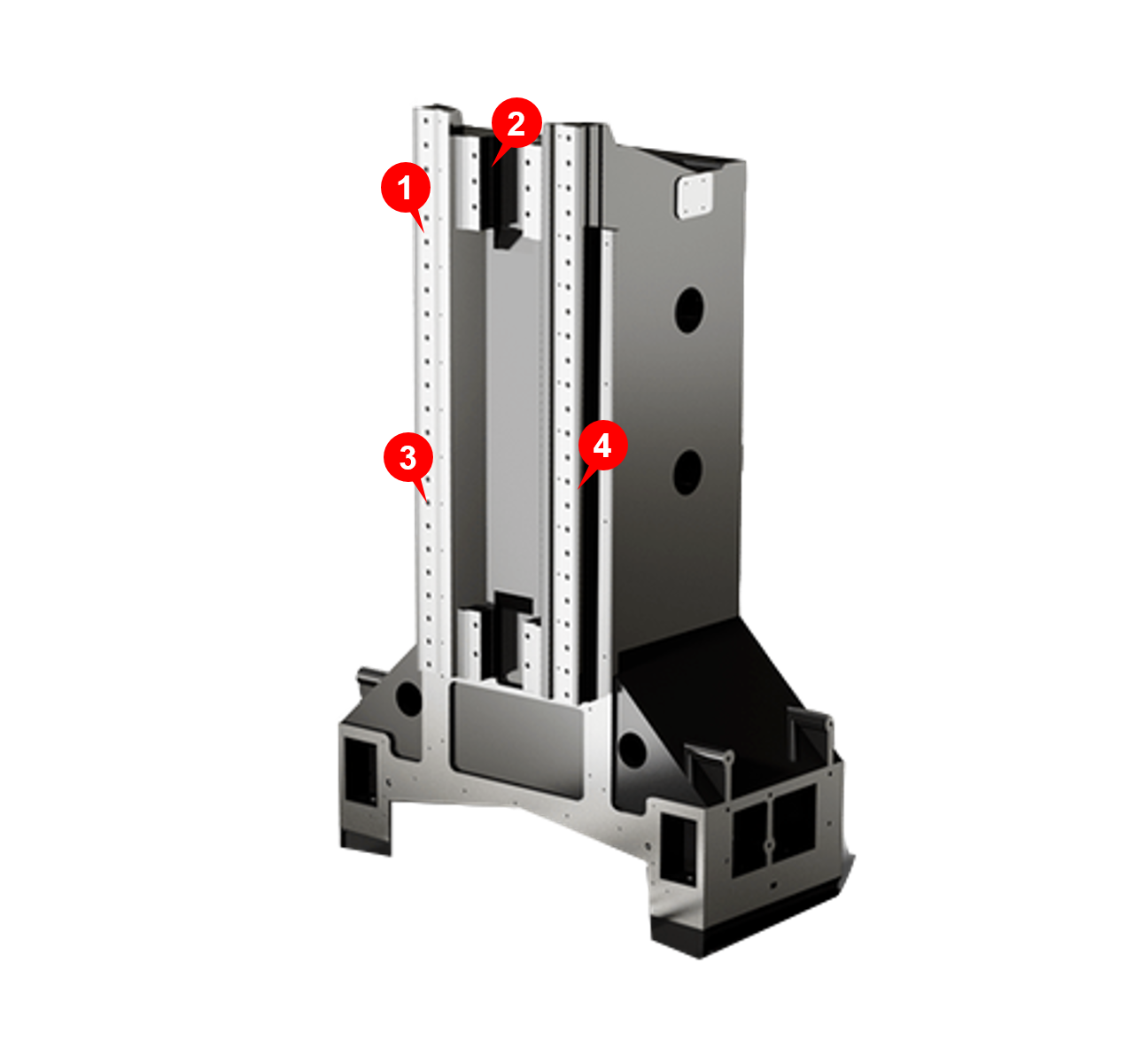

The column is the vertical structural member that connects the bed to the spindle head, serving as a primary support for the weight of the spindle assembly and withstanding dynamic cutting loads during machining operations. It must exhibit sufficient rigidity and vertical alignment accuracy. Typically made of high-grade cast iron, the column is precision-machined to ensure precise geometric relationship with the bed and worktable, and is designed to resist both radial and axial forces generat...
- 1. Mounting Surface Milling
- 2. Screw-mounted Vertical Surface Milling
- 3. Mounting Hole Machining
- 4. Step Surface Finishing Milling
SNE(M)U+MFB145&245&275&288
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
 |
 |
 |
 |
 |
APK(E)T+MEB190
1.The edge is with curve type design to decrease the cutting resistance.
2.Match with corn milling cutter holder, with high milling efficiency.
3.Suitable for semi-finishing and roughing machining of steel, stainless steel, cast iron and aluminum alloy.
|
|
|
|
|
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
D918S
Suitable for Drilling mild Steel, Interrupted cutting, defective Coolant condition and other severe working conditions
|
|
|
SP210
Suitable for high efficiency machining of steels﹠cast iron(≤48HRC)
Variable helix angle and differential flute pitch, outstanding anti-vibration ability
Applicable to high efficiency machining with large cutting depth（ap）and large cutting width（ae）
|
|
|
PP300
Suitable for side milling, slot milling, helical interpolation milling, and cycloidal milling of steel and cast iron (≤48HRC), with a high rate of metal removal
Unequal tooth pitch and spiral design, effectively suppress high frequency vibrations and provide superior anti-vibration capability, allowing efficient and stable machining of large depths and widths.
Variable gash depth design makes sure the tool has more than enough rigidity and chip evacuation space.
|
|
|
