Machine Tool – Base

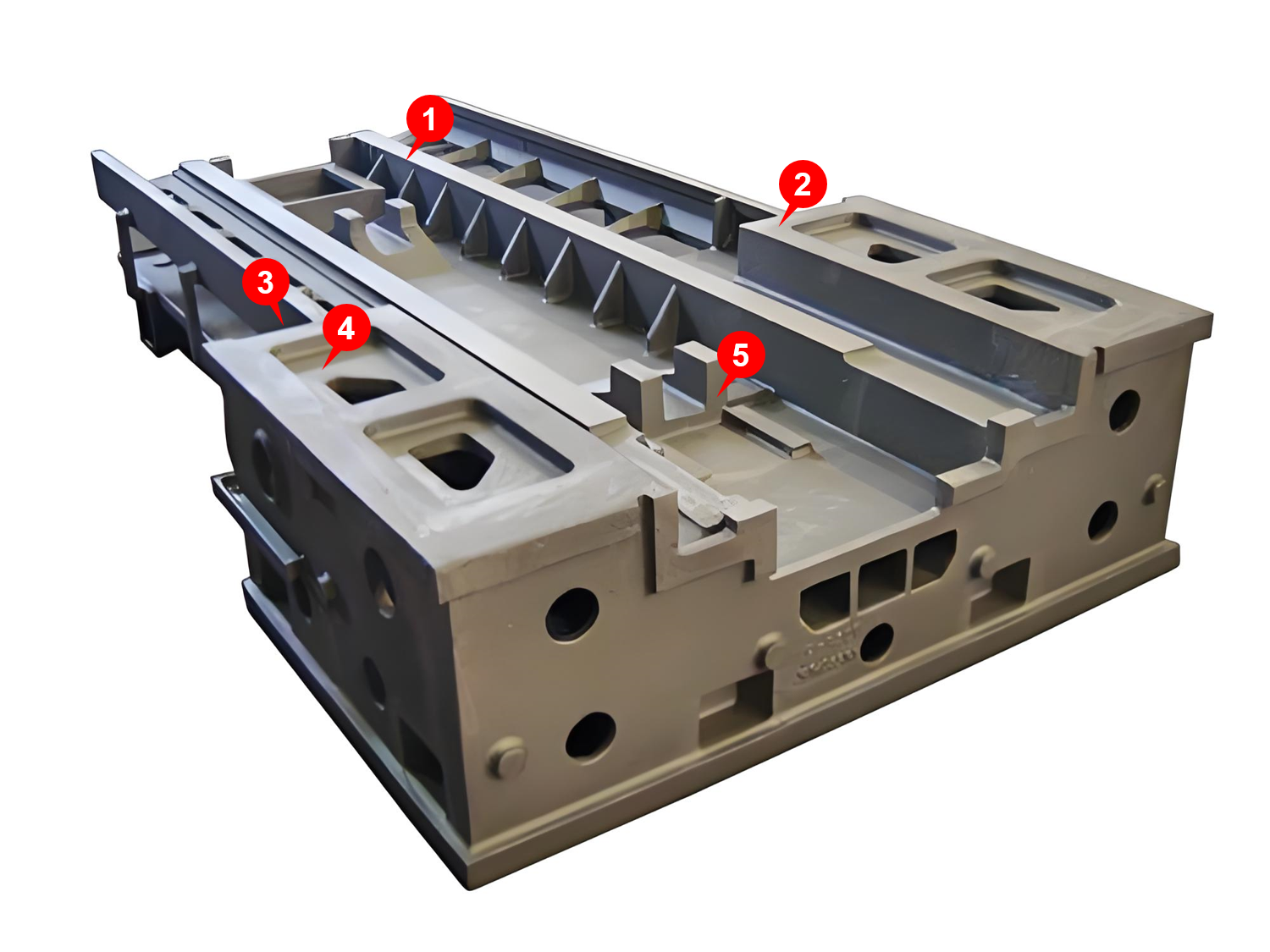

The machine tool bed is the primary structural component, providing foundational support for the entire machine and ensuring precise alignment and high rigidity among all major components. Typically made of cast iron or steel through casting and precision machining, the bed exhibits high strength, high stiffness, and excellent vibration damping characteristics. Its top surface is precision-ground to serve as a stable mounting reference for critical elements such as the worktable and column. T...
- 1. Guide Rail Mounting Surface Milling
- 2. Column Mounting Surface Milling
- 3. Mounting Hole Machining
- 4. Step Surface Finishing
- 5. Screw-mounted Vertical Surface Milling
SNE(M)U+MFB145&245&275&288
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
 |
 |
 |
 |
 |
WNG(M)U+MEE190
1.Negative six edges design, with high economical efficiency
2.Available for face milling, shoulder milling, grooving milling and so on
3.Suitable for semi-finishing and roughing machining of steel and cast iron
|
|
|
|
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
D918S
Suitable for Drilling mild Steel, Interrupted cutting, defective Coolant condition and other severe working conditions
|
|
|
SP210
Suitable for high efficiency machining of steels﹠cast iron(≤48HRC)
Variable helix angle and differential flute pitch, outstanding anti-vibration ability
Applicable to high efficiency machining with large cutting depth（ap）and large cutting width（ae）
|
|
|
PP300
Suitable for side milling, slot milling, helical interpolation milling, and cycloidal milling of steel and cast iron (≤48HRC), with a high rate of metal removal
Unequal tooth pitch and spiral design, effectively suppress high frequency vibrations and provide superior anti-vibration capability, allowing efficient and stable machining of large depths and widths.
Variable gash depth design makes sure the tool has more than enough rigidity and chip evacuation space.
|
|
|
APK(E)T+MEB190
1.The edge is with curve type design to decrease the cutting resistance.
2.Match with corn milling cutter holder, with high milling efficiency.
3.Suitable for semi-finishing and roughing machining of steel, stainless steel, cast iron and aluminum alloy.
|
|
|
|
|
