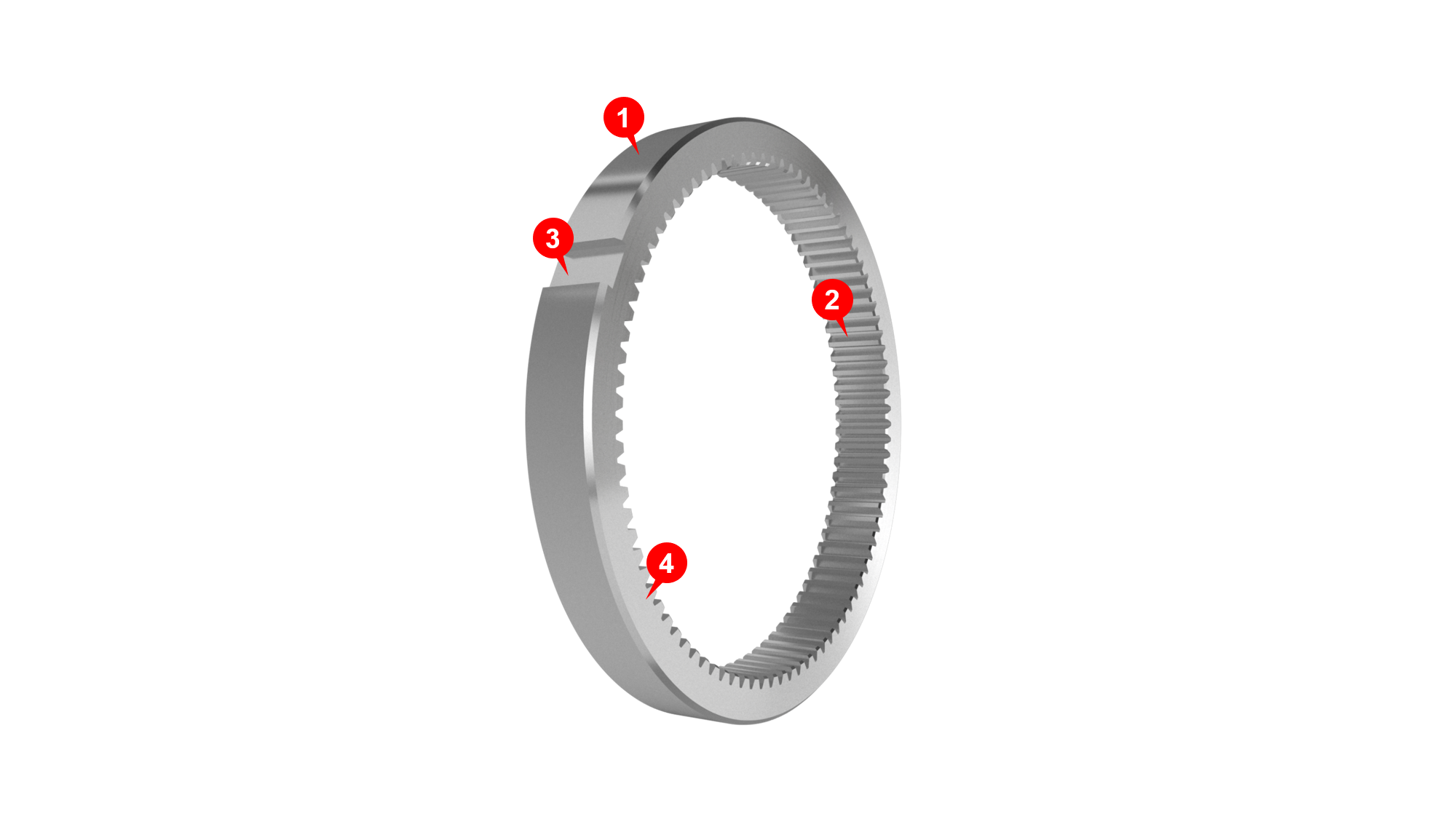

Conventional -Internal Gear
The inner gear ring of the planetary reducer is located between the sun wheel and the planet wheel, and maintains the same axis with the planetary frame. The main function of the inner gear ring is to act as the internal fixed gear of the planetary gear train and engage with the planetary wheel to achieve power transmission and torque conversion.
- 1. External Surface Turning
- 2. Inner Holel Turning
- 3. Keyway Milling
- 4. External Surface Turning (After Annealing)
Negative Q series+GPT6100 Grades
Newly Developed GE.FORCE High Efficiency Turning Tools for Steel.
Recommended speed: >300m/min.
Negative Q series
Q series inserts for steel cutting, include QF, QM, QR and QH.
 |

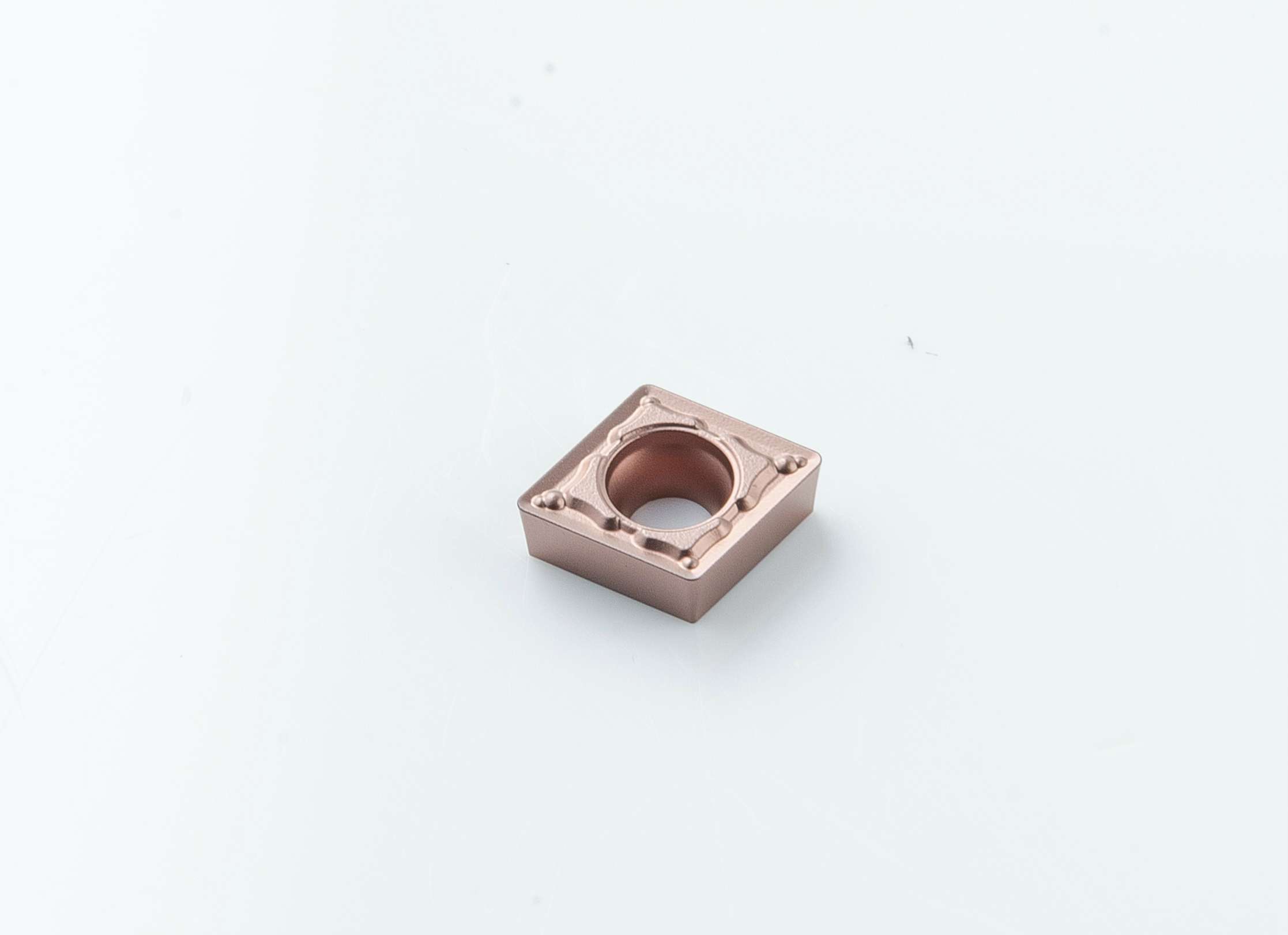

Positive MM +GPT6100 grades
Newly Developed GE.FORCE High Efficiency Turning Tools for Steel.
PP300
Suitable for side milling, slot milling, helical interpolation milling, and cycloidal milling of steel and cast iron (≤48HRC), with a high rate of metal removal
Unequal tooth pitch and spiral design, effectively suppress high frequency vibrations and provide superior anti-vibration capability, allowing efficient and stable machining of large depths and widths.
Variable gash depth design makes sure the tool has more than enough rigidity and chip evacuation space.
|
 |
 |
SP210
Suitable for high efficiency machining of steels﹠cast iron(≤48HRC)
Variable helix angle and differential flute pitch, outstanding anti-vibration ability
Applicable to high efficiency machining with large cutting depth（ap）and large cutting width（ae）
|
|
|
PCBN-Welded type YP-flat
Hardened Turning Tools
