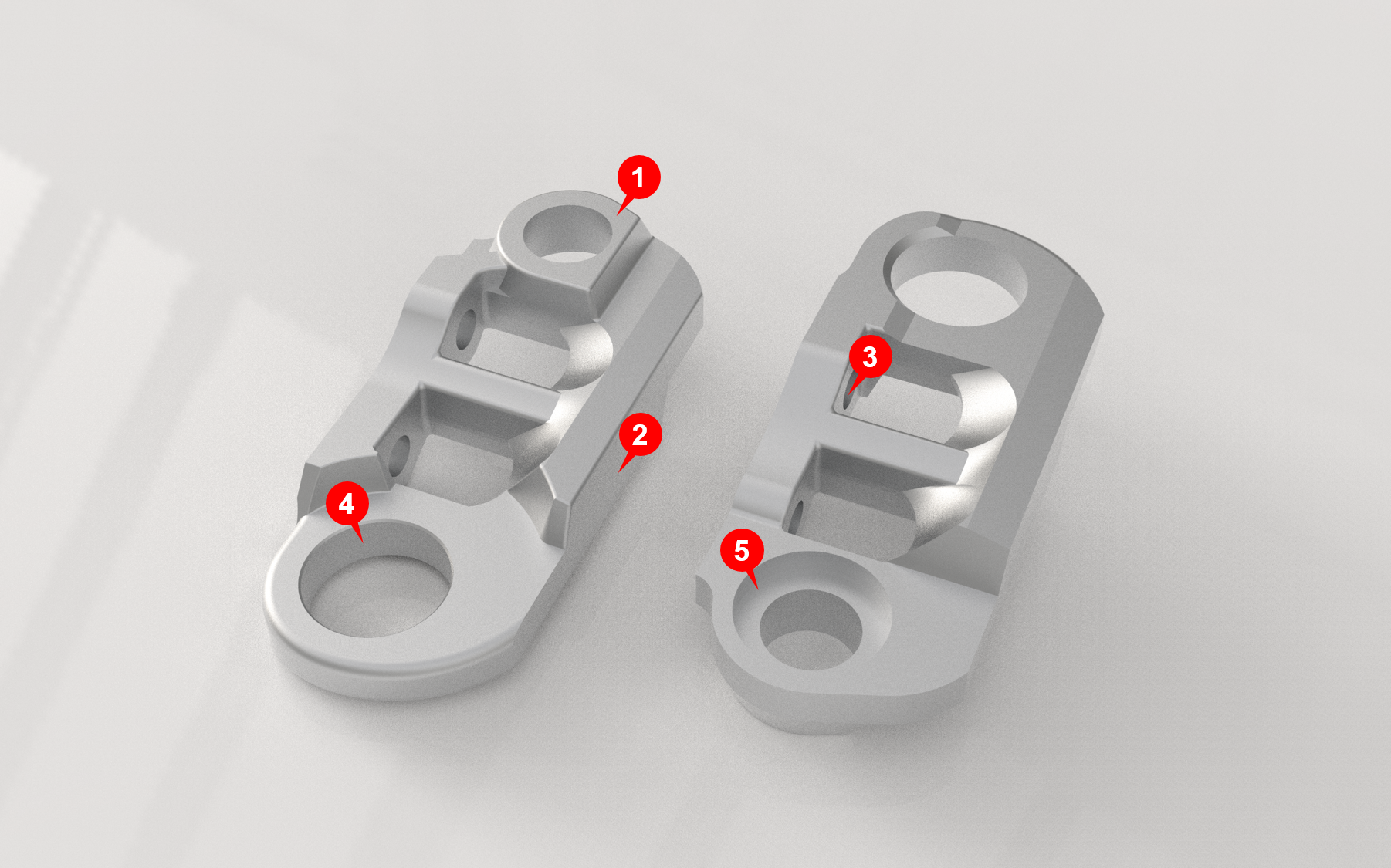

Chain Rail Joint
Chain track knuckle belongs to excavator traveling device, the material is alloy steel, such as 35Mn, 50Mn, the main demand for indexable face milling, drilling tools, boring tools;
- 1. Face Milling
- 2. Side Face Milling
- 3. Drilling of Side Face Hole
- 4. Boring of Internal Hole
- 5. Spot Facing on Step Surface

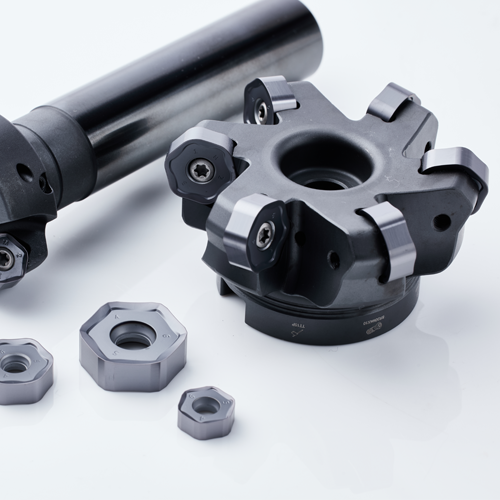

HNG(K)U+MFC115&145&160
1.Double-side with 12 cutting edges achieving cost effective
2.The sectional cutting edge design for the inserts which make the insert is matched with 3 different entering angle holders
3.Suitable for roughing and semi-finishing of steel, stainless steel and cast iron
 |
 |
 |
 |
SNE(M)U+MFB145&245&275&288
1.The insert is with thickening double face negative eight edges design, good strength, stable processing
2.There are different cutting edge angles of 45°/75°/88°/ R radius
3.Suitable for the semi-finishing and roughing face milling of steel and cast iron
|
|
|
 |
|
GHDS series
Suitable for drilling of steel, cast iron and stainless steel with a hole depth of φ14.0mm-φ51.0mm and within 5D
|
|
|
|

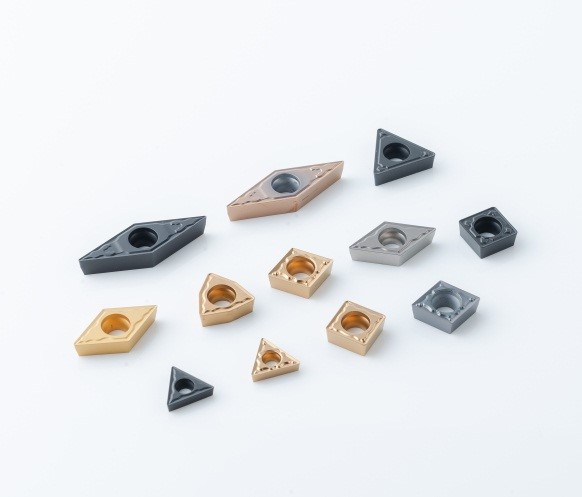

Positive general purpose series
PKM for cutting of general steel, alloy steel, stainless steel and cast iron, including MM series, GP series, KM series
|
|
|
Positive general purpose series
PKM for cutting of general steel, alloy steel, stainless steel and cast iron, including MM series, GP series, KM series
|
|
|
