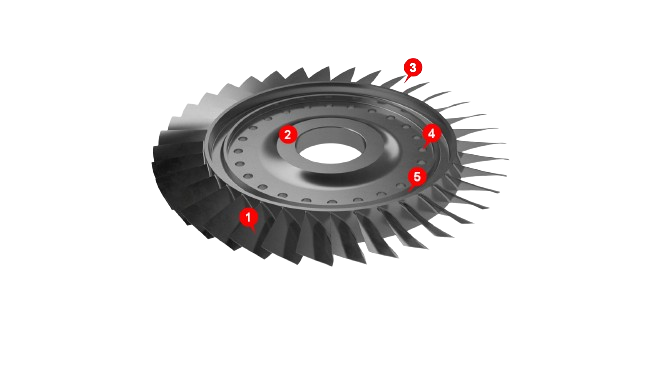

Blisk
Blades, impellers and turbine discs are the key parts of aero engines, which account for about one-third of the manufacturing volume of the whole machine, and are the largest number of parts in the engine. The impeller is a typical overall complex structural parts, the parts are large in size, thin in wall, high in dimensional accuracy and surface quality, the selection of difficult-to-machine materials, poor overall manufacturability, difficult processing, the machining process should be mat...
- 1. Rough Milling
- 2. Turning
- 3. Semi-finishing Milling
- 4. Hole Making
- 5. Grooving

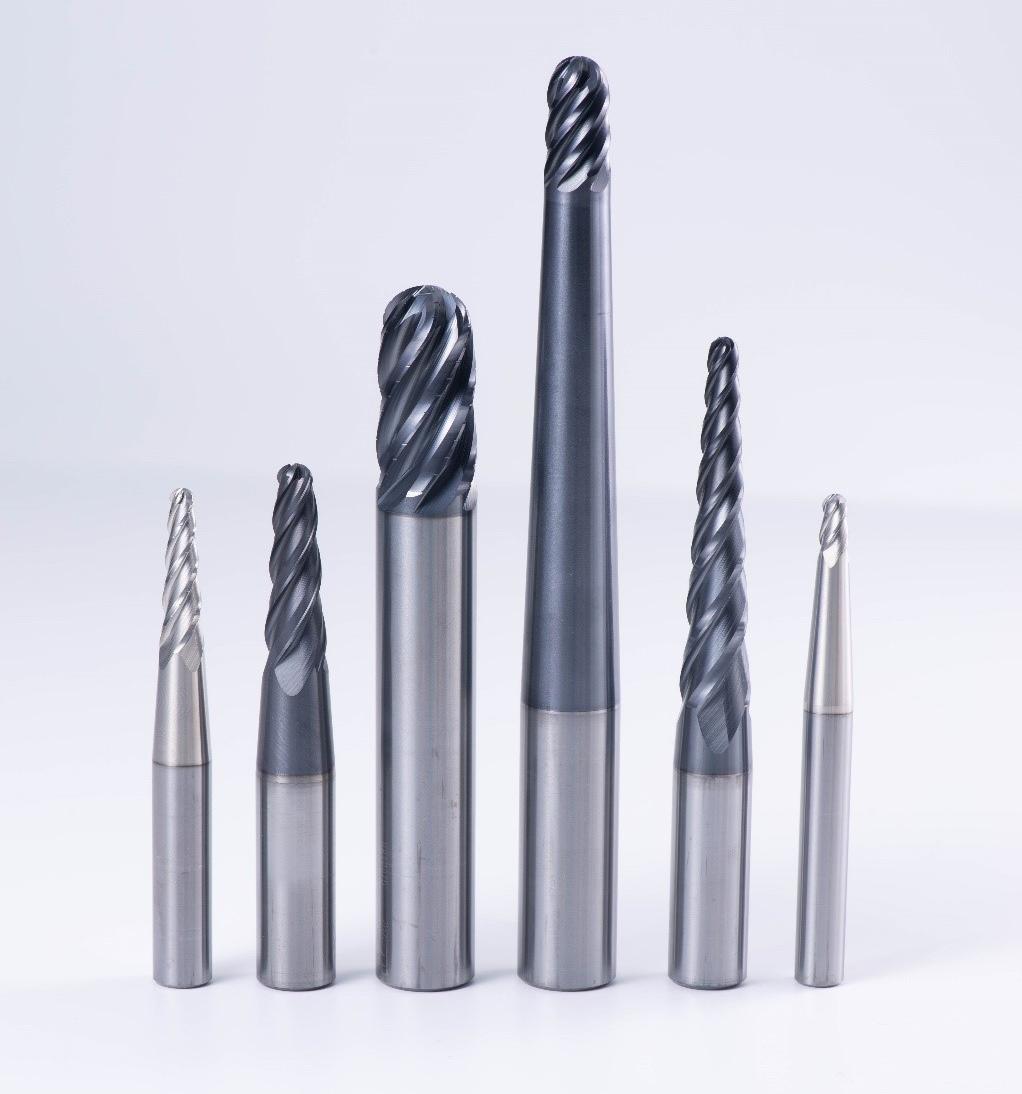

STB200
1.Suitable for semi-finish and finish of blisks
2.The taper void avoidance design and the vibration suppression design,and suitable for large suspension processing.
3.Sultra-fine cemented carbide and special coating, high wear resistance,longer tool life.
4.High precision profile, Radius tolerance士0.0lmm, Tapertolerance士3′.

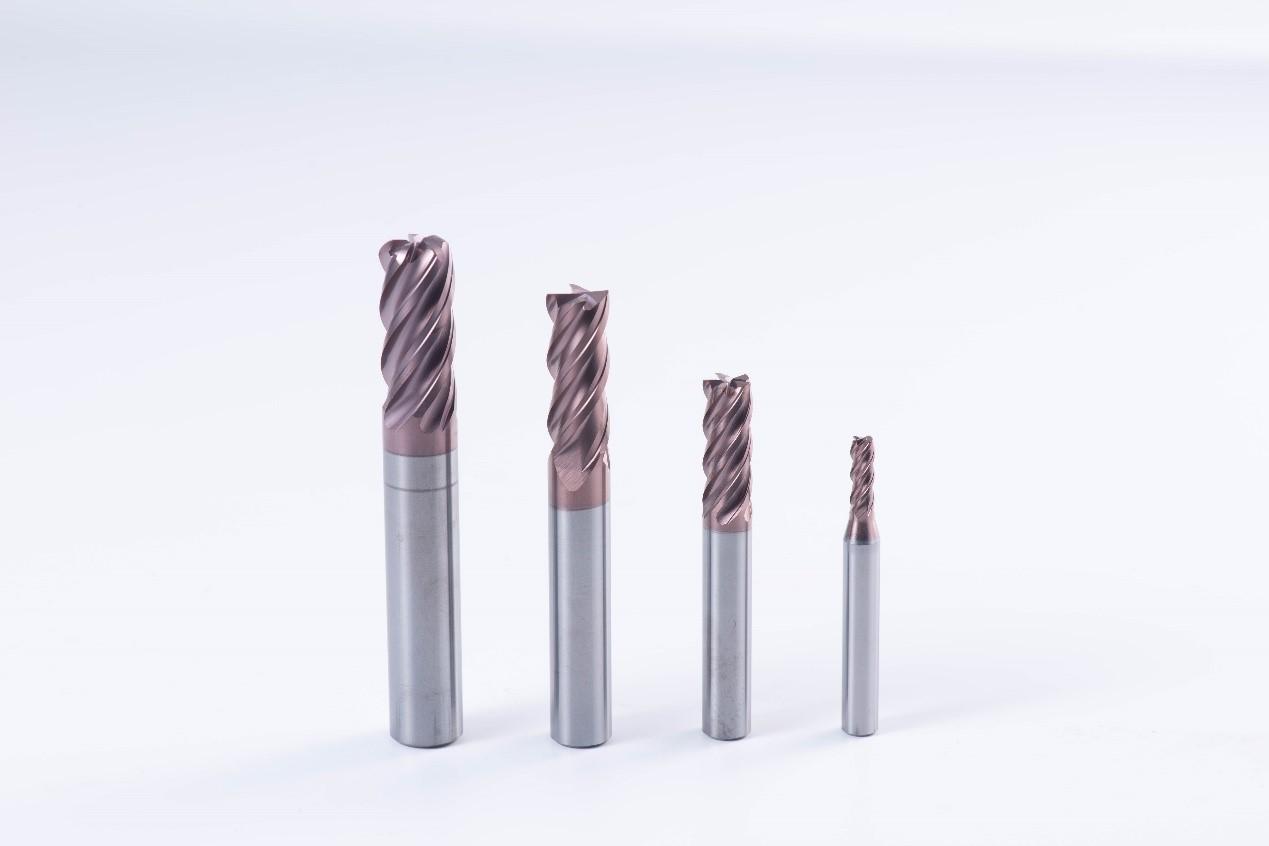

SN200
Suitable for high temperature alloys (Inconel 718, GH 4169, etc.) and stainless steel materials
Special edge design，guarantees high rigidity and excellentanti-vibration ability.
Special disposing of endmill cutting edge，improves edge strength and guarantees surface quality.
 |
 |
 |
GST7115&GST7120&GST7130
The PVD coating with excellent bonding force and high temperature stability of the cemented carbide substrate ensures its wear resistance and resistance to high temperature deformation, covering all the working conditions of high alloy turning.
STB200
1.Suitable for semi-finish and finish of blisks
2.The taper void avoidance design and the vibration suppression design,and suitable for large suspension processing.
3.Sultra-fine cemented carbide and special coating, high wear resistance,longer tool life.
4.High precision profile, Radius tolerance士0.0lmm, Tapertolerance士3′.
SN200
Suitable for high temperature alloys (Inconel 718, GH 4169, etc.) and stainless steel materials
Special edge design，guarantees high rigidity and excellentanti-vibration ability.
Special disposing of endmill cutting edge，improves edge strength and guarantees surface quality.
|
|
|
Customized Reamer
1.Aluminum alloy high-precision customized reamer.
D968S
Suitable for high efficient Drilling of stainless steel, carbon steel, alloy steel, heat-resistant alloys and titanium alloys, etc
|
|
 |
|
G-Notch
1. Flexible grooving system: the tool holder has strong versatility and can cope with various processing forms; The blade can meet all kinds of non-standard customization of customers;
2. High precision: higher installation accuracy and processing accuracy (±0.025mm) to meet the precision machining of various geometrics.
GT series
GT series cover FC, MC, RC, FG, MG, FT, MT, OR and MR geometries. Equipped with complete tool holders, they can achieve parting, slotting, turning, and profile machining; and with multiple grades, they can meet the machining needs of materials such as steel, stainless steel, cast iron, and high-temperature alloy.
|
|
 |
|
