Blade
Blades, impellers and turbine discs are the key parts of aero engines, which account for about one-third of the manufacturing volume of the whole machine, and are the largest number of parts in the engine. The blade is a typical overall complex structural parts, the parts are large in size, thin in wall, high in dimensional accuracy and surface quality, the selection of difficult-to-machine materials, poor overall manufacturability, difficult processing, the machining process should be matche...

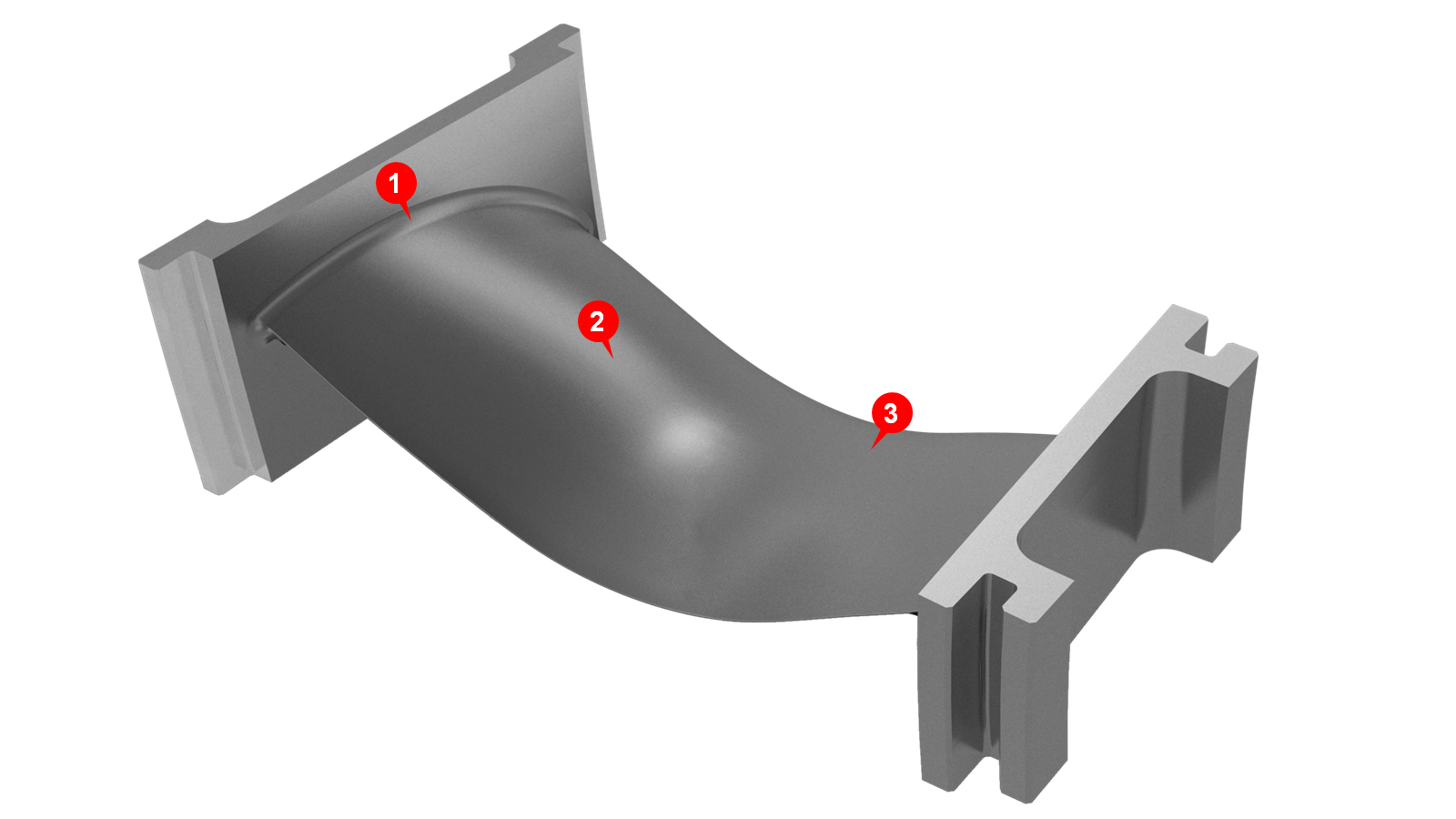

- 1. Blade Root/Blade Profile Rough Milling
- 2. Blade Root/Blade Profile Finish Milling
- 3. Blade Body Profile Milling
SN300
Suitable for high-performance machining of high-temperature alloys such as high-temperature alloy engine power components in the aerospace industry and cobalt-chromium alloy parts in the medical industry;
The optimized circumferential relief angle treatment reduces cutting heat, increases the tool’s wear resistance, and ensures the quality of the cutting surface;
The unequal tooth pitch cutting edges reduce resonance, provide excellent anti-vibration capabilities, and improve the material removal rate and the tool’s service life;
The new fine-grained substrate combined with the highperformance AlTi-based coating achieves a perfect combination of high chipping resistance and high wear resistance;
A professional 5-edge design has been added, aiming to achieve a productivity that exceeds that of 4-edge endmills.
STB200
1.Suitable for semi-finish and finish of blisks
2.The taper void avoidance design and the vibration suppression design,and suitable for large suspension processing.
3.Sultra-fine cemented carbide and special coating, high wear resistance,longer tool life.
4.High precision profile, Radius tolerance士0.0lmm, Tapertolerance士3′.
STB200
Suitable for specialized machining of impellers and blade disks made of stainless steel, titanium alloy, and high-temperature alloy;
The taper clearance design and vibration suppression design are suitable for deep machining with large overhangs;
The special tool design combined with a high-performance substrate and a special coating results in high machining efficiency.
 |
 |
 |
 |
SN200
Suitable for high temperature alloys (Inconel 718, GH 4169, etc.) and stainless steel materials
Special edge design，guarantees high rigidity and excellentanti-vibration ability.
Special disposing of endmill cutting edge，improves edge strength and guarantees surface quality.
|
|
|

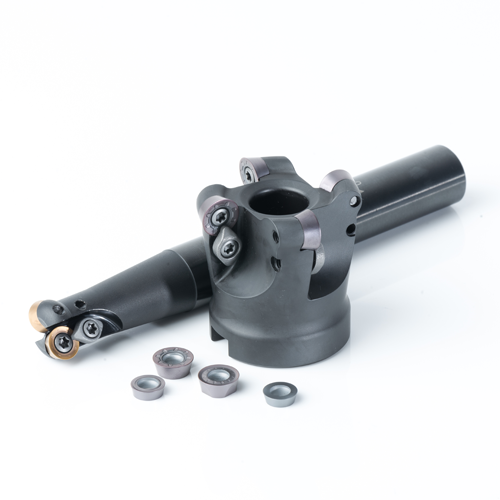

RP+MPS100
1.Patented rotation-mimicking structure with arc-shaped locking mechanism ensures smoother indexing..
2.Special high-strength cutting edge design withstands machining under unstable conditions.
3.Multiple chipbreaker types (SF/SM/SH) adapt to diverse machining conditions.
4.Special tool body material enhances strength and machining stability.
5.New grade GMM7130 enhances high-temperature wear resistance and edge toughness.
