Solution | Titanium Alloy Structural Components Solution

Titanium alloys have high strength, low density, and corrosion resistance, and are widely used in aerospace, energy, medical and other fields. In the aviation industry, titanium alloy structural components are mainly used in key parts such as aircraft fuselage and wings, and are an important backbone in the aviation industry.
Titanium alloy short beams are typical structural components of titanium alloy. In order to solve the problem of processing titanium alloy structural components for customers and improve processing efficiency, GESAC has developed high-quality cutting tools and launched efficient solutions for titanium alloy structural components.

Solution Introduction

Product highlights introduction

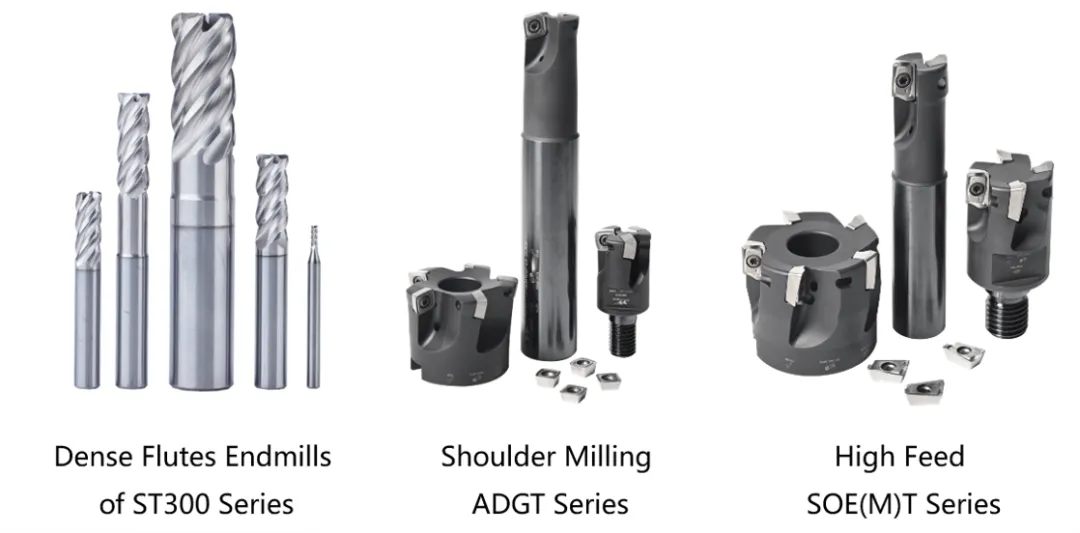

Dense Flutes Endmills of ST300 Series

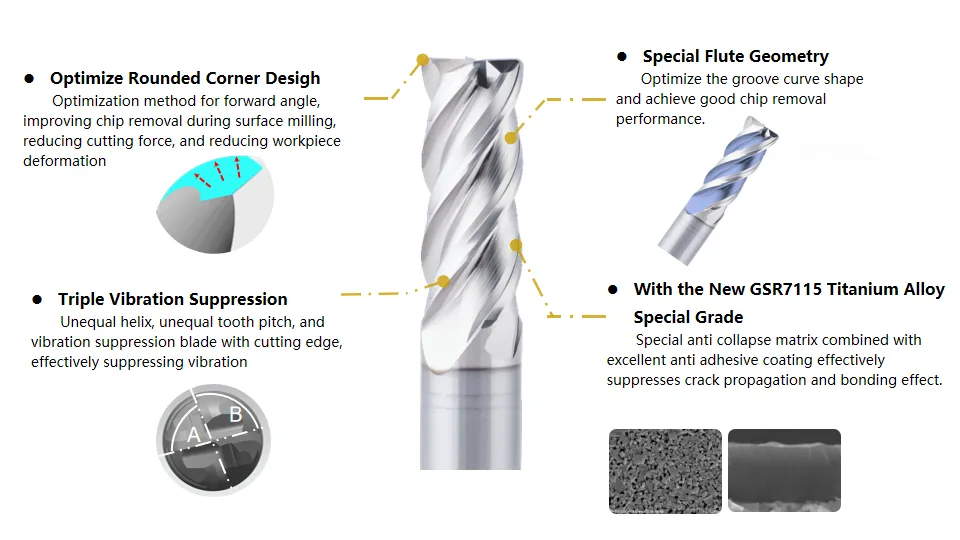

The all-new ST300 titanium alloy high-performance end mill can significantly improve the processing efficiency of titanium alloy. In order to meet different working conditions, three types of cutting tools have been released: 4-blade flat head, 4-blade rounded head, and 5-blade rounded head. There are 7 models and 325 specifications, with the following design features:

Shoulder Milling ADGT Series

The ADGT shoulder milling insert is mainly used for semi precision machining and precision machining of aviation titanium alloy structural parts, which can significantly improve the accuracy of machining perpendicularity and the surface quality of bottom machining. The specifications include AD10/12/18, with complete fillet settings and three types of tool body forms: core shaft, cylindrical straight shank, and replaceable tool heads. It meets the requirements of face milling, cavity milling, side milling, and plunging, and has the following design characteristics:

High Feed SOE(M)T Series

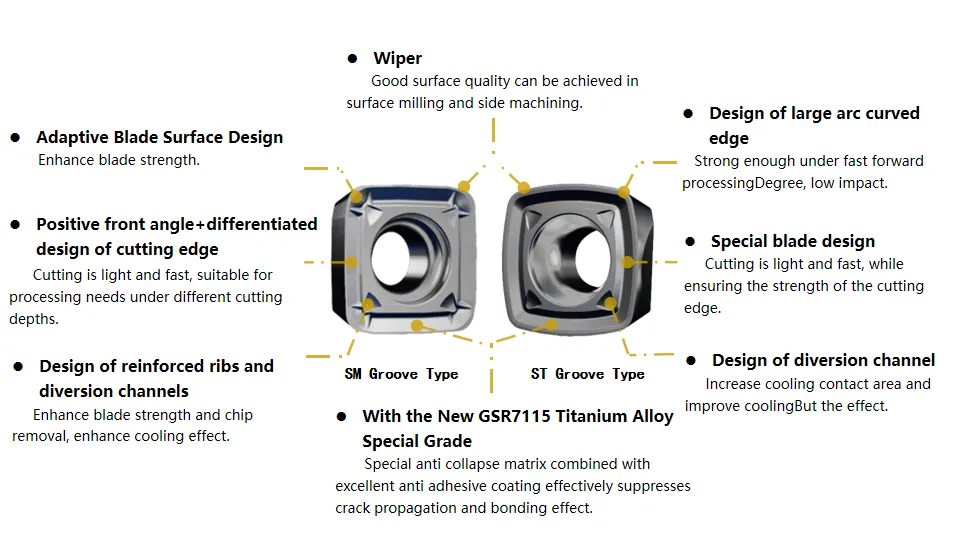

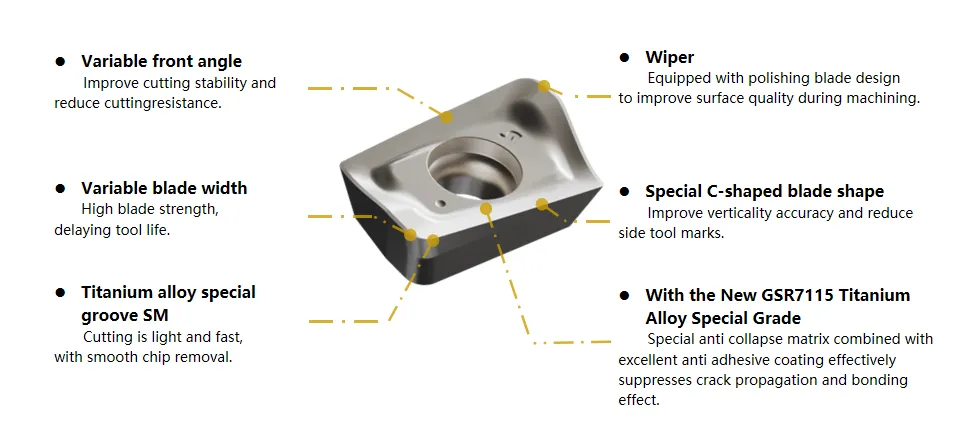

The SOE (M) T high feed milling insert is mainly used for rough machining of aviation titanium alloy structural components. There are two types of inserts, SO09/12, which are equipped with SM universal groove type and ST groove milling special groove type, respectively. The SM groove type is synchronously equipped with precision grade SOET, and both groove types are equipped with three types of cutter body forms: core shaft type, cylindrical straight shank type, and replaceable cutter head, which can achieve full coverage of fast feed working conditions and meet the processing conditions of face milling, cavity milling, slot milling, slope milling,etc., with the following design characteristics:

Applications

GESAC's new titanium alloy structural component solution is another improvement and breakthrough for GESAC in the titanium alloy processing field. Among them, the ST300 series titanium alloy high-performance end mills, ADGT shoulder milling inserts, and SOE (M) T high feed milling inserts have excellent titanium alloy efficient and high-quality processing performance, providing more and higher quality tool choices for the current efficient processing of titanium alloy structural components.

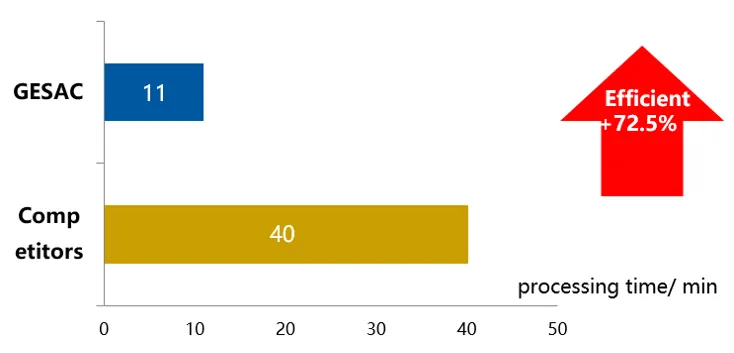

Case1：Titanium alloy short beam-TC4- precision milling sidewall

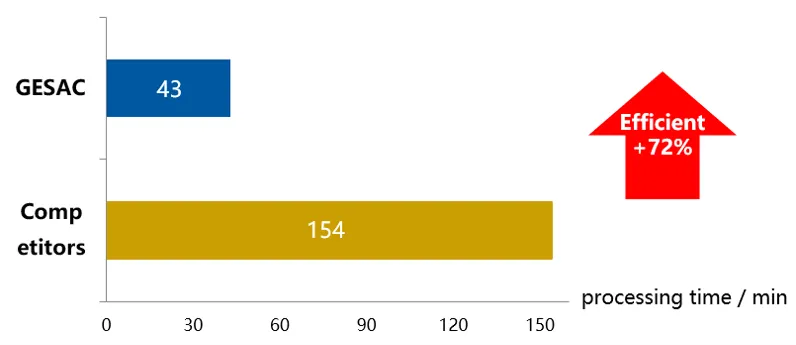

Case2：Titanium alloy short beam-TC4-Precision milling of web plate

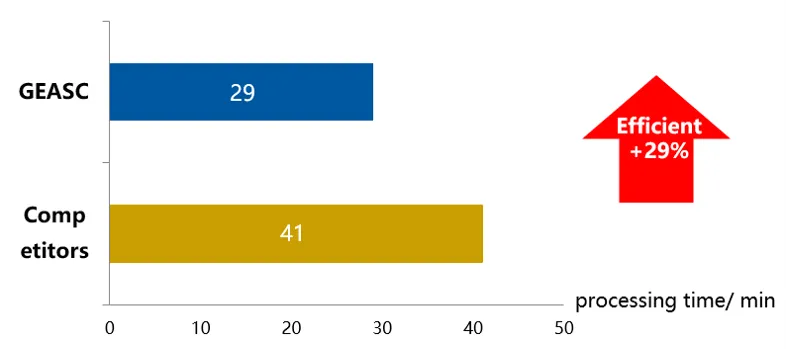

Case3：Titanium alloy short beam -TC4 -cavity rough milling

For detailed information of titanium alloy structural parts solutions, please click the link to check the previous tweets 《Solution | Titanium alloy structural parts solutions》.
