Solution L Train Wheelset Solutions

Solution l Train Wheelset solutions

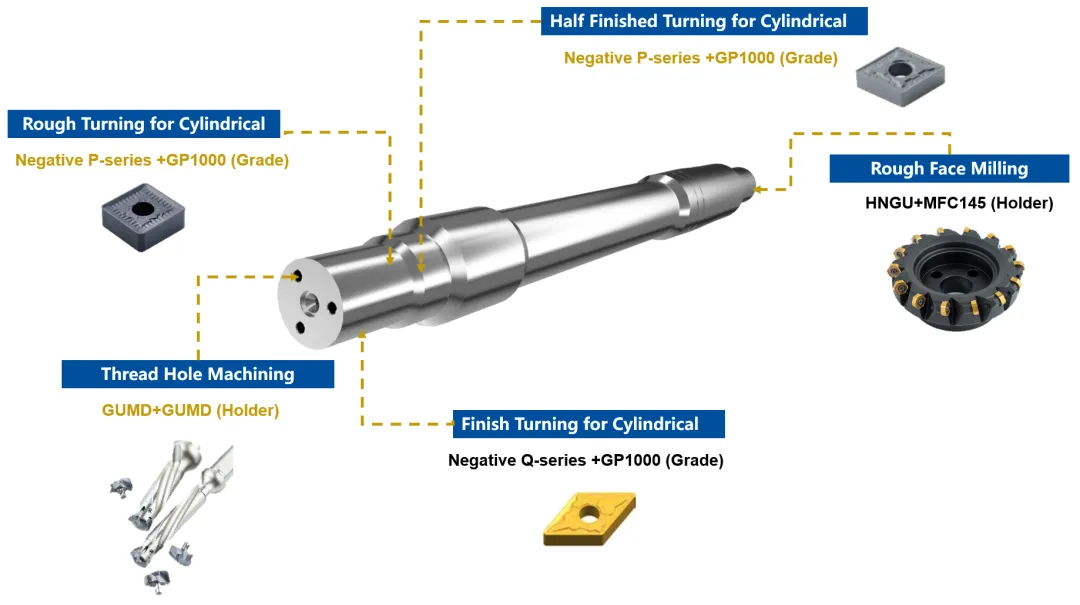

The wheelset is the part of the rolling stock that is in contact with the rail and consists of the left and right wheels firmly pressed on the same axle.

The manufacturing materials of train wheels are cast steel, forged steel, etc., and the material grades are mainly AAR-B/AAR-C, ER7, CL65/CL70 and so on. These materials have high strength, high toughness and good fatigue resistance, which can meet the needs of long-term high-speed train operation.

Trains are usually made of alloy steel (40 steel, 50 steel, 60 steel) or stainless steel (304L or 316L). These materials have high strength, corrosion resistance and wear resistance, ensuring that the train remains stable at high speeds and can withstand long-term use and wear.

01 Solution Introduction

02 Product Highlights

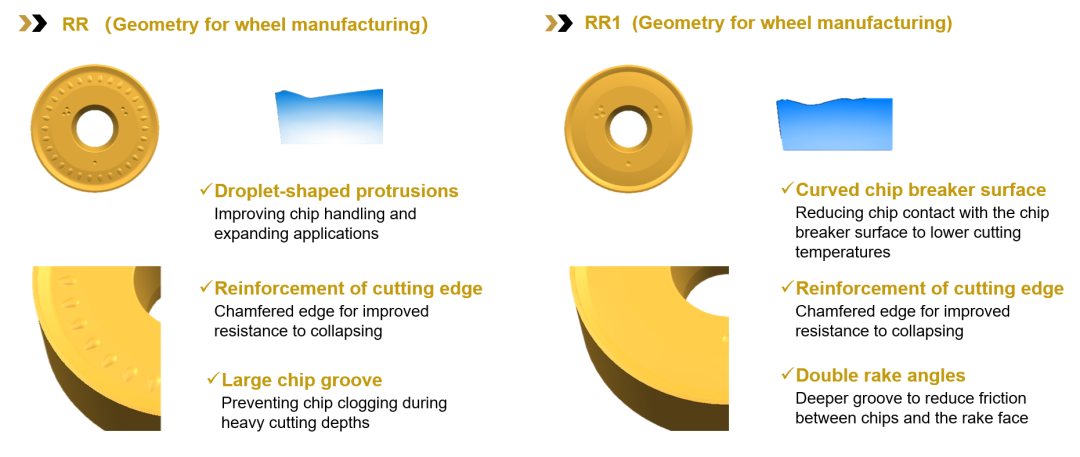

RCMX Special tool for train wheels

• Applied to train wheel processing

• Rich product specifications, maximum cutting depth of more than 8mm

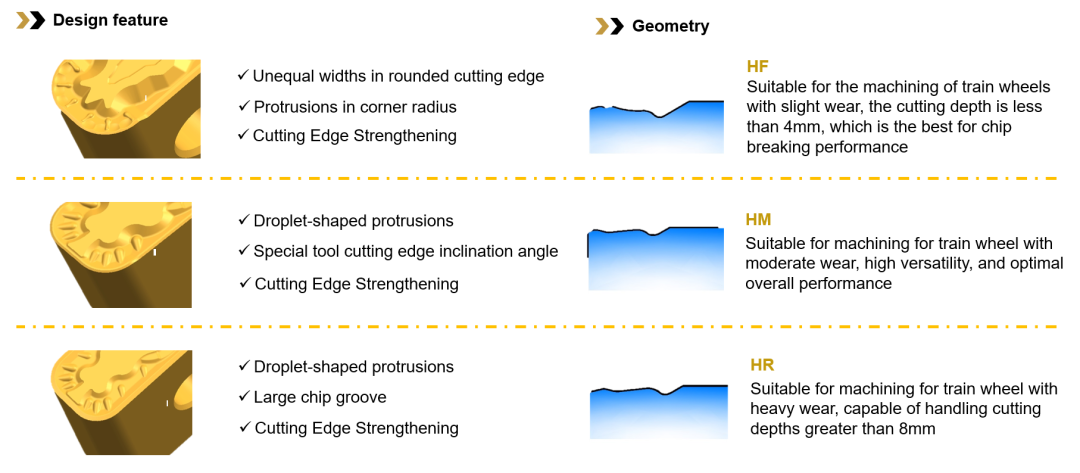

LNMX Special tool for train wheels

• Applied to train wheel repair

• The new heavy-duty heat insulation coating is used to cover various wheel materials processing

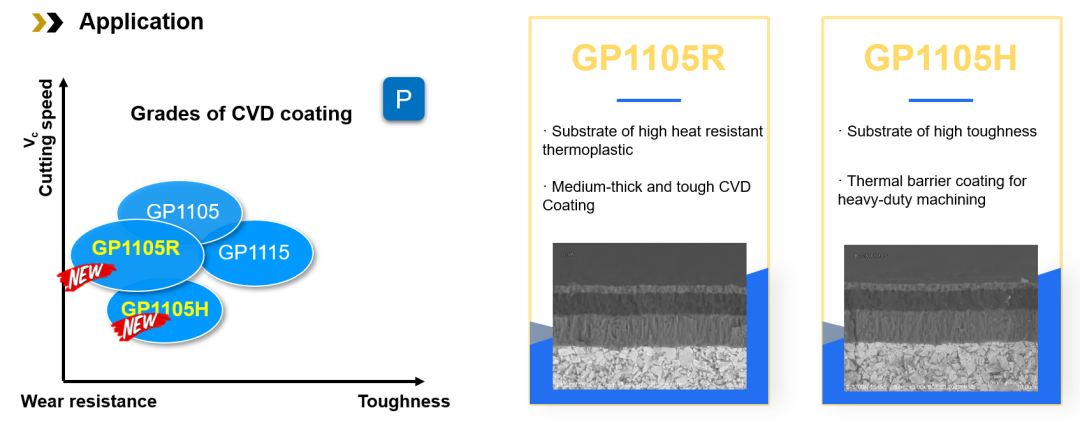

Introduction of specialized materials

03 Processing Examples and Conclusions

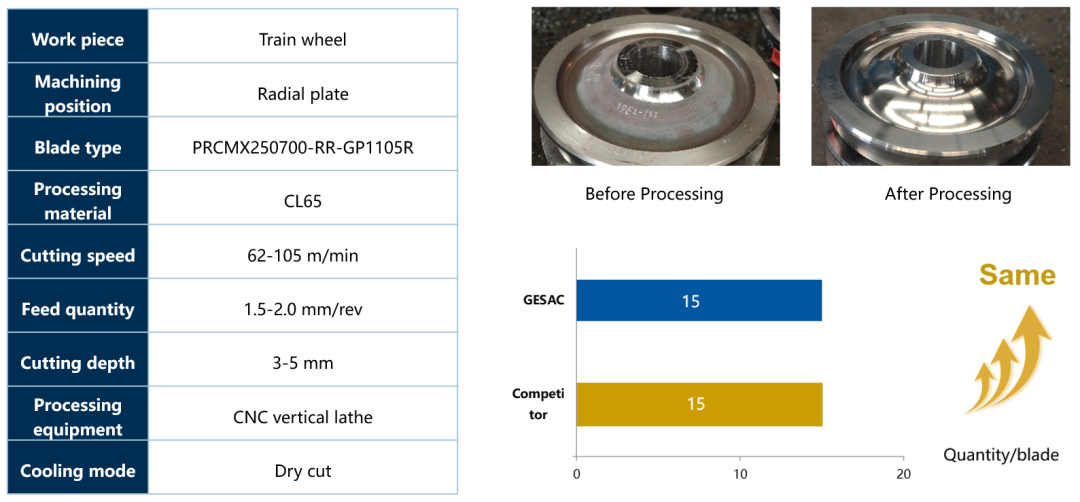

Case1：Train spoke plate processing

This case is a train spoke plate processing case in the rail transit industry. The processing difficulties are as follows:

• The white surface quality of the train wheel blank is poor, there are many hard points in the oxide skin, and the processing allowance is uneven;

• The rigidity of the on-site machine tool is poor, the ratio is adjusted in real time according to the processing situation, the feed changes are large, and the wear resistance of the tool is high.

Under the same test conditions, the average number of workpiece processed by our tools is equivalent to that of imported brands.

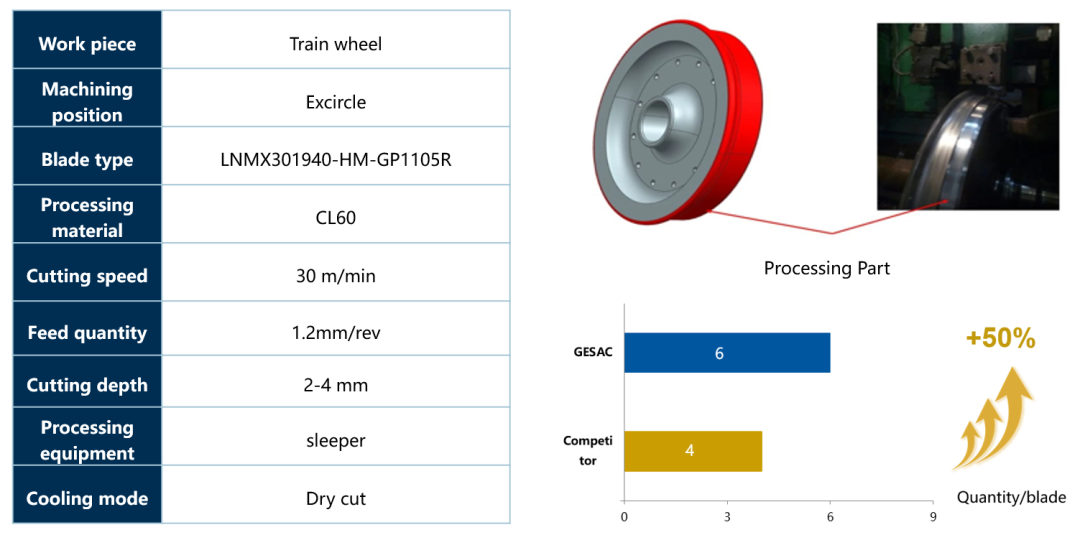

Case2：Train wheel repair round processing

This case is the rail transit industry train wheel repair round processing. The processing difficulties are as follows:

• The train wheel to be repaired has poor surface quality due to wear, and the processing allowance is uneven；

• The transition arc of the rim and the tread connection, the margin is about 2-4mm, and the blade is easy to break chips; Under the same test conditions, the average number of workpiece processed by our tools is better than that of imported brands.

Post time: 1月-04-2024
