Product Presentation | Efficient And Economical Milling Tools

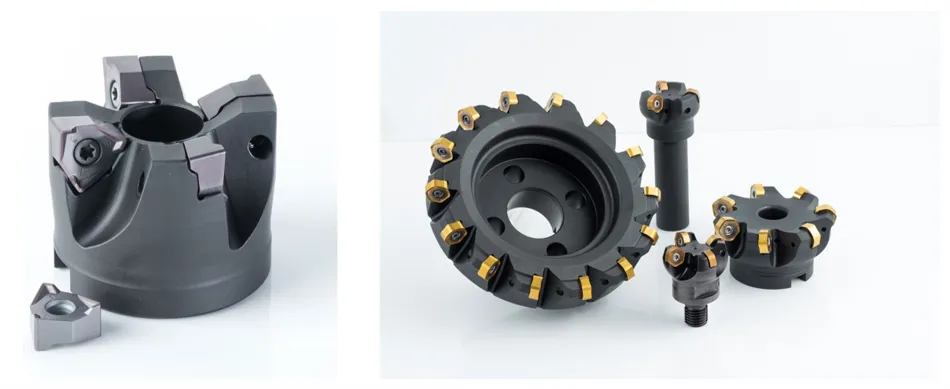

Our newly launched a new non-abrasive grade universal negative milling blade, negative 6-edge square shoulder milling WNMU series and negative 12-edge face milling HNKU series, square shoulder milling , groove milling, surface milling and high feed milling efficient processing. Rich specifications and grades match to meet the processing needs of different users. In the automotive, general machinery and other fields of roughing, to achieve more economical and efficient cutting.

01 Negative 6-edges square shoulder mill -WNMU series groove design

Unique tip design

Raised tip with large front Angle design to ensure sharp edge and improve blade strength.

Finishing edge design

The bottom cutting tool has a finishing edge to meet the requirements of good surface quality.

GL+GM+GH

groove type

Light, medium, and heavy-duty groove type combination to meet different processing needs.

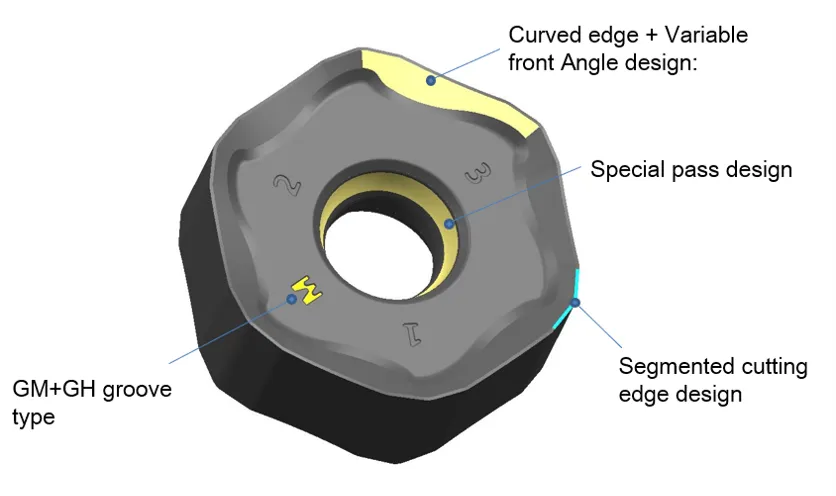

02 Negative 12-edges face milling -HNKU series groove design

	Segmented cutting edge designOne blade can be matched with three main deflection bodies.
Curved edge & Variable front Angle designThe front Angle changes with the cutting depth, reducing the cutting resistance and balancing the whole blade life.

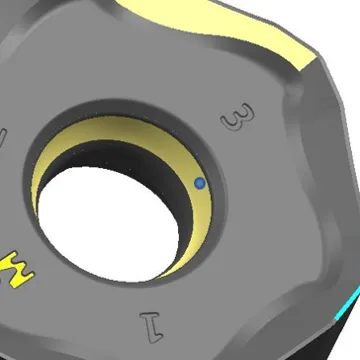

	Special pass design Increase the contact area between screws and blade holes to improve blade installation fastness.
GM+GH groove type Medium and heavy-duty groove type combination to meet different processing needs.

03 Comprehensive milling grade matching

Paired with P, K, M, and S milling grades, achieving comprehensive coverage of processed materials. With the addition of GPM7120 high-performance grade, the life span of steel material processing is significantly improved.

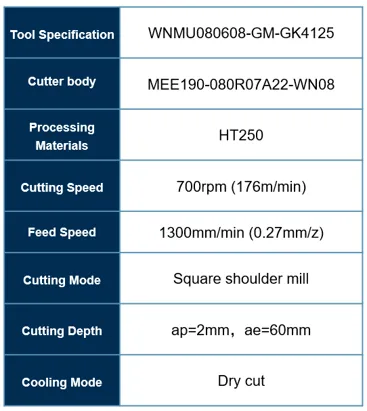

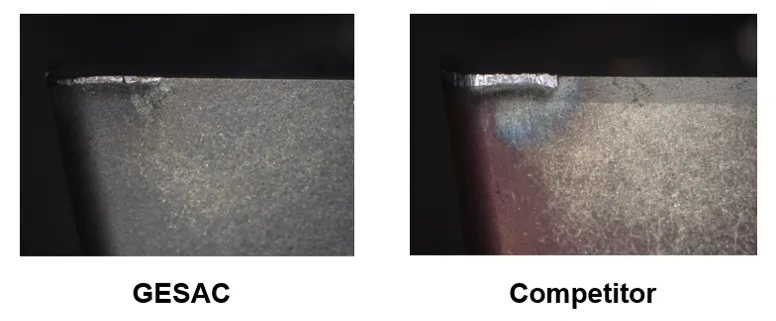

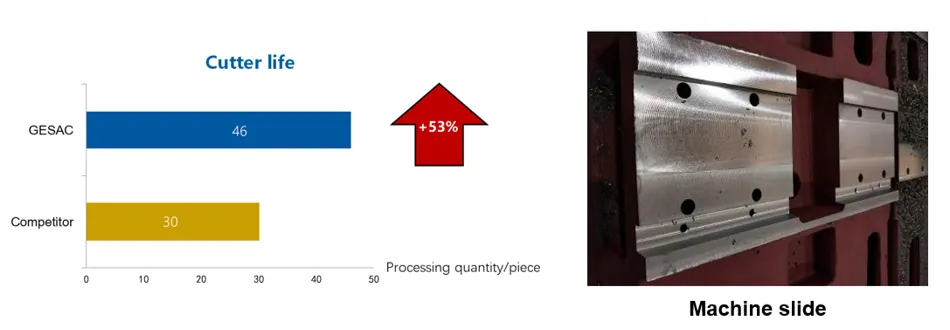

Case:Machine tool sliding table side wall processing

The workpiece material is gray iron HT250, hardness 200HB, processing of this part has higher requirements for the wear resistance of the tool, the use of GESAC φ80mm specification of the cutter body, WNMU blade with GK4125 brand, effectively solve the processing problem.

Using the processing parameters of N= 700rev/min, F=1300mm/min, ap=2mm, ae=60mm, Our WNMU tool processing life of 46 pieces, competitive product life of 30 pieces, life is better than competitive products.

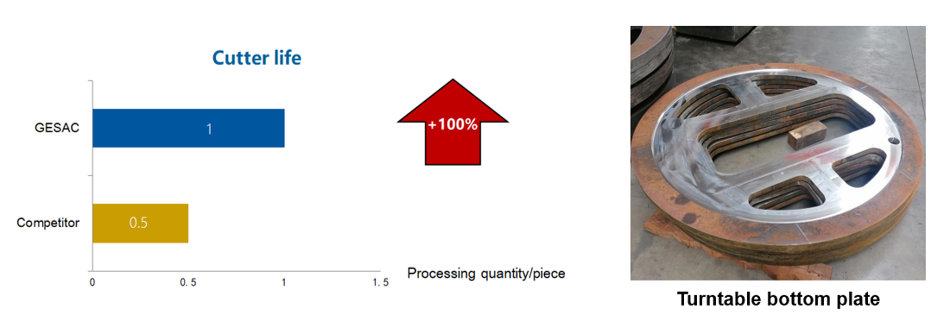

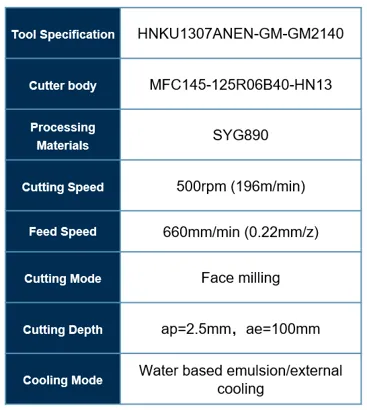

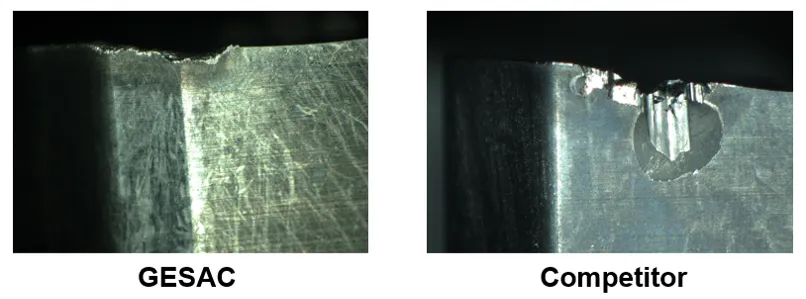

Case:Rotary table bottom surface milling rough processing

Test workpiece material is steel SYG890, hardness 42HRC. The test workpiece clamping is unstable, and there are many hollow parts, the processing vibration tool is serious, and the blade is easy to break. GESAC uses HNKU blades with GM2140 for processing tests.

Using the processing parameters of N= 500rev/min, F=660mm/min, ap=2.5mm, ae=100mm, Only 0.5 pieces of competitive products can be processed, and the tool needs to be changed during processing.Our HNKU tool can be completely processed 1 piece, saving processing time, and the life span is 100% higher than that of competitive products, which has a high cost performance.
